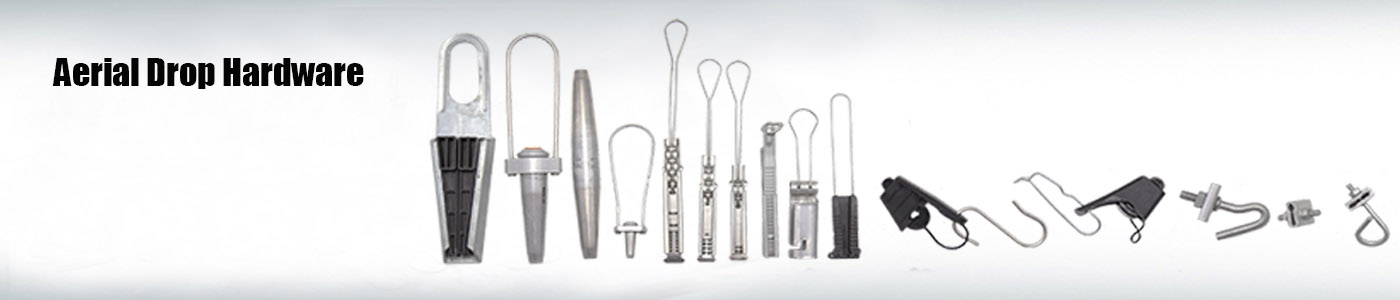

Aerial Drop Hardware
Among the aerial drop hardware products (alt name: drop line hardware, pole line hardware, drop wire hardware, aerial drop materials, aerial drop accessories), the drop wire clamps are rich in types and are our most competitive products. They are widely used in aerial pole line /aerial drop wire projects. Drop wire clamps for 1, 2 pairs telephone line drop wire, CATV drop wire clamps for figure 8 coaxial drop cable/messenger drop wire, plastic wire clamp for fiber optical wire clamp, and SWA cable cleats for support of cables when attaching them to buildings, high structures.

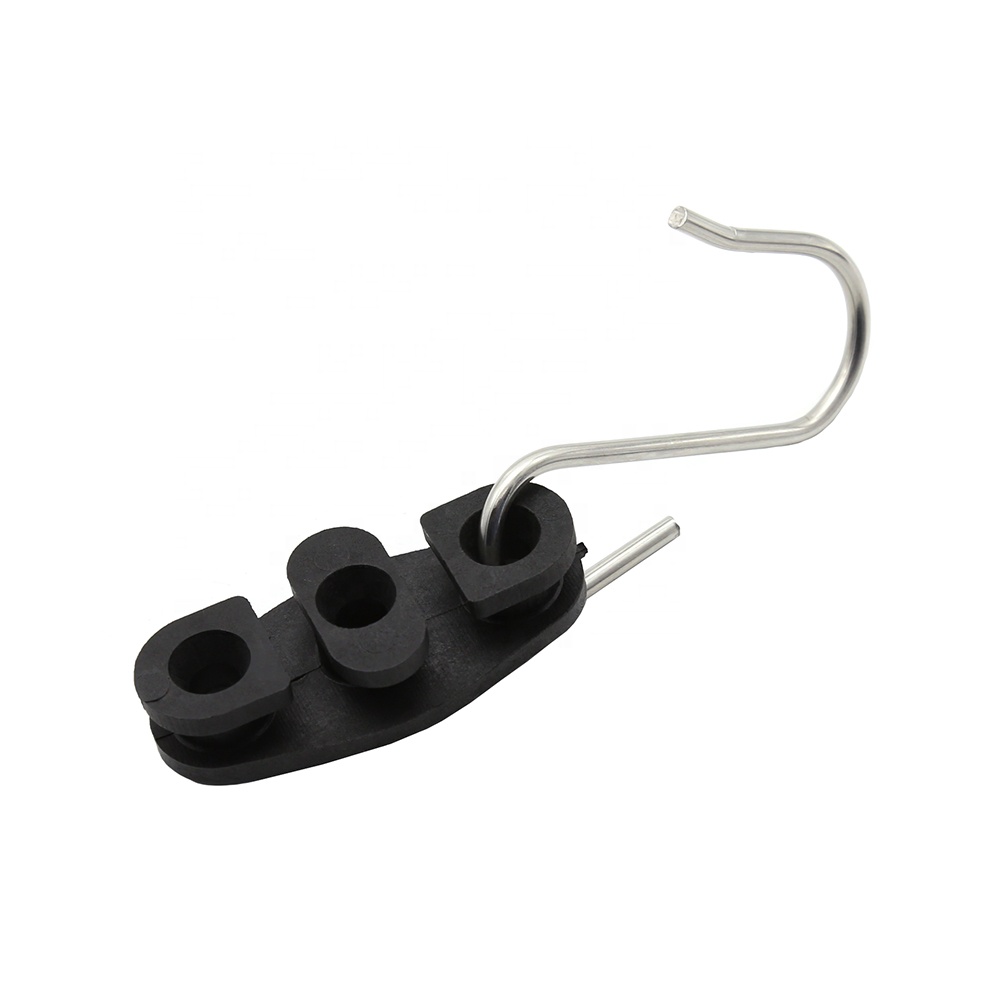

Drop Wire Clamps / Fiber Optical Wire Clamp
Aerial drop wire clamps are used to secure aerial drop wires to poles and other structures. They are typically used in the telecommunications and power industries, to secure aerial drop wires to poles and other structures. The clamps come in a variety of sizes and materials, including aluminum, steel, and plastic. They are generally designed to be easy to install and remove, without the use of tools. Aerial drop wire clamps provide good support for one and two pair telephone drop wires and work with span clamps, drive hooks, and various drop attachments. The drop wire clamp is used to clamp the communication cable. The bail of the wire clamp is set on span clamps, drive hooks, house hooks, and various drop attachments, and the wire clamp is used to fix the telephone line, the network cable, the CATV cable, and the fiber optic cable.
| Parts No. | Description | Material | Shim type |
| CWC-2PRAS | Drop wire clamp for 1-2 Pair | Aluminum5052 | Serrated |
| CWC-2PRSS | Drop wire clamp for 1-2 Pair | SS304 | Serrated |
| Parts No. | Description | Material | Bail wire |
| CWC-ECATV | CATV Drop wire clamp | Aluminum5052 | SS304 |
| Parts No. | Description | Material | Hook |
| CWN | Fiber optical wire clamp | Plastic | Galvanized |
| Parts No. | LSF cleat code | Cable range Min-Max | |
| C3-C20 | C3LS-C20LS | 5.0 – 50.8 | |
Details Of Drop Wire Clamps
The drop wire clamp is a kind of wire clamp, one end is fixed on a supporting structure (usually a telegraph pole), and the other end is suspended from the middle antenna or wire. It is widely used in many antenna projects, such as ADSS clamp, FTTP clamp, OPGW clamp, Fiber Cable clamp, telephone clamp, network cable clamp, twisted pair clamp, etc.

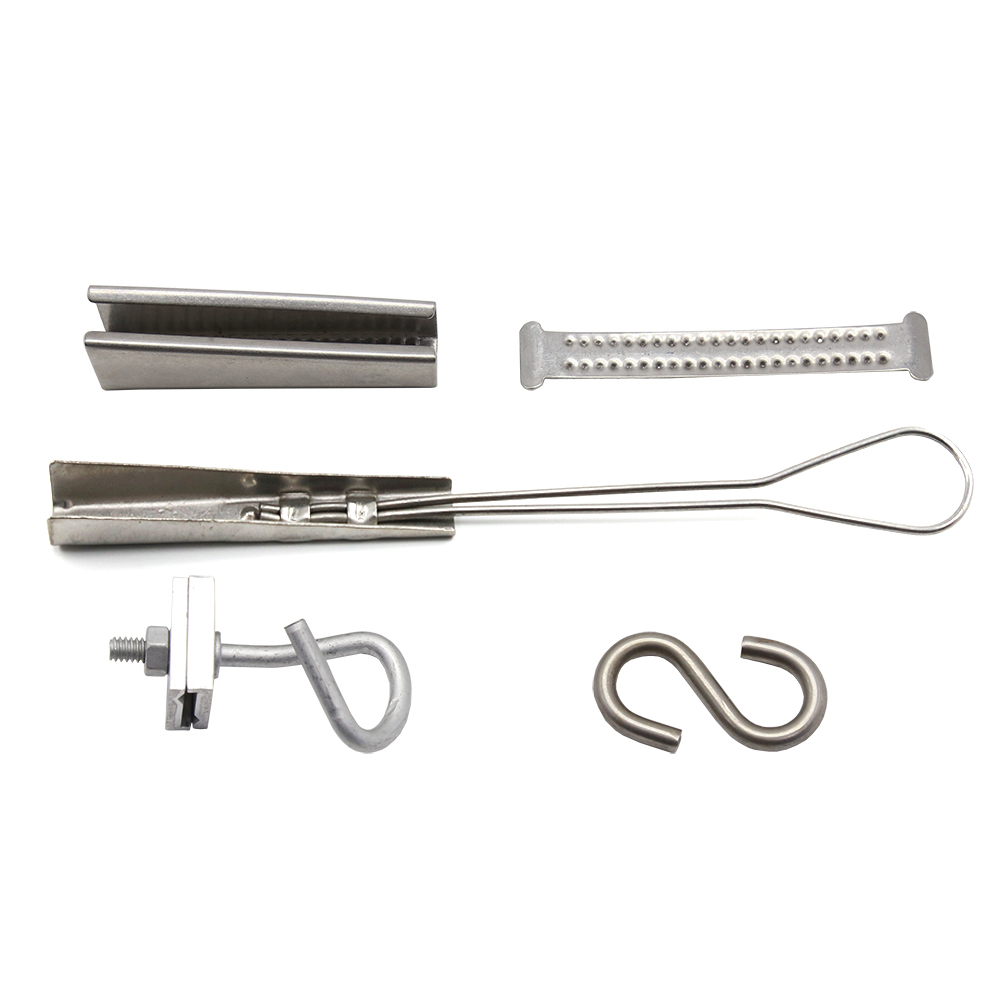

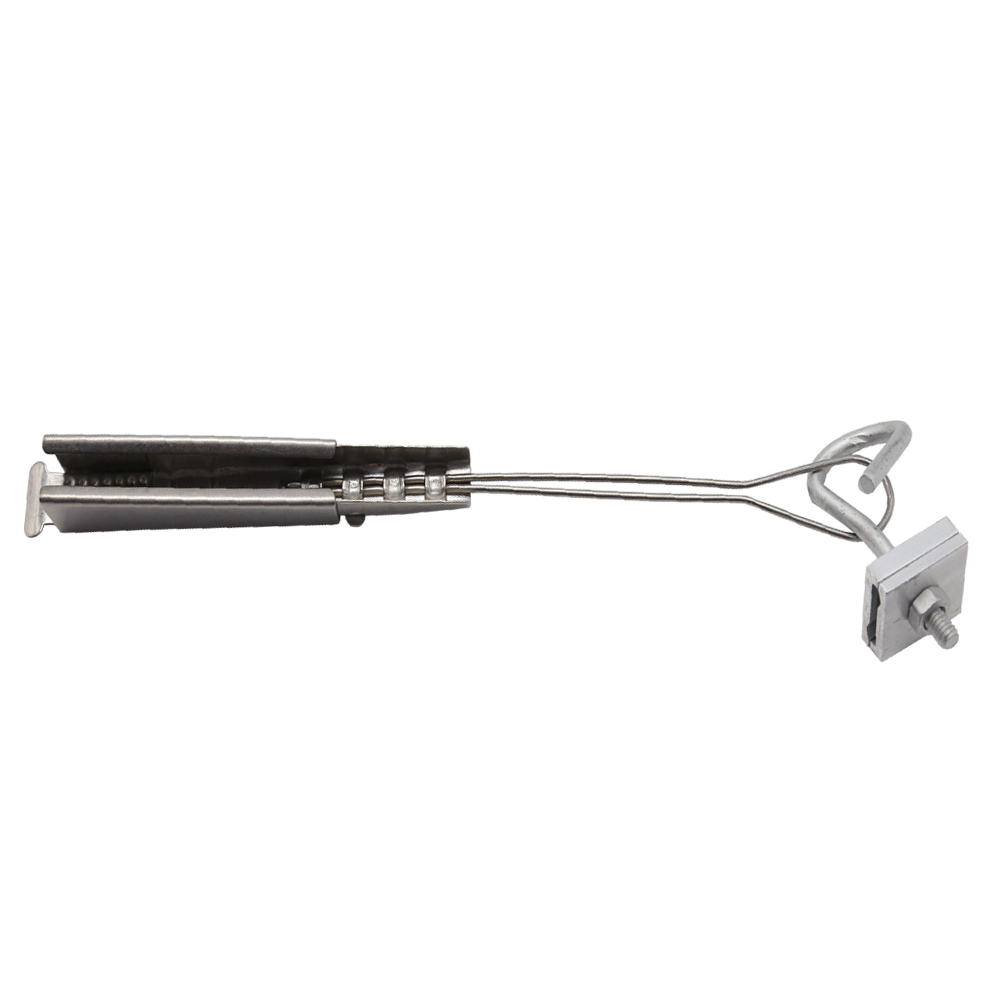

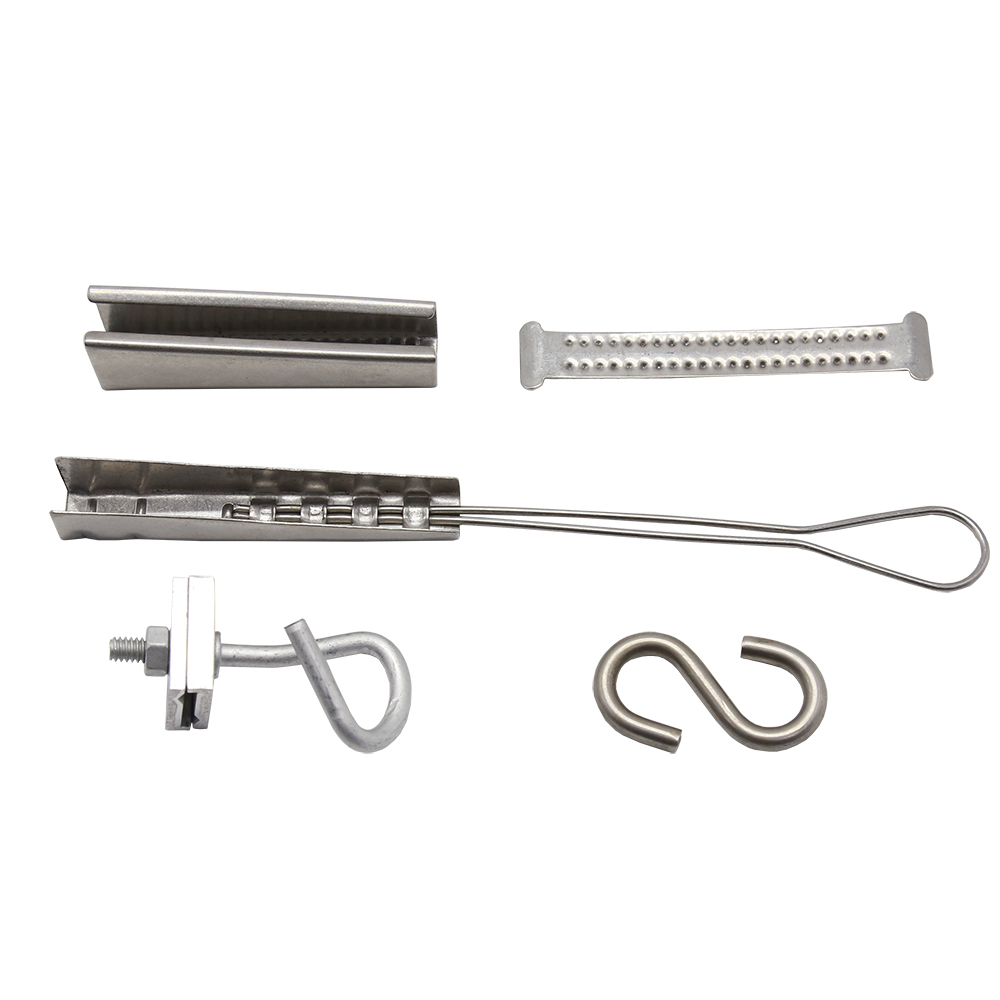

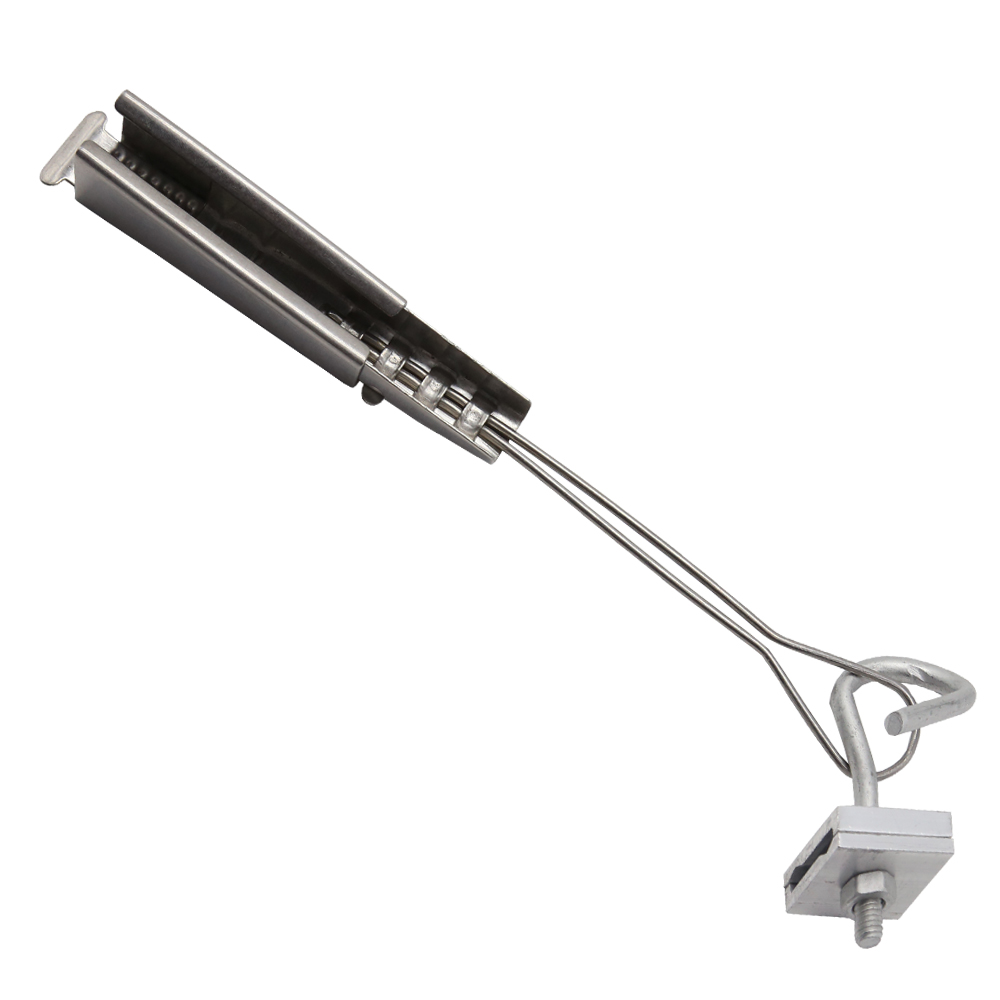

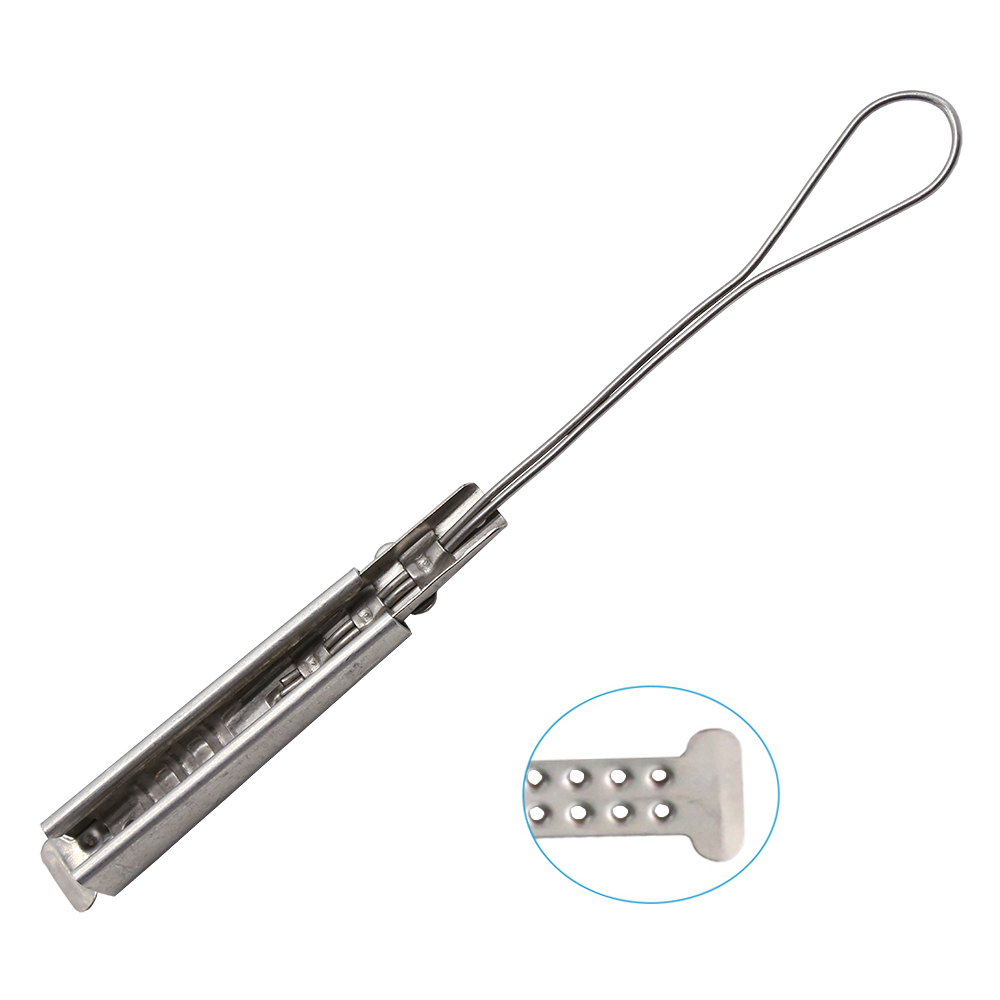

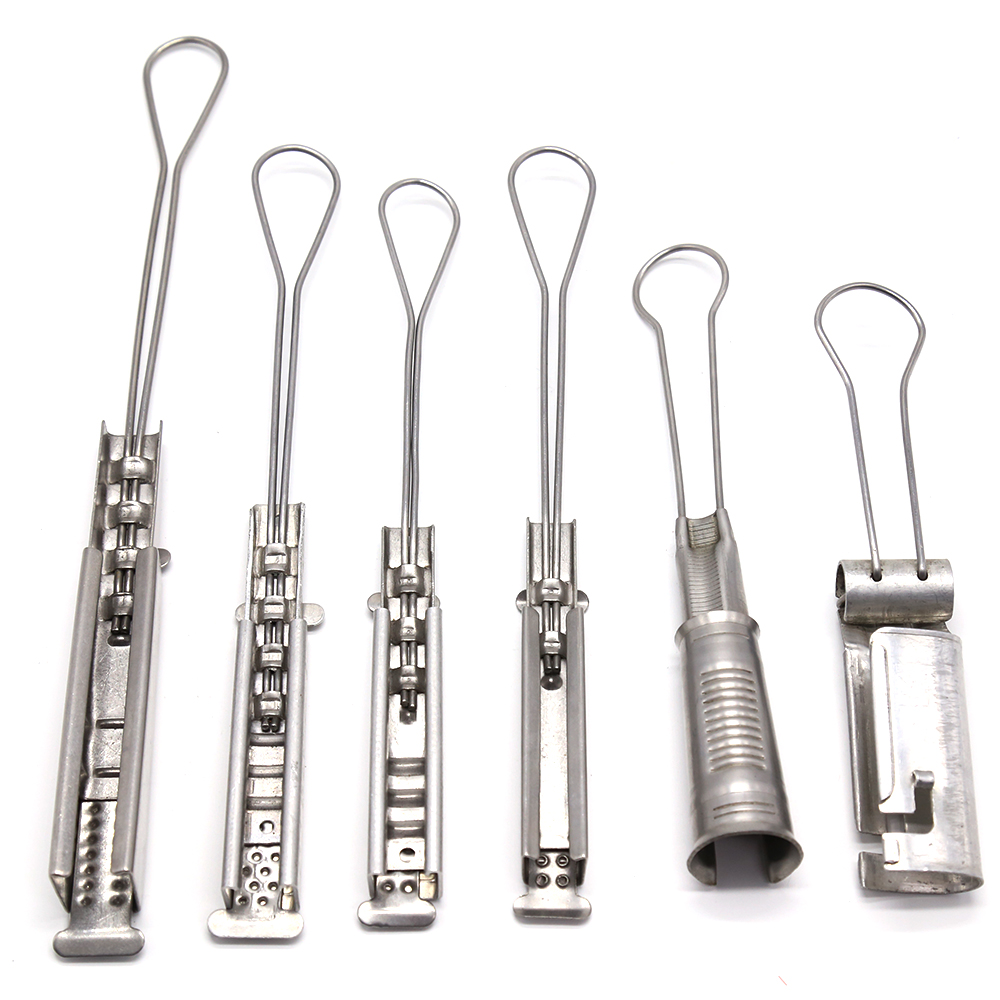

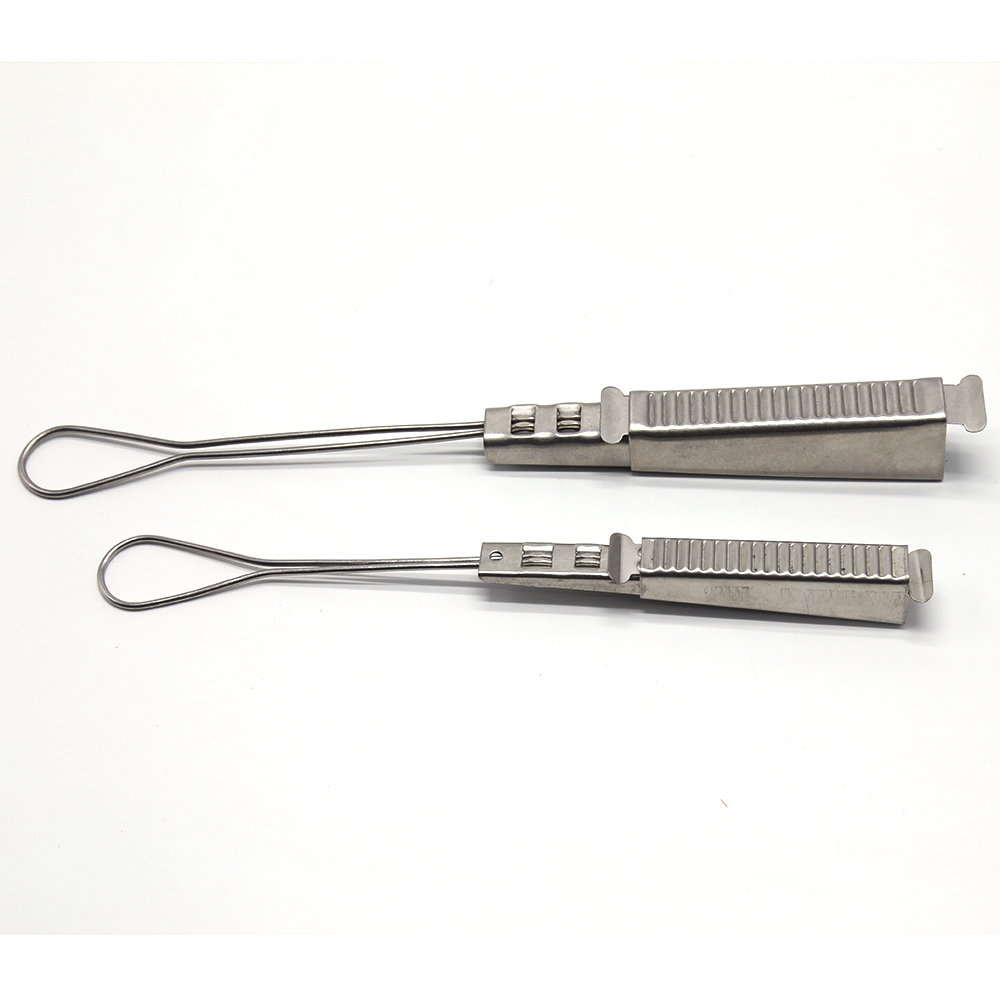

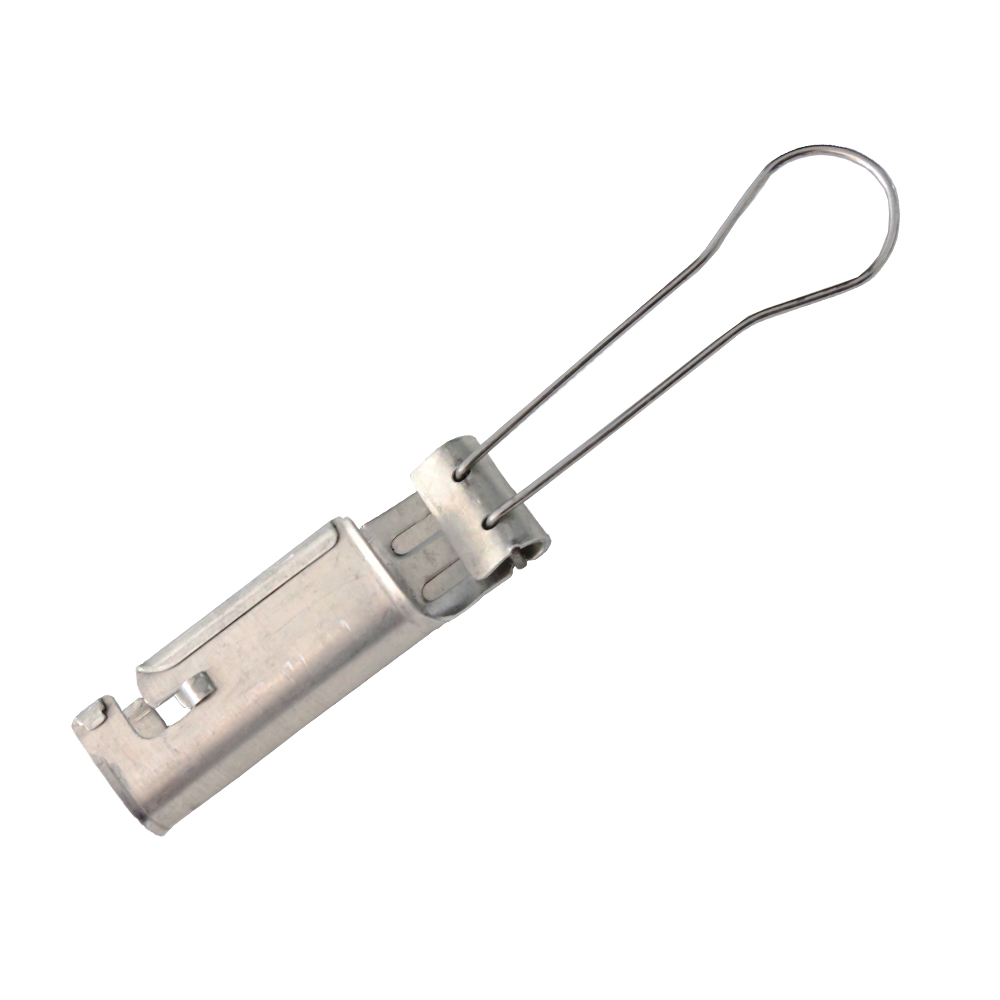

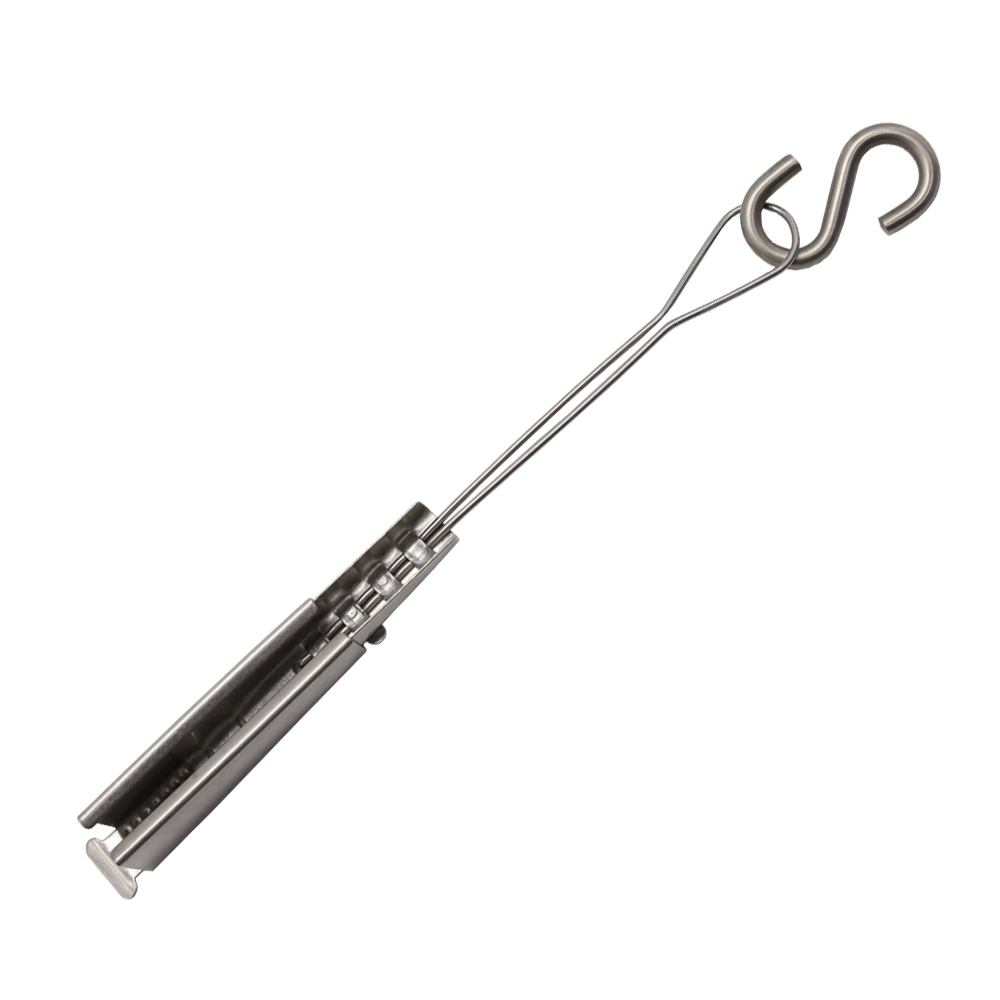

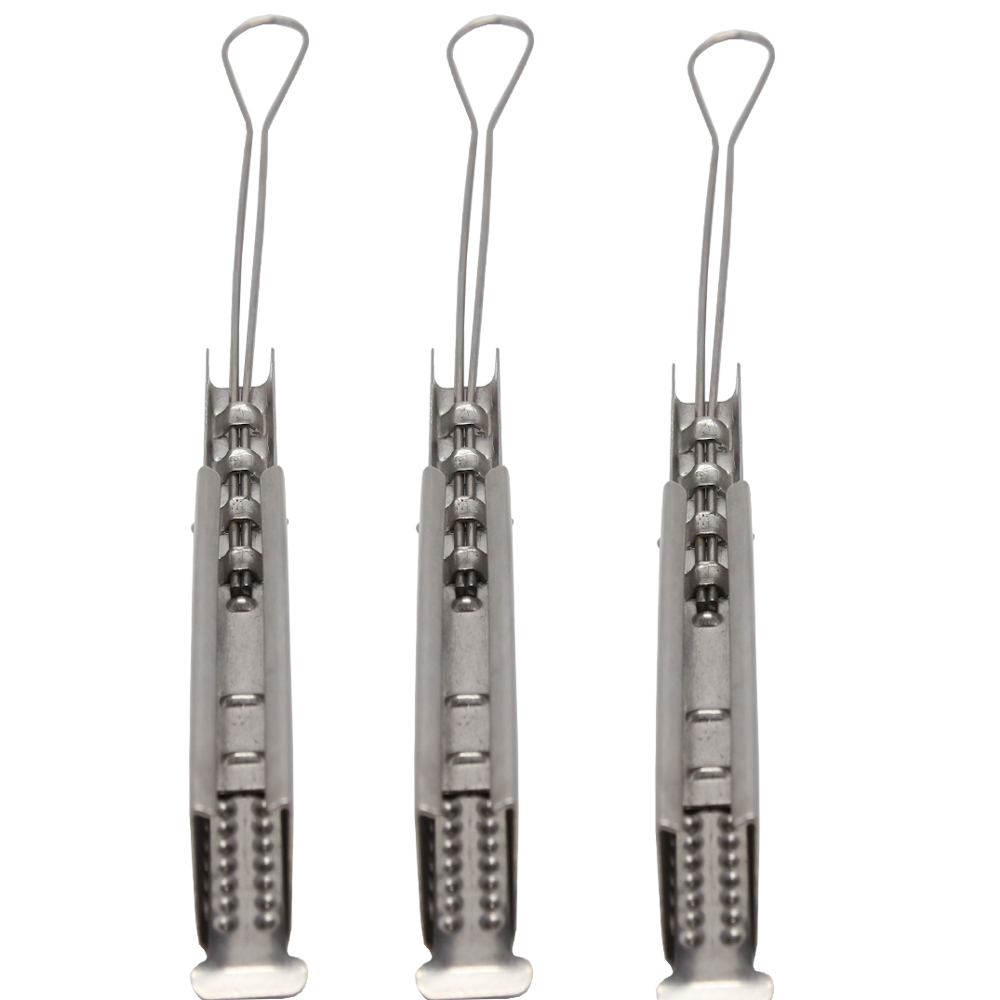

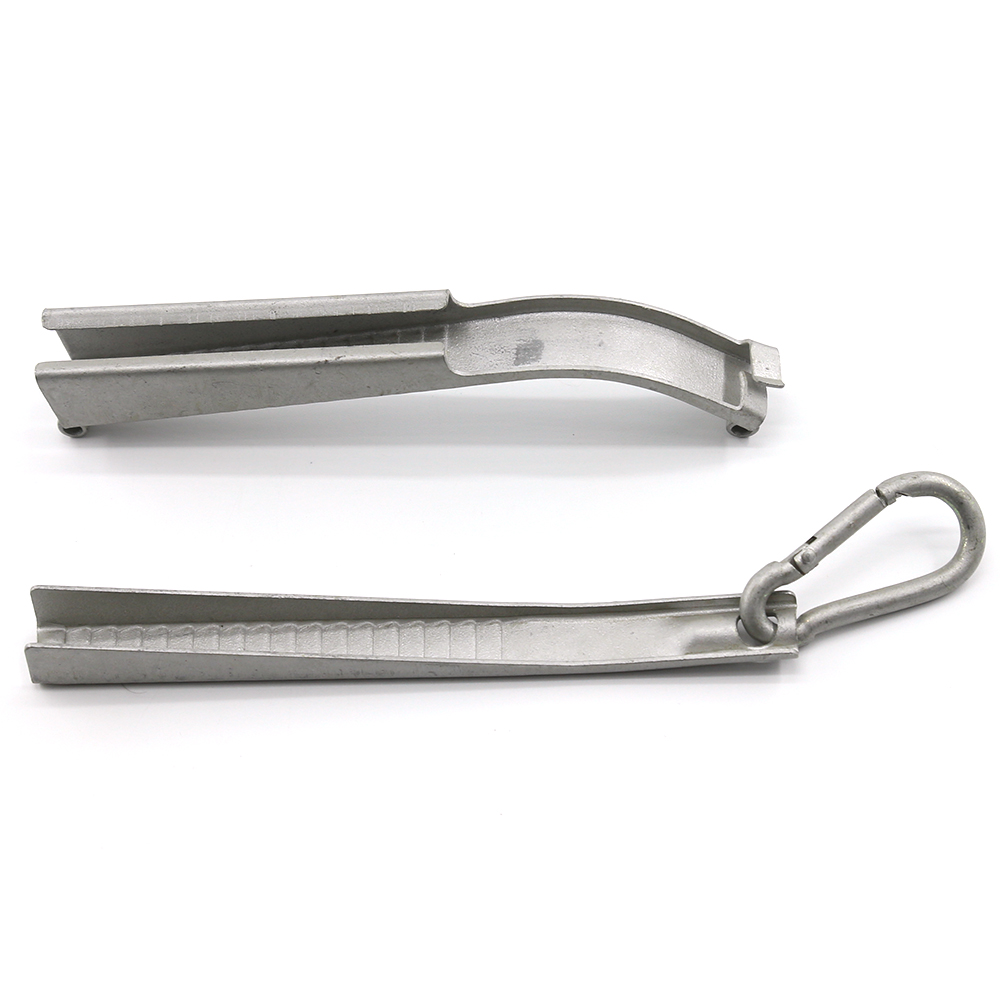

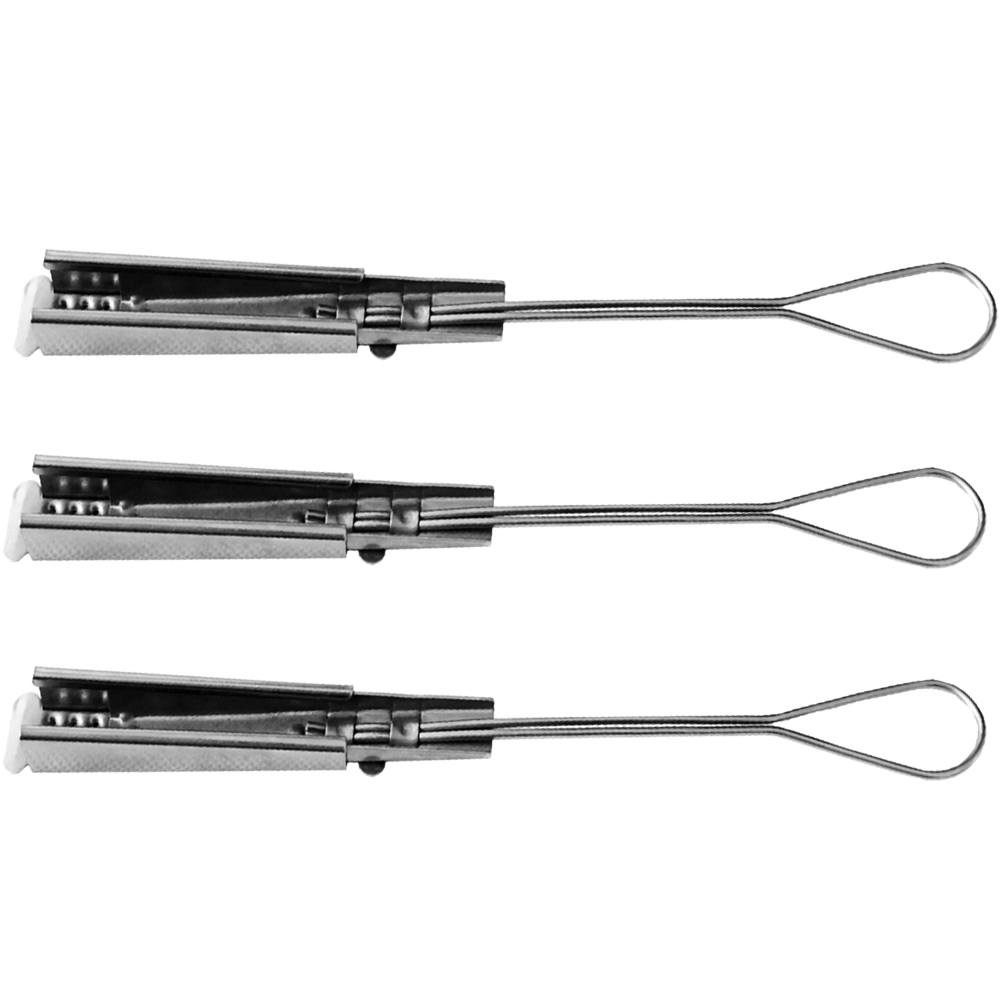

Drop Wire Clamps

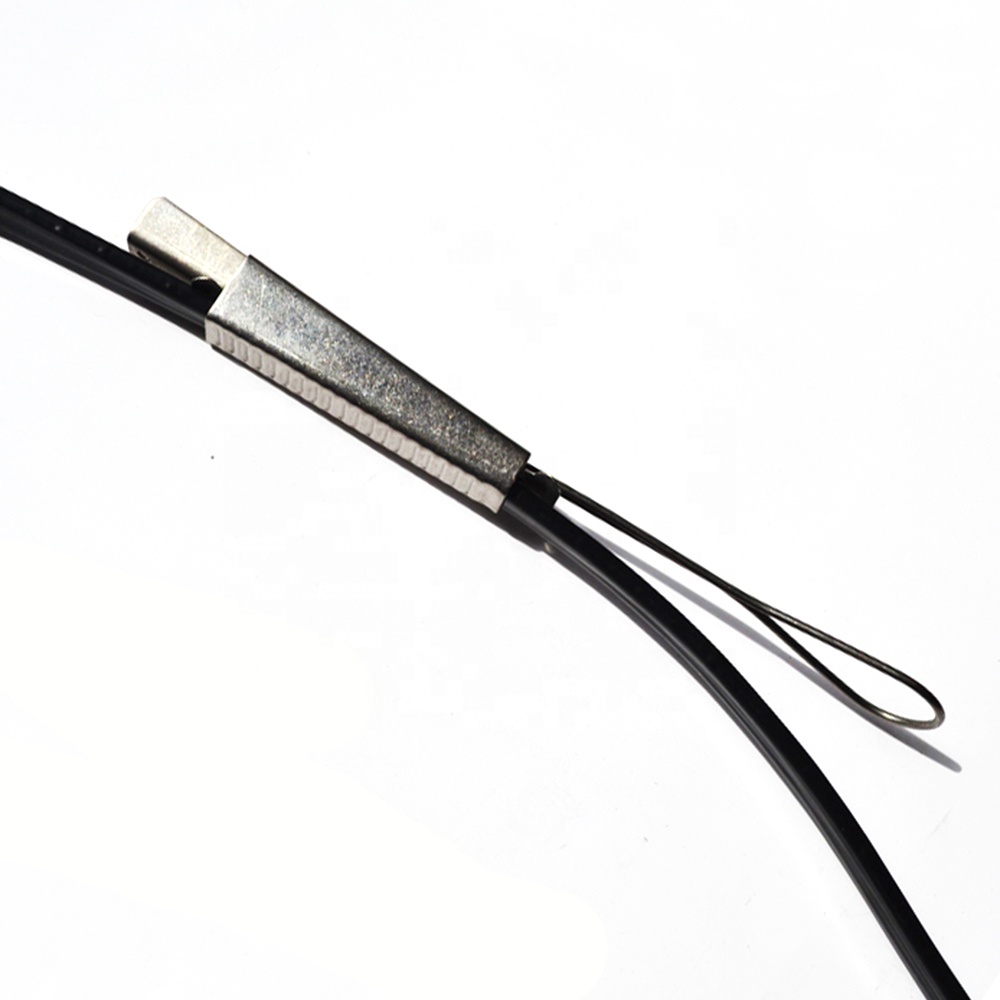

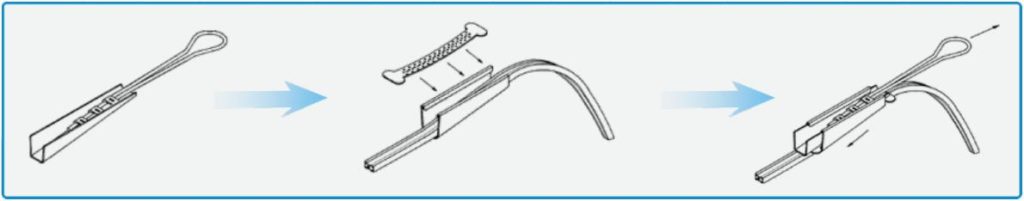

The drop line clamp is usually composed of 3 parts, line clamp, clamp pad, and tail wire. According to different usage scenarios, there will be some differences. The material of the clamp can usually be stainless steel, galvanized steel, plastic, nylon. The material of the clamp pad is generally the same as that of the wire clamp, and there will be different patterns or hollows on the clamp pad. The material of the tail wire will have different wire diameters and materials according to the tension it bears.
| Parts No. | Description | Material | Shim type |

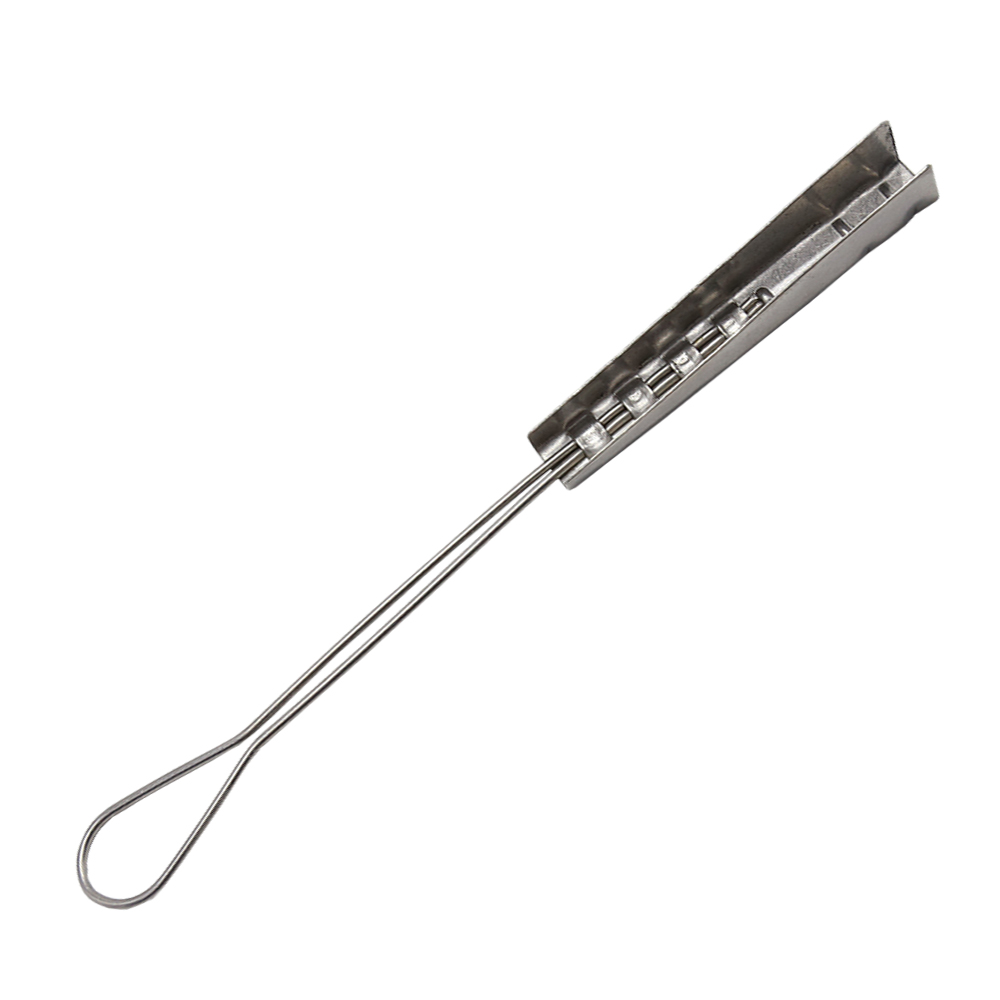

| CWC-2PRAS | Drop wire clamp for 1-2 Pair | Aluminum5052 | Serrated |
| CWC-2PRSS | Drop wire clamp for 1-2 Pair | SS304/SS201 | Serrated |
| Parts No. | Description | Material | Shim type |

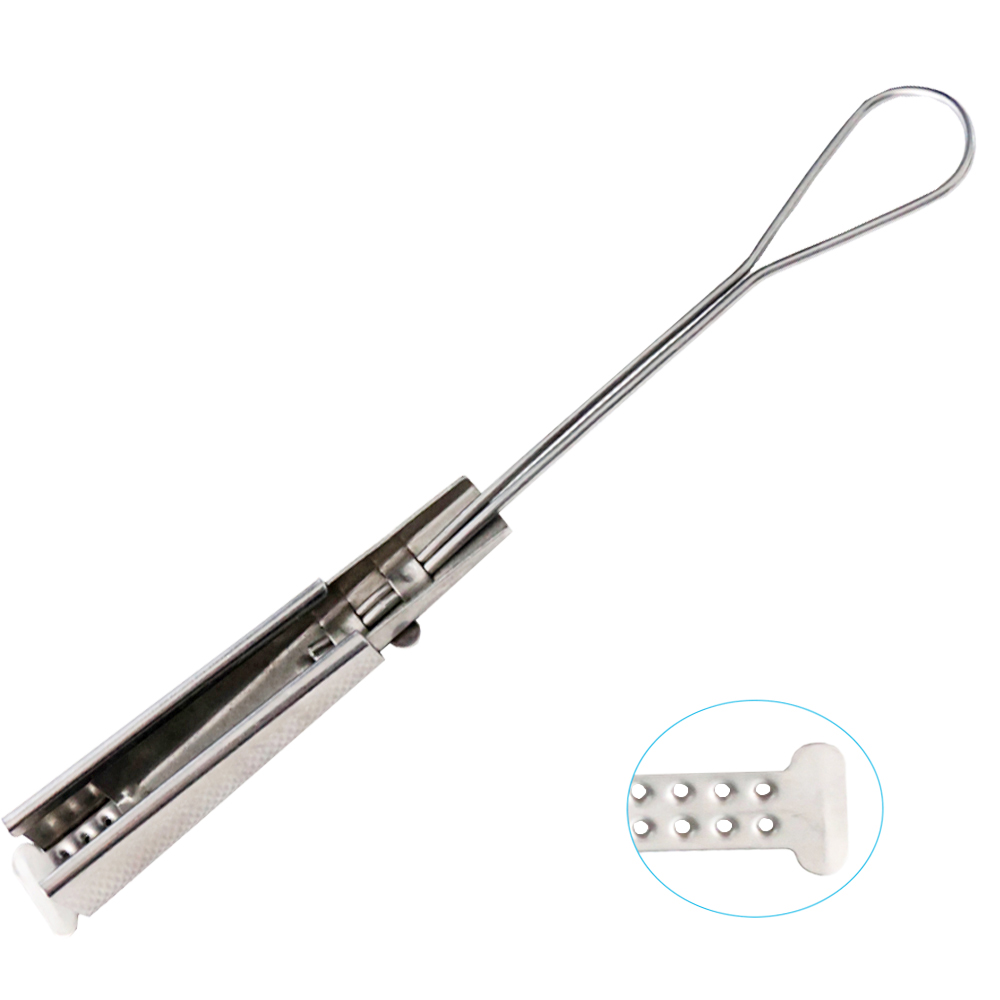

| CWC-2PRAD | Drop wire clamp for 1-2 Pair | Aluminum5052 | Dimpled |
| CWC-2PRSD | Drop wire clamp for 1-2 Pair | SS304/SS201 | Dimpled |
| Parts No. | Description | Material | Shim type |
| CWC-2PRAP | Drop wire clamp for 1-2 Pair | Aluminum5052 | Plastic |
| CWC-2PRSP | Drop wire clamp for 1-2 Pair | SS304/SS201 | Plastic |
| Parts No. | Description | Material | Shim type |
| CWC-6PRAS | Drop wire clamp for 6 Pair | Aluminum5052 | Serrated |
| CWC-6PRSS | Drop wire clamp for 6 Pair | SS304/SS201 | Serrated |
| Parts No. | Description | Material | Shim type |
| CWC-6PRAD | Drop wire clamp for 6 Pair | Aluminum5052 | Dimpled |
| CWC-6PRSD | Drop wire clamp for 6 Pair | SS304/SS201 | Dimpled |
| Parts No. | Description | Material | Shim type |
| CWC-6PRAP | Drop wire clamp for 6 Pair | Aluminum5052 | Plastic |
| CWC-6PRSP | Drop wire clamp for 6 Pair | SS304/SS201 | Plastic |
| Parts No. | Description | Material | Cable type |
| CWC-SF | Drop wire clamp for 1-2 Pair | Q235 | Plastic |
| Parts No. | Description | Material | Cable type |

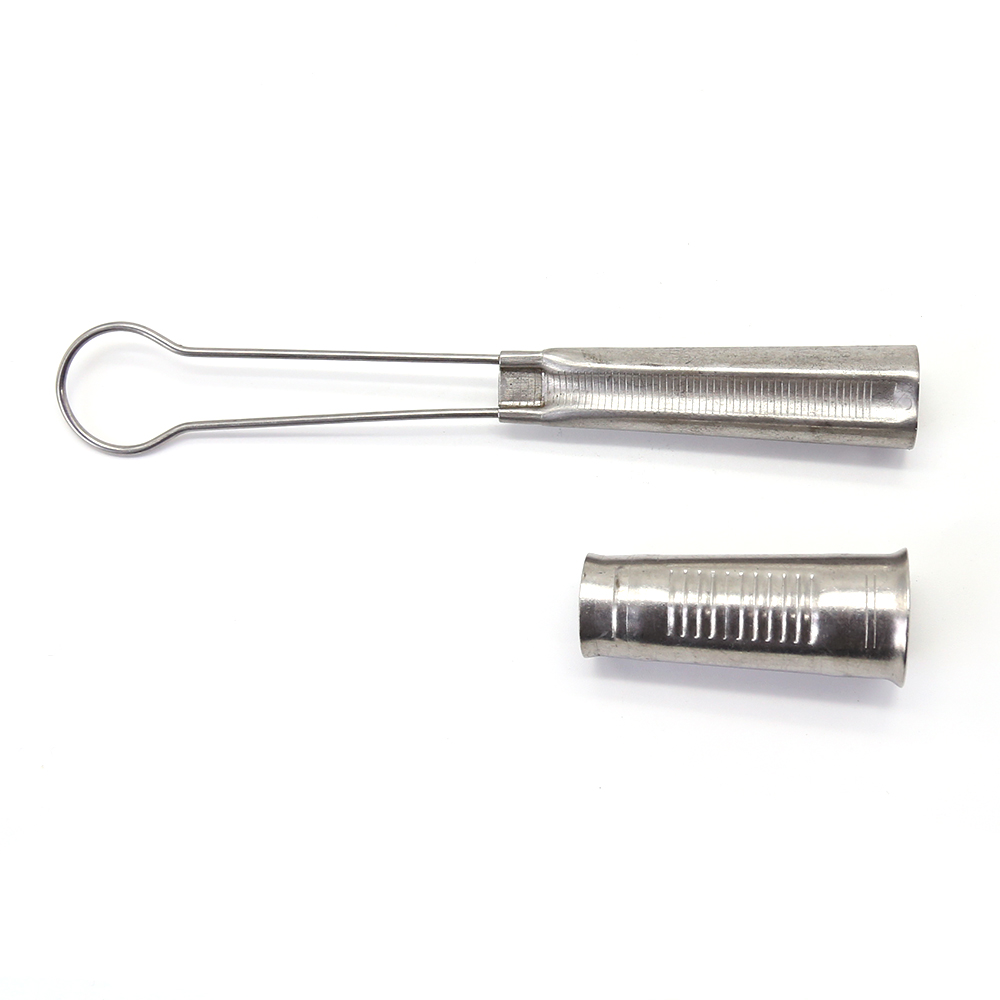

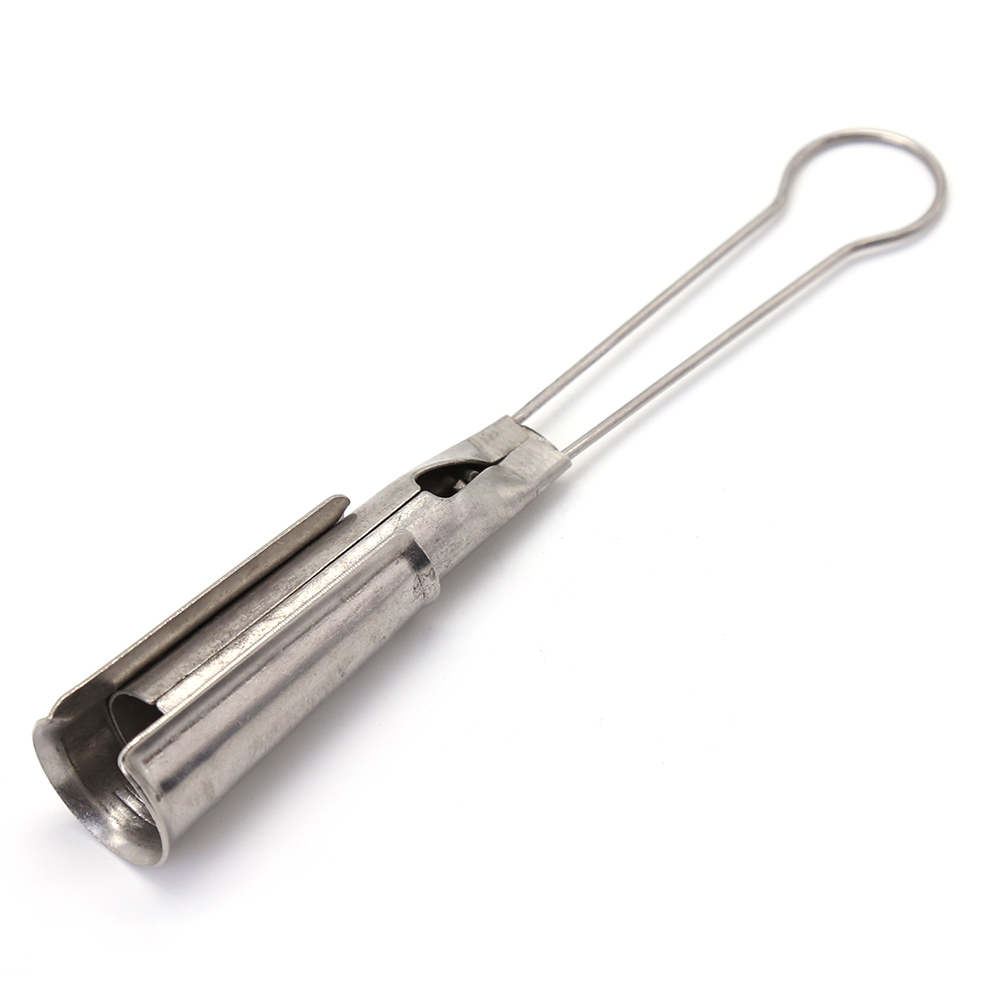

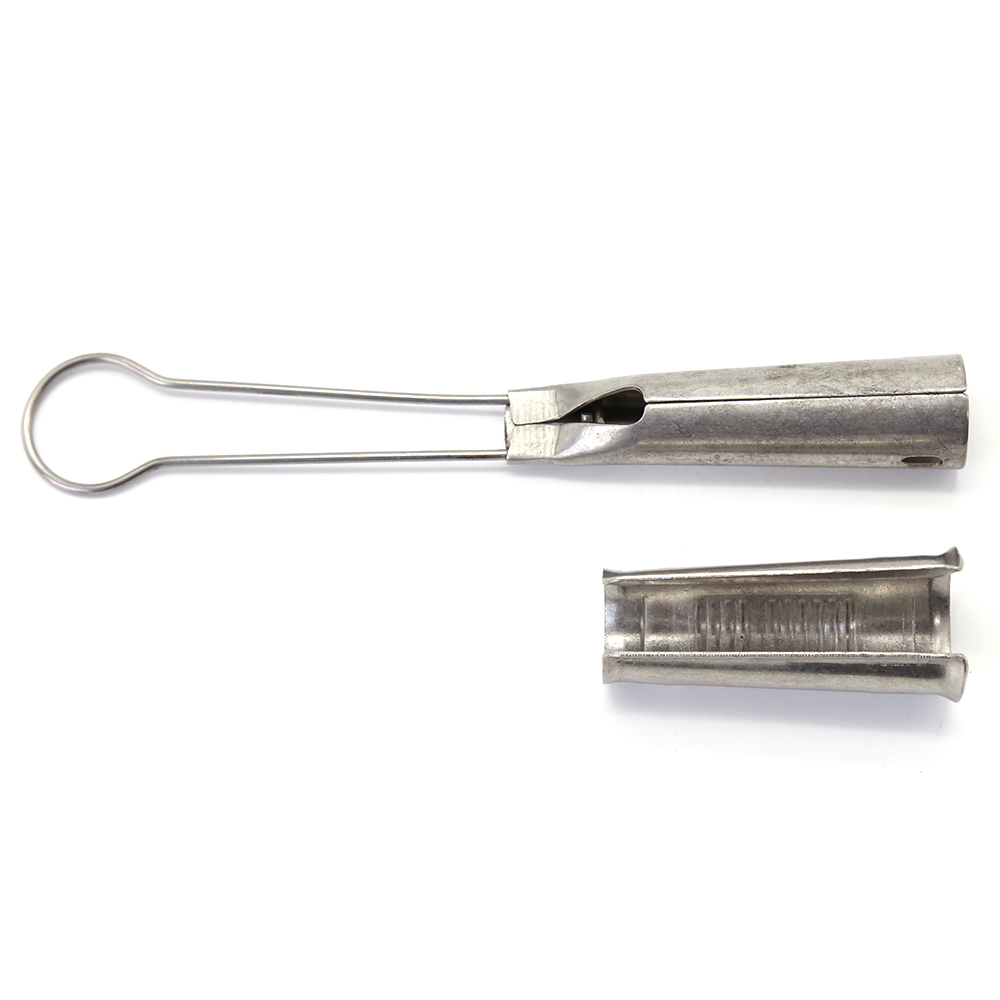

| CWC-SR | Drop wire clamp for round cable | Q235 | Round |

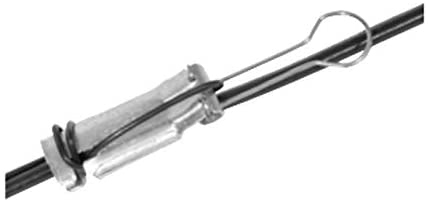

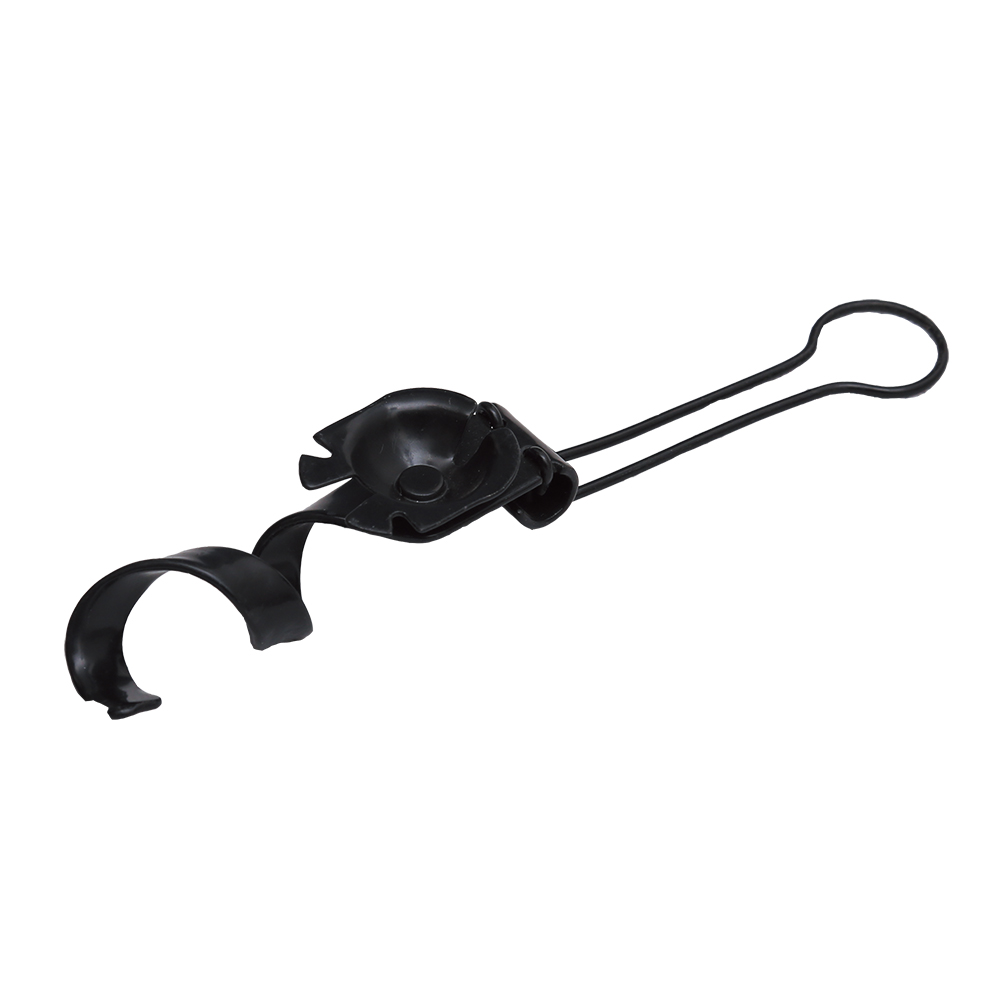

CATV Drop Wire Clamps

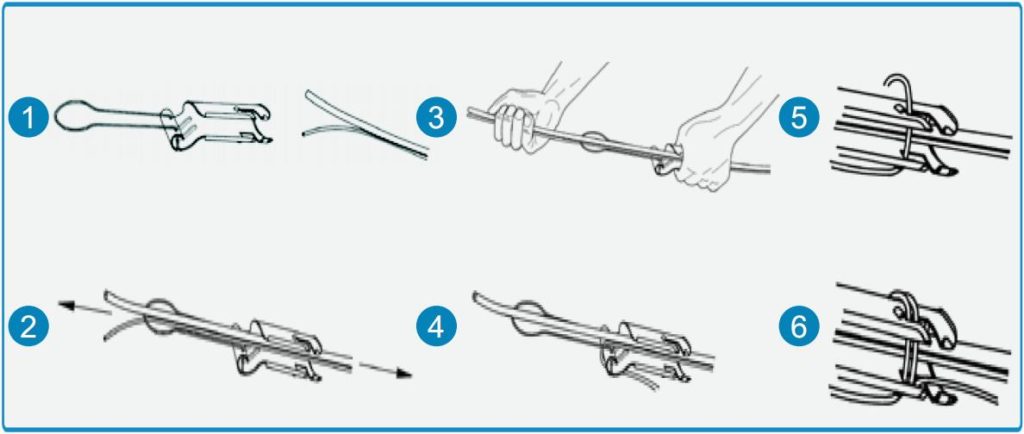

The CATV drop line clamp is used for the aerial wire drop system of CATV cable. CATV messenger drop clamp accepts RG59 RG6 RG7 RG11 coaxial cable with messenger. Messenger cable is secured within the clamp by means of a simple wrapping technique. CATV cable features include aluminum braid, gas injected foam dialectric and PVC jacket.
| Parts No. | Description | Material | Bail wire |
| CWC-ECATV | CATV Drop wire clamp | Aluminum 5052 | SS 304 |
| Parts No. | Description | Material | Bail wire |
| CWC-ECATV | CATV Drop wire clamp | AISI 1018 | SS 304 |

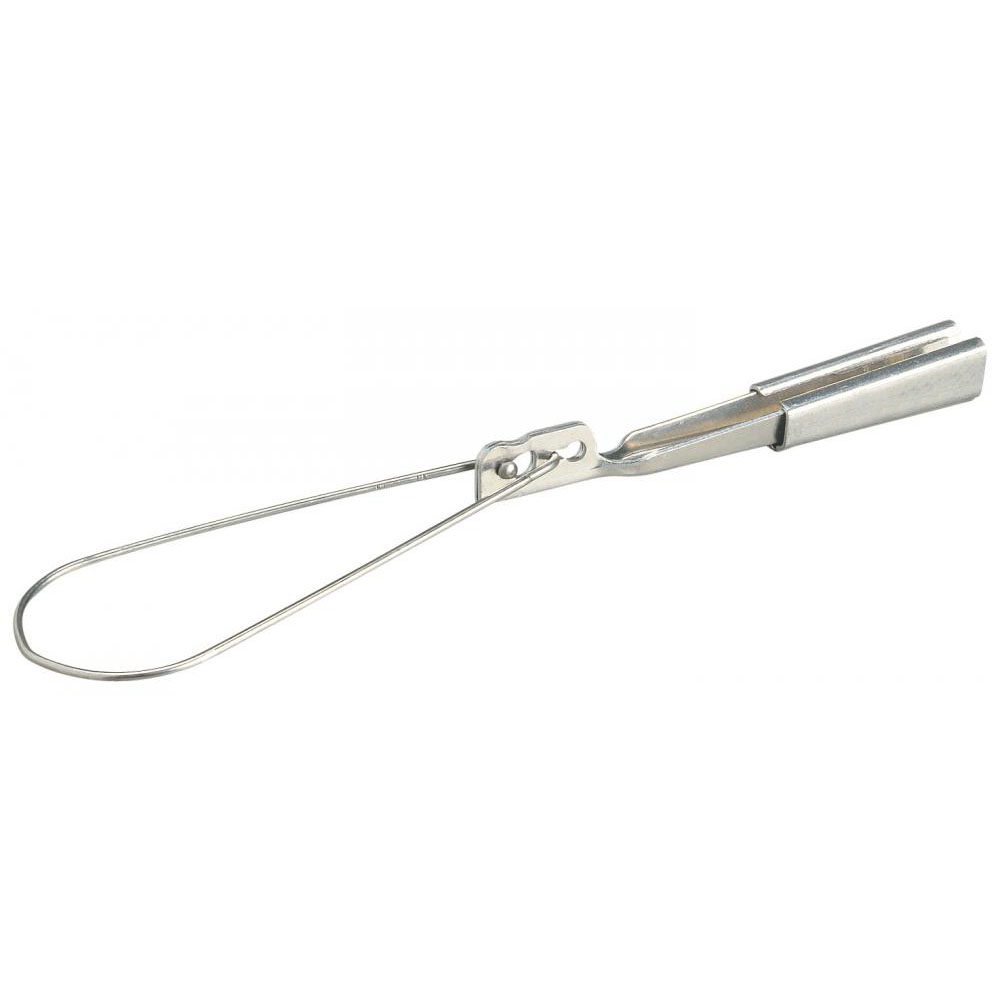

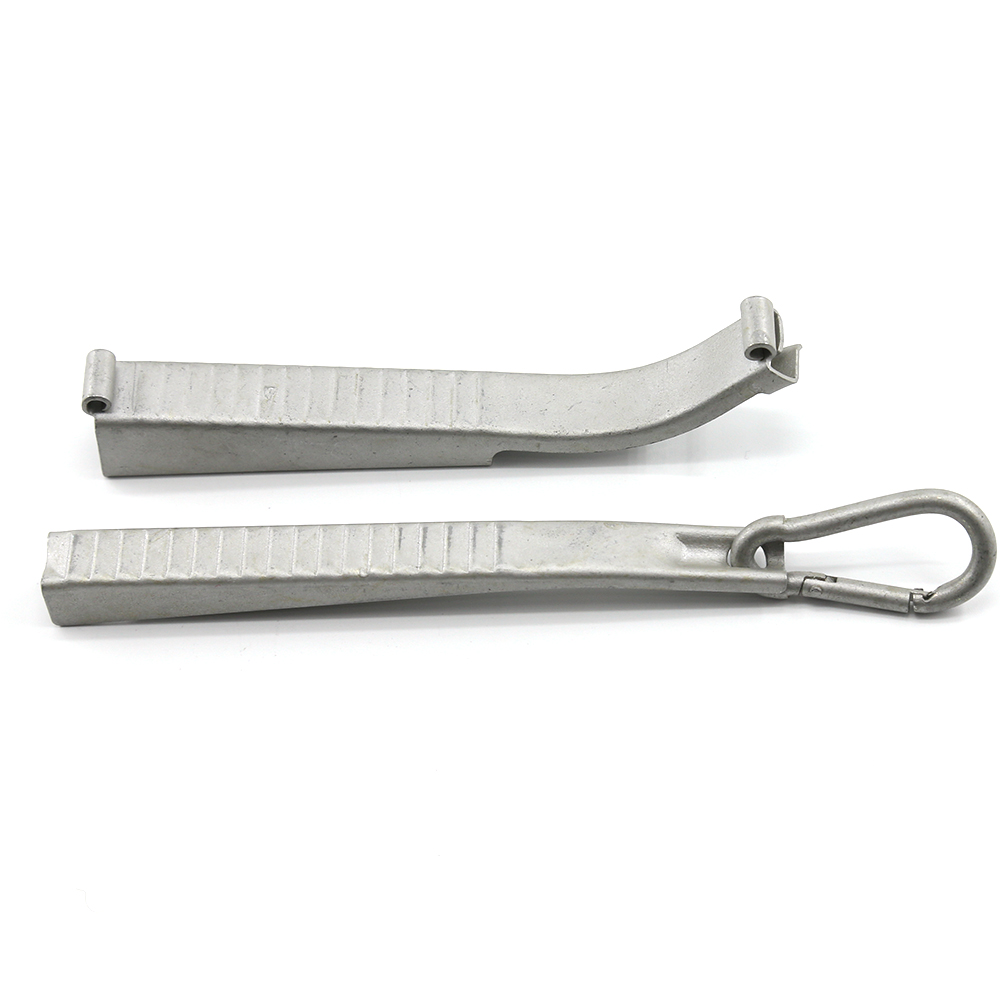

Service Wedge Clamp
Aluminum service wedge clamp, terminal self-standing suspension wire. The wedge-shaped wire clamp overhead connector and the lid hanging wire can be cut to a precise length to adjust the hanging wire to sag easily. You can connect to bare neutral points at any point where they span them, where you need them most for multi-purpose.

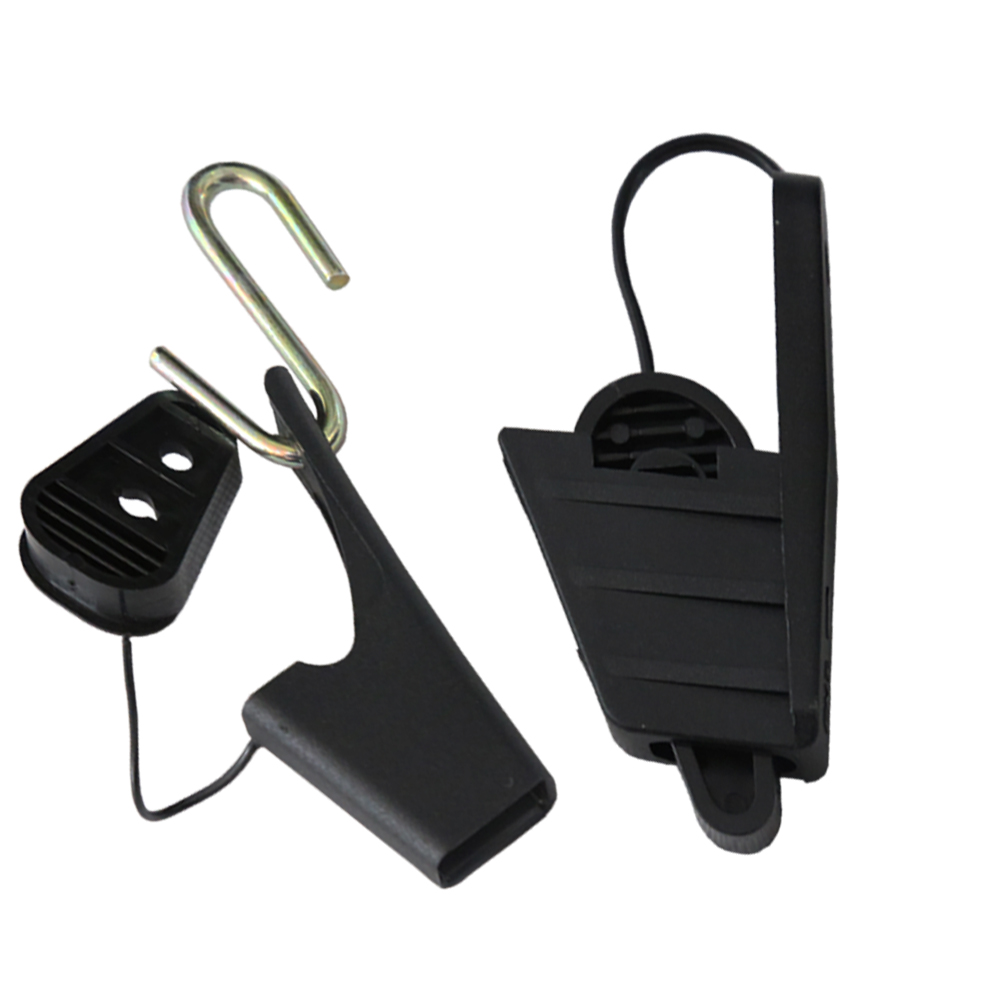

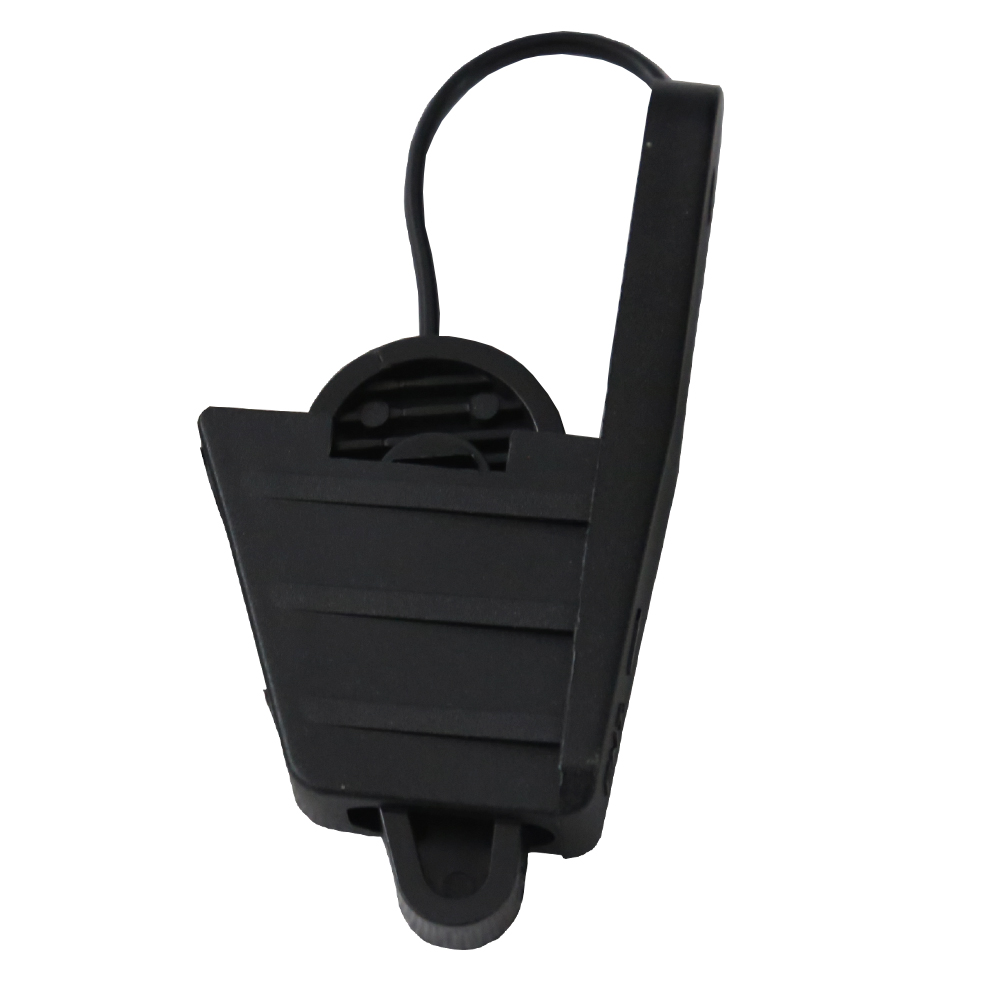

| Parts No. | Description | Material | Hook |

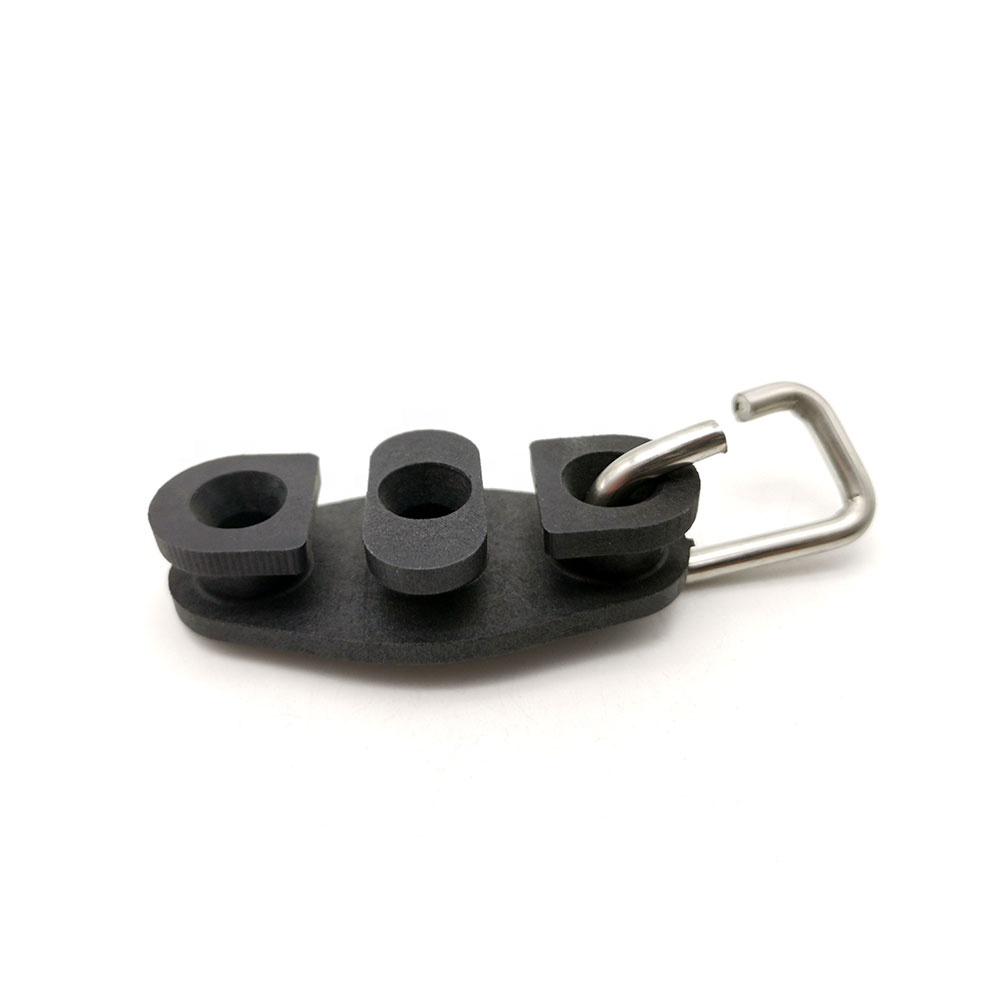

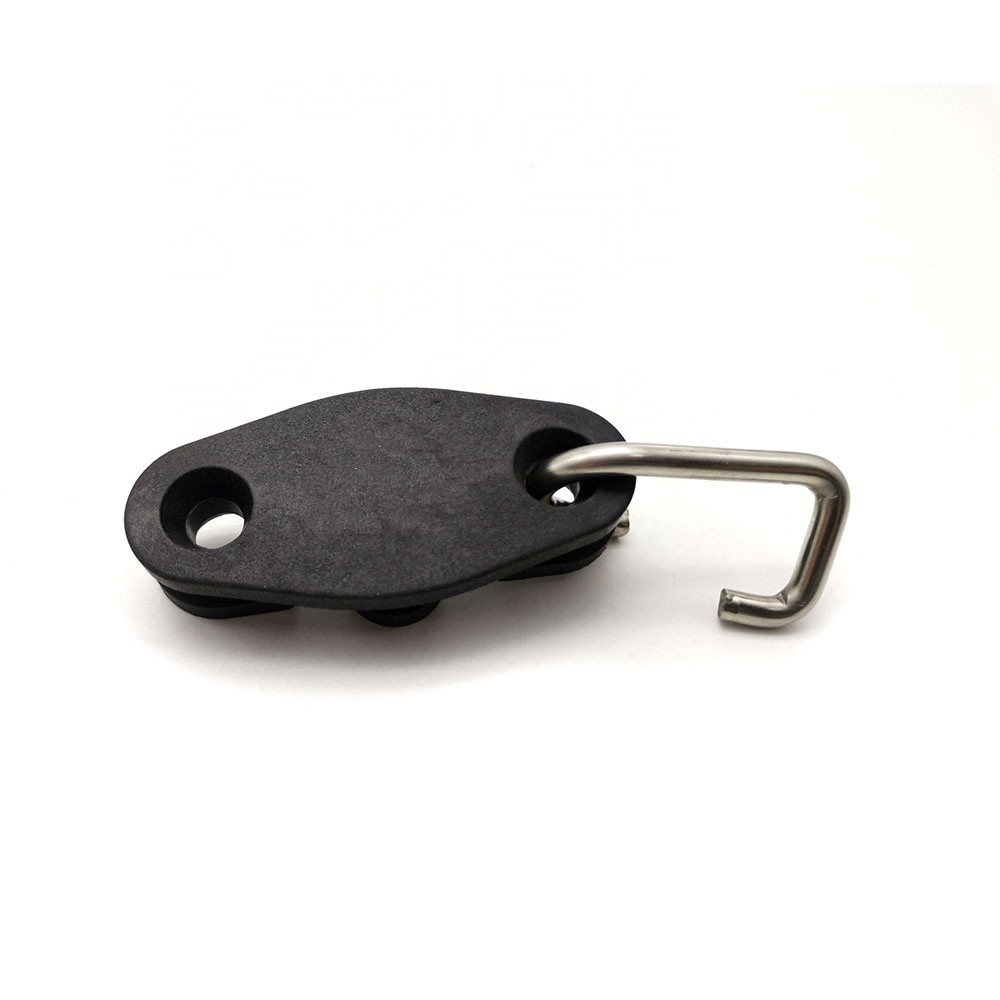

| CWN | Fiber Optical Wire Clamp | PP plastic | Galvanized |
| Parts No. | Description | Material | Hook |
| CWN-H | Fiber Optical Wire Clamp | Nylon | SS201 |
| Parts No. | Description | Material | Hook |
| CWN-R | Cable Retractor | PA | SS201 |
| Parts No. | Description | Material | Hook |

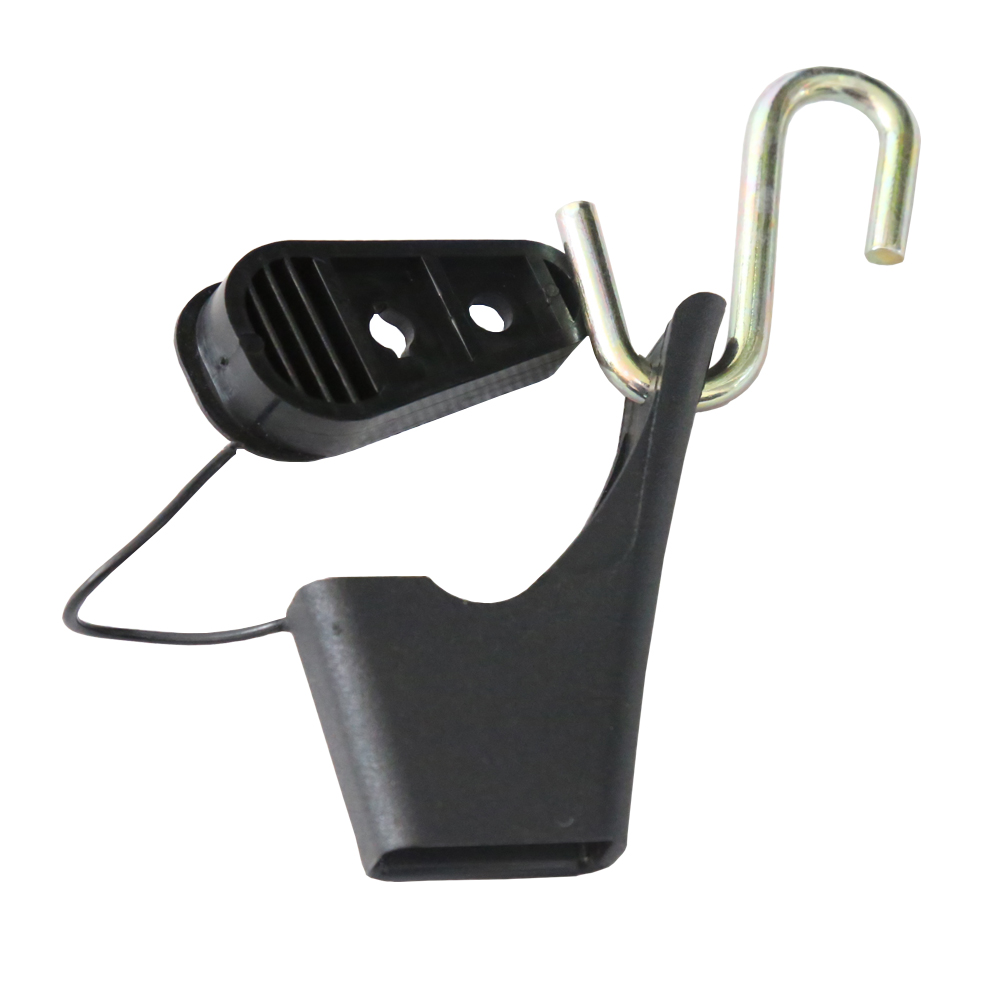

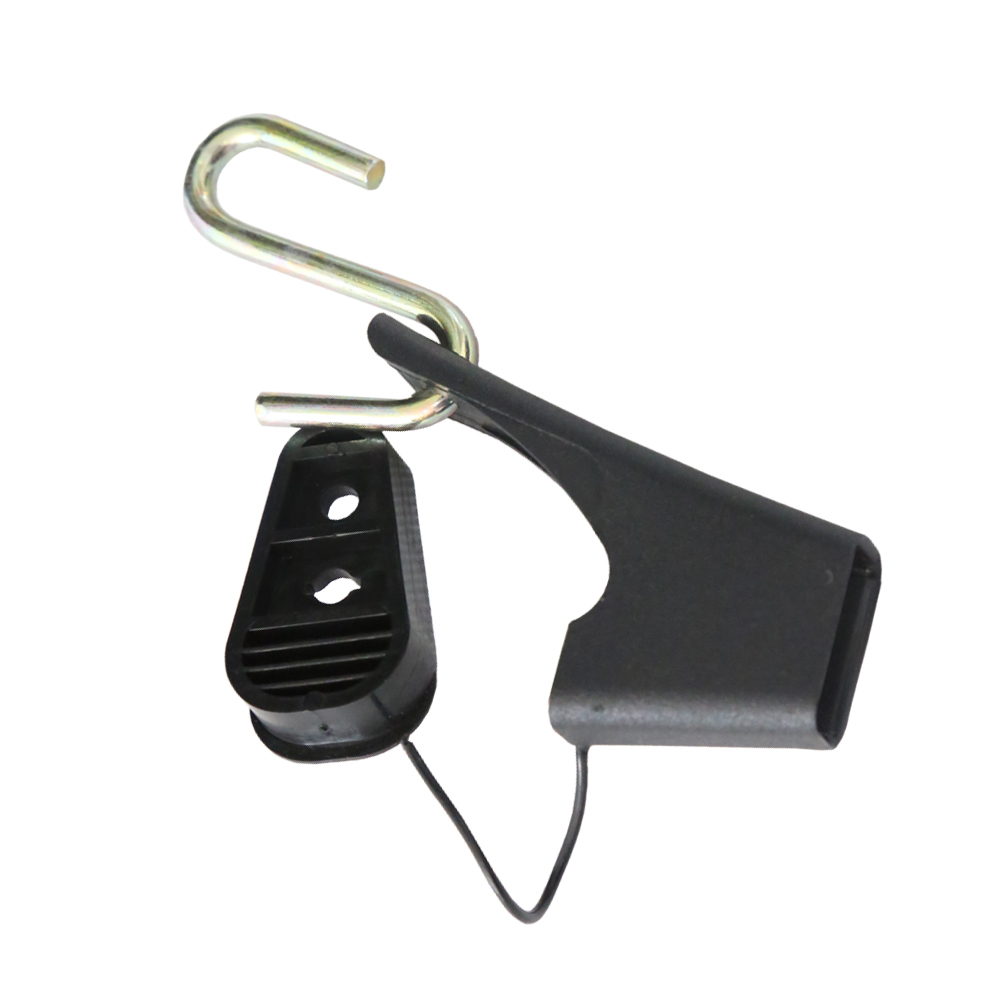

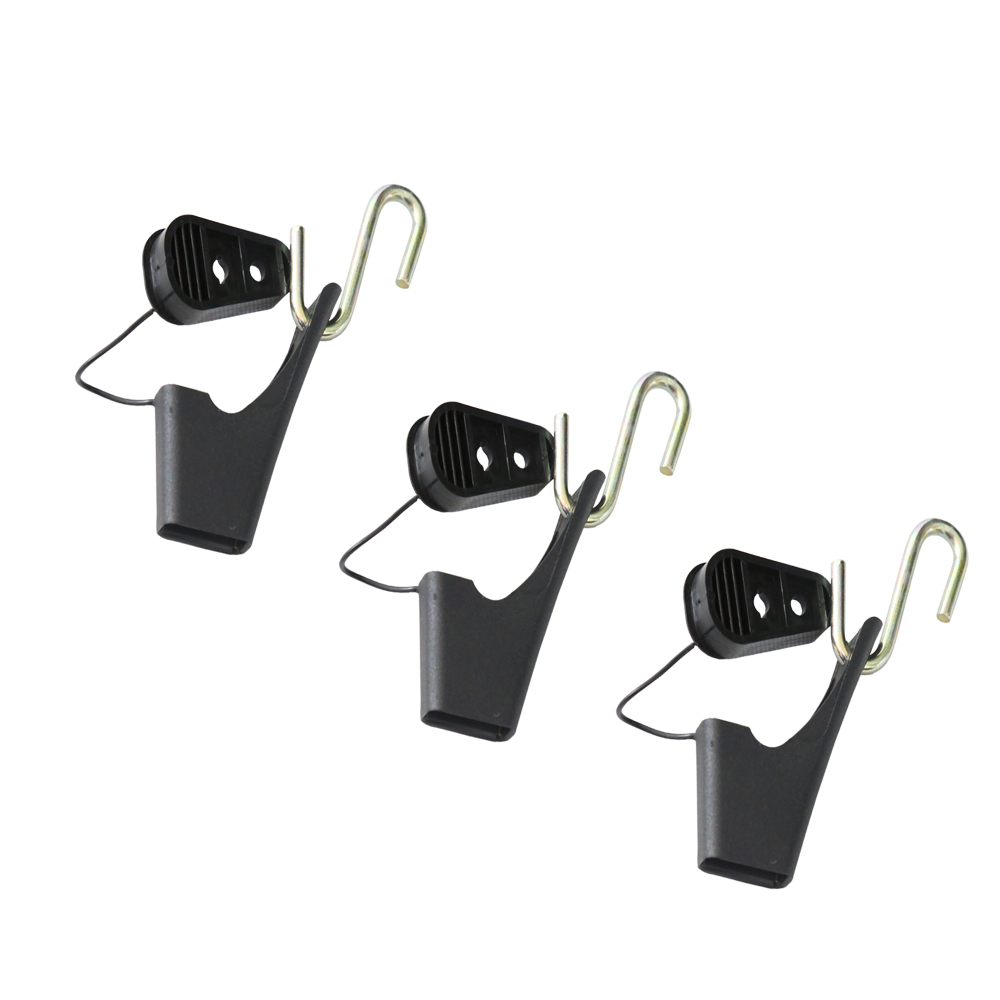

| CWN-01 | Plastic Wire Clamp | Plastic | Galvanized |
| Parts No. | Description | Material | Hook |
| CWN-PC | Plastic Wire Clamp | Plastic | Galvanized |
| Parts No. | Description | Material | U-Strength |
| CW-LFWC | Large Flexible Wedge Clamp | Aluminum T2024 | 1,600 lbs |
| CW-MFWC | Medium Flexible Wedge Clamp | Aluminum T2024 | 1,200 lbs |
| CW-SFWC | Small Flexible Wedge Clamp | Aluminum T2024 | 1,100 lbs |
| Parts No. | Description | Material | U-Strength |
| CW-LWC | Large Wedge Clamp Non Irridite | Aluminum T2024 | 1,600 lbs |
| CW-MWC | Medium Wedge Clamp Non Irridite | Aluminum T2024 | 1,200 lbs |
| CW-SWC | Small Wedge Clamp Non Irridite | Aluminum T2024 | 1,100 lbs |
Details Of Cable Cleats

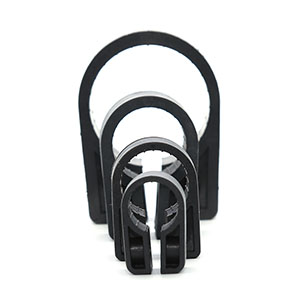

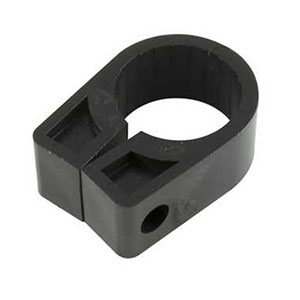

Cable Cleats
| Parts No. | LSF cleat code | Cable range Min-Max | |
| C3-C20 | C3LS-C20LS | 5.0 – 50.8 | |
| Cleat code | LSF Cleat code | Cable Range (Min) | Cable Range (Max) | Stud Hole Size | A | B | C | Box QTY |
|---|---|---|---|---|---|---|---|---|
| C3 | C3LS | 5.0 | 7.6 | m6 | 12.5 | 15.0 | 26.5 | 5000 |
| C4 | C4LS | 7.7 | 10.0 | m6 | 15 | 15.0 | 27.0 | 5000 |
| C5 | C5LS | 10.1 | 12.7 | m6 | 17 | 16.0 | 29.7 | 4500 |
| C6 | C6LS | 12.6 | 15.2 | m6 | 19.5 | 18.5 | 33.0 | 3500 |
| C7 | C7LS | 15.1 | 17.8 | m6 | 25.0 | 19.5 | 36.0 | 2500 |
| C8 | C8LS | 17.7 | 20.3 | m6 | 26.0 | 19.5 | 38.0 | 1800 |
| C9 | C9LS | 20.2 | 22.8 | m6 | 29.0 | 19.5 | 42.0 | 1400 |
| C10 | C10LS | 22.7 | 24.4 | m6 | 32.5 | 22.0 | 46.0 | 1200 |
| C11 | C11LS | 25.3 | 27.7 | m10 | 36.0 | 25.0 | 60.5 | 800 |
| C12 | C12LS | 27.6 | 30.5 | m10 | 40.0 | 25.0 | 59.0 | 500 |
| C14 | C14LS | 30.4 | 36.5 | m10 | 46.5 | 25.0 | 63.0 | 500 |
| C16 | C16LS | 35.4 | 40.6 | m10 | 52.0 | 25.0 | 69.0 | 350 |
| C18 | C18LS | 40.5 | 45.7 | m10 | 58.0 | 25.0 | 72.5 | 300 |
| C20 | C20LS | 45.6 | 50.8 | m10 | 60.0 | 25.0 | 72.0 | 300 |
| Parts No. | LSF cleat code | Cable range Min-Max | |
| CW-CC01-08 | CC01-CC08 | 10.5 – 51.1 | |
| Cleat code | LSF Cleat code | Cable Range-A (Min) | Cable Range-A (Max) | B | C | D |
|---|---|---|---|---|---|---|
| CWCC01 | CC01 | 10.5 | 14.5 | 18 | 32 | 12 |
| CWCC02 | CC02 | 12.2 | 16.7 | 22 | 36 | 14 |
| CWCC03 | CC03 | 14.6 | 19.8 | 26 | 43 | 16 |
| CWCC04 | CC04 | 17.7 | 24 | 31 | 51 | 18 |
| CWCC05 | CC05 | 21.7 | 28.5 | 37 | 57 | 20 |
| CWCC06 | CC06 | 26.2 | 34.2 | 43 | 65 | 22 |
| CWCC07 | CC07 | 31.9 | 41.6 | 52 | 78 | 25 |
| CWCC08 | CC08 | 39.3 | 51.1 | 62 | 91 | 26 |
Downloads of Aerial Drop Hardware
The following product catalogs are for you to download
Catalog of aerial drop hardware & pole line hardware
Including products: Drop wire clamps, CATV drop wire clamp, service wedge clamp, J clamp, other fixed cable, support wire deadend, hoop fastening retractor, support wire deadend, drive ring, wrenchable P house hook, pole band, guy grip, pipe clamps, cable clamps, other product.
Catalog of drop wire clamps.
Including products: 1-2 pair &6 pair drop wire clamp, CATV drop wire clamp, wedge clamp, plastic drop wire clamp, support wire deadend, usage of products, photos of our exhibitions.
Catalog of C-cable clamps.
The clingstrap cable cleat is a comprehensive range of single fixing cable cleats to provide a simple, but strong means of securing cables. Suitable for use with cables or pipes up to 50.8mm in diameter.
