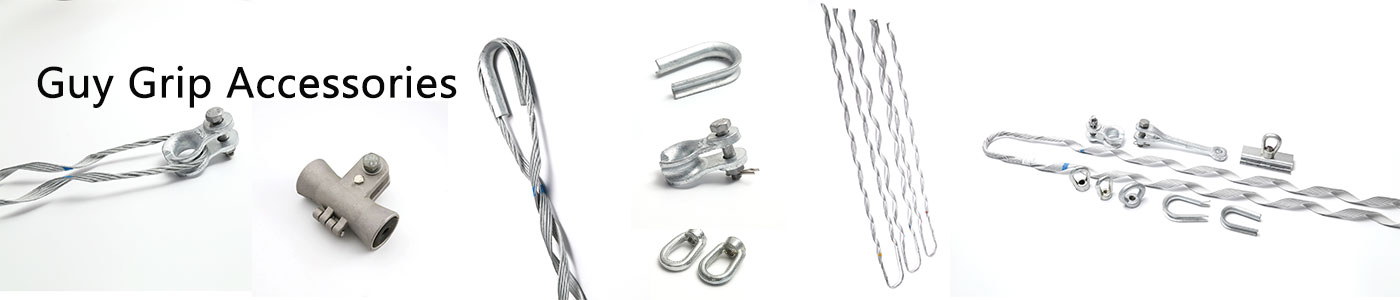

Guy Grip & Accessories

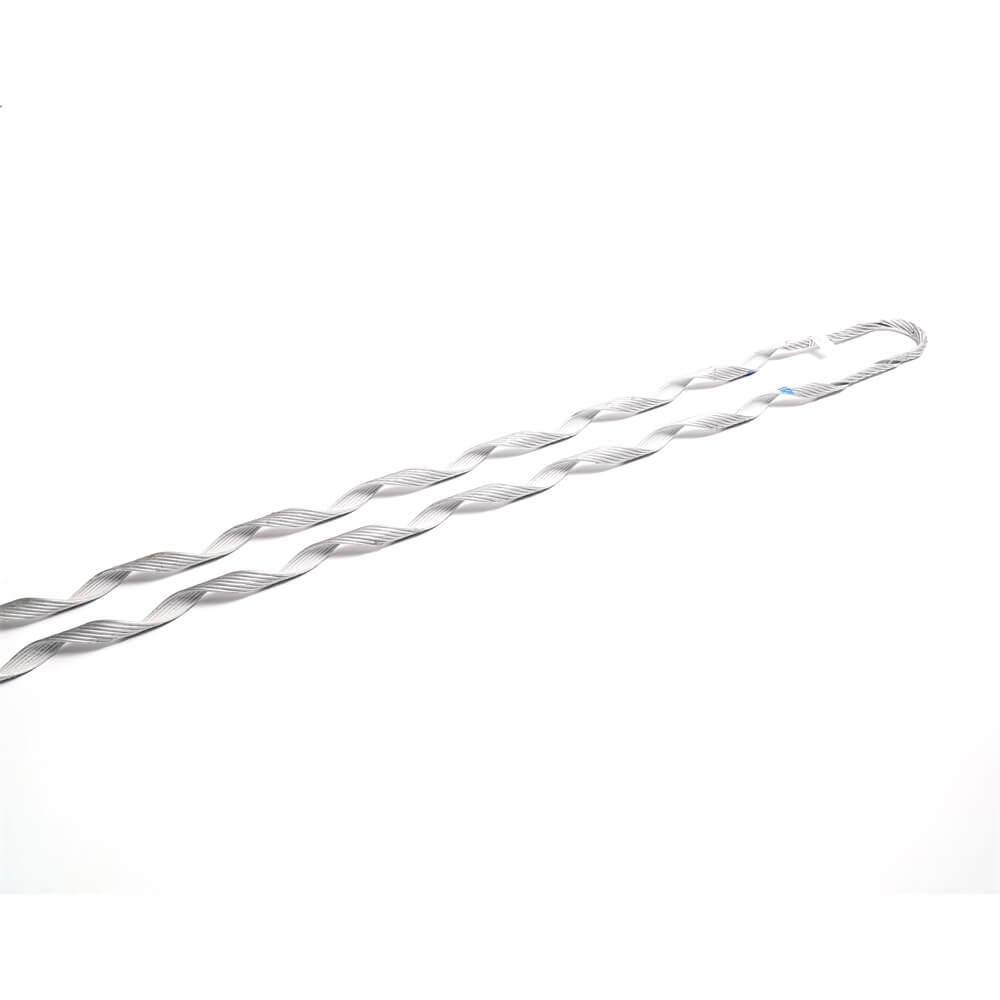

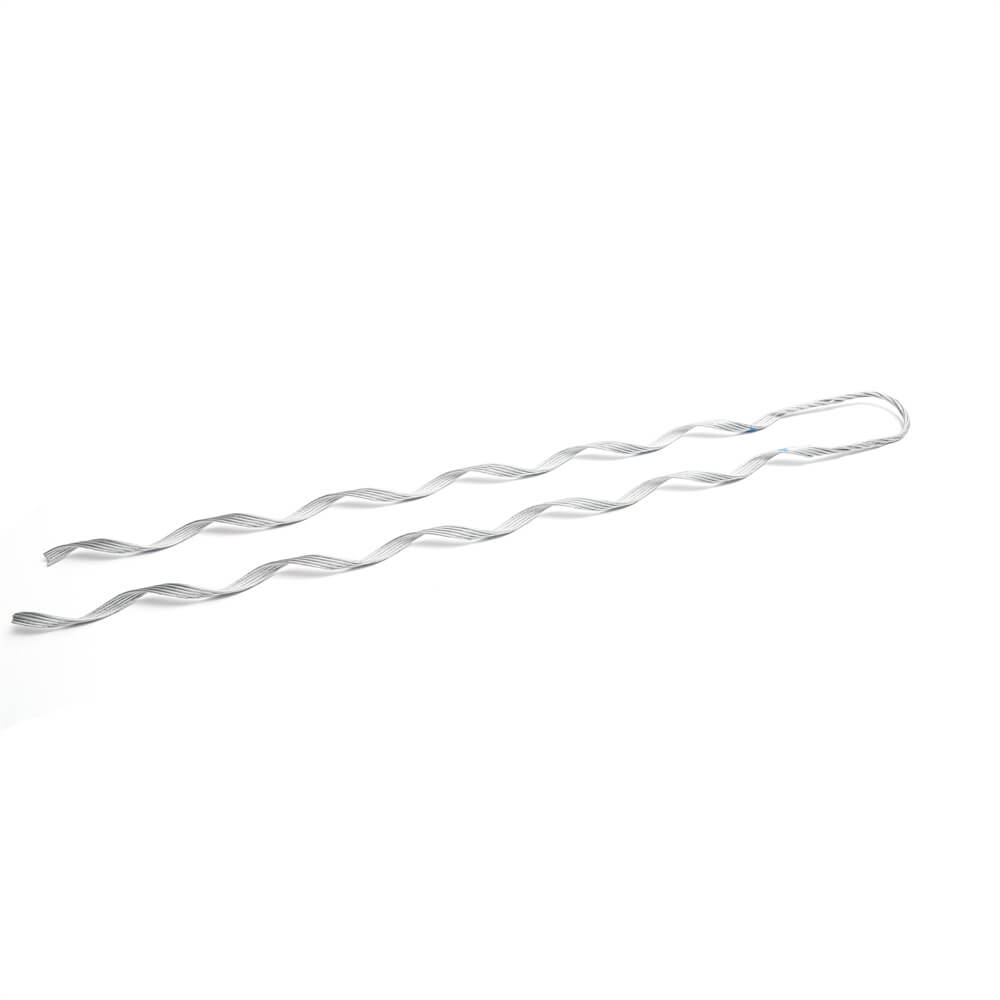

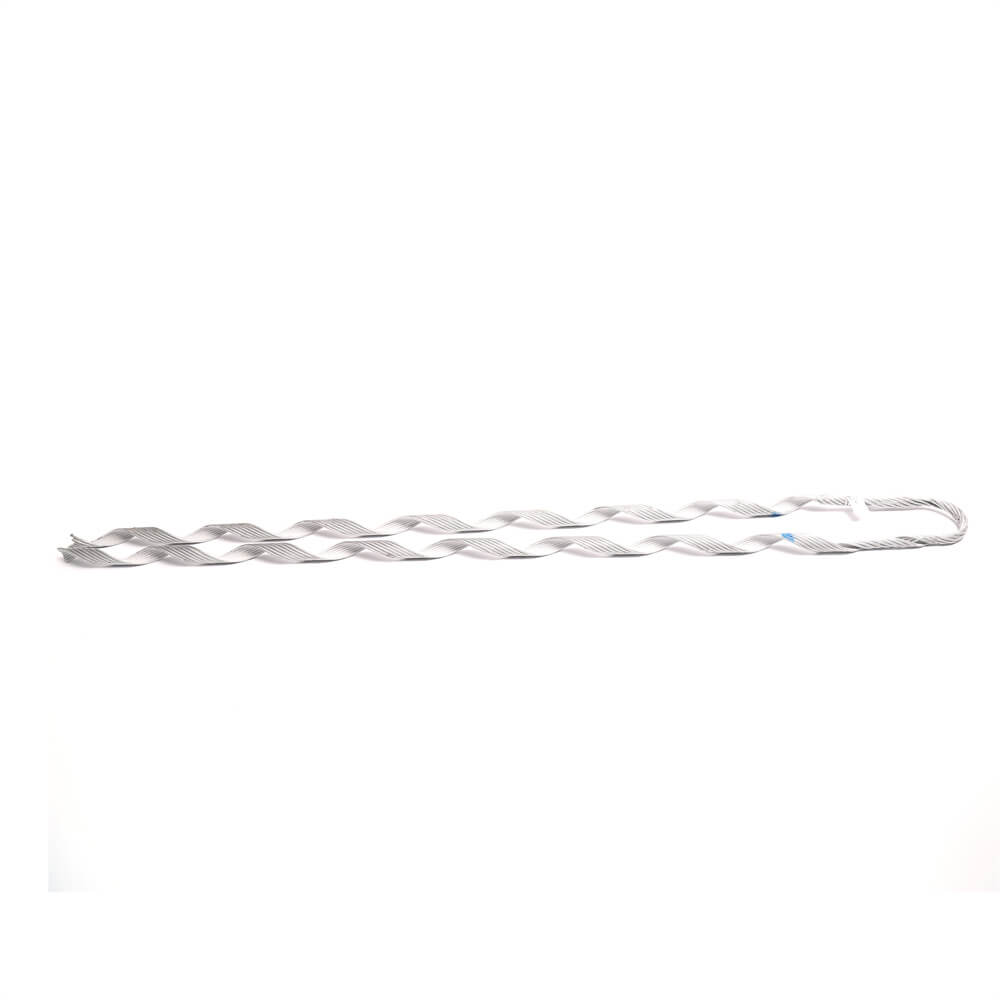

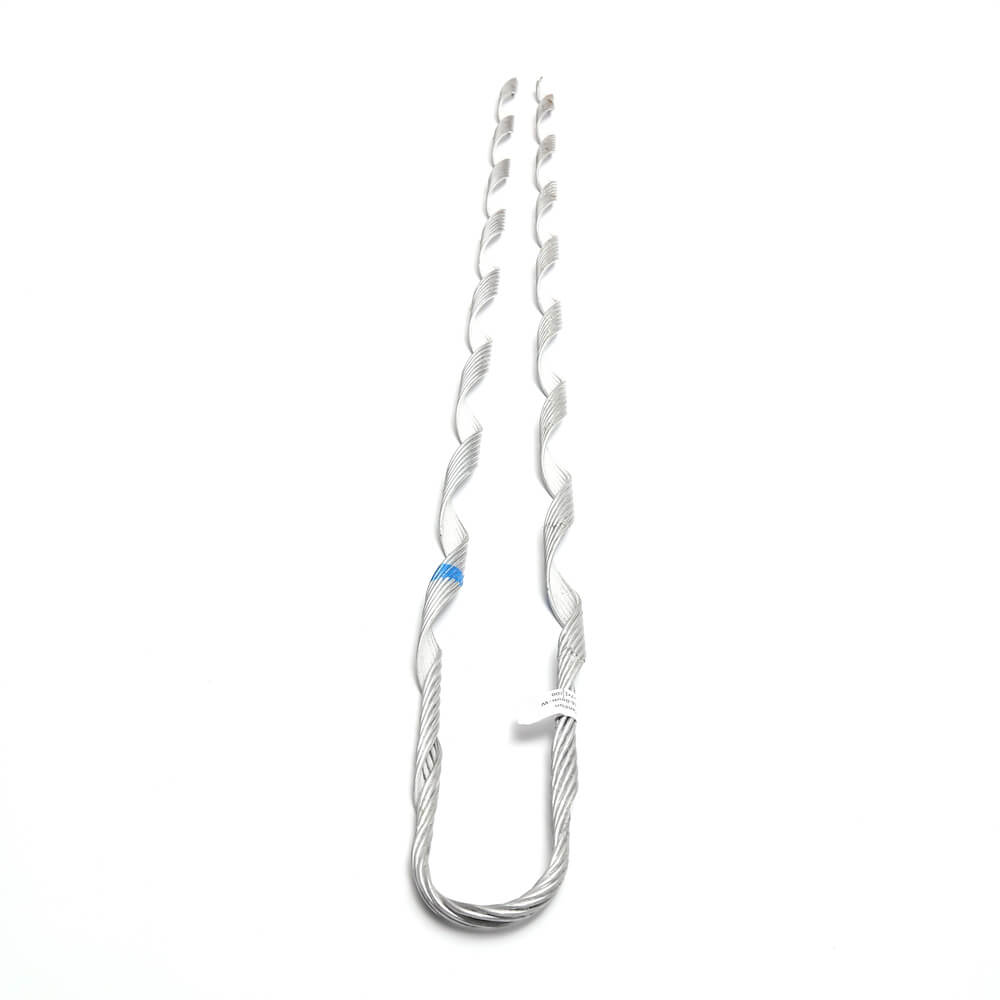

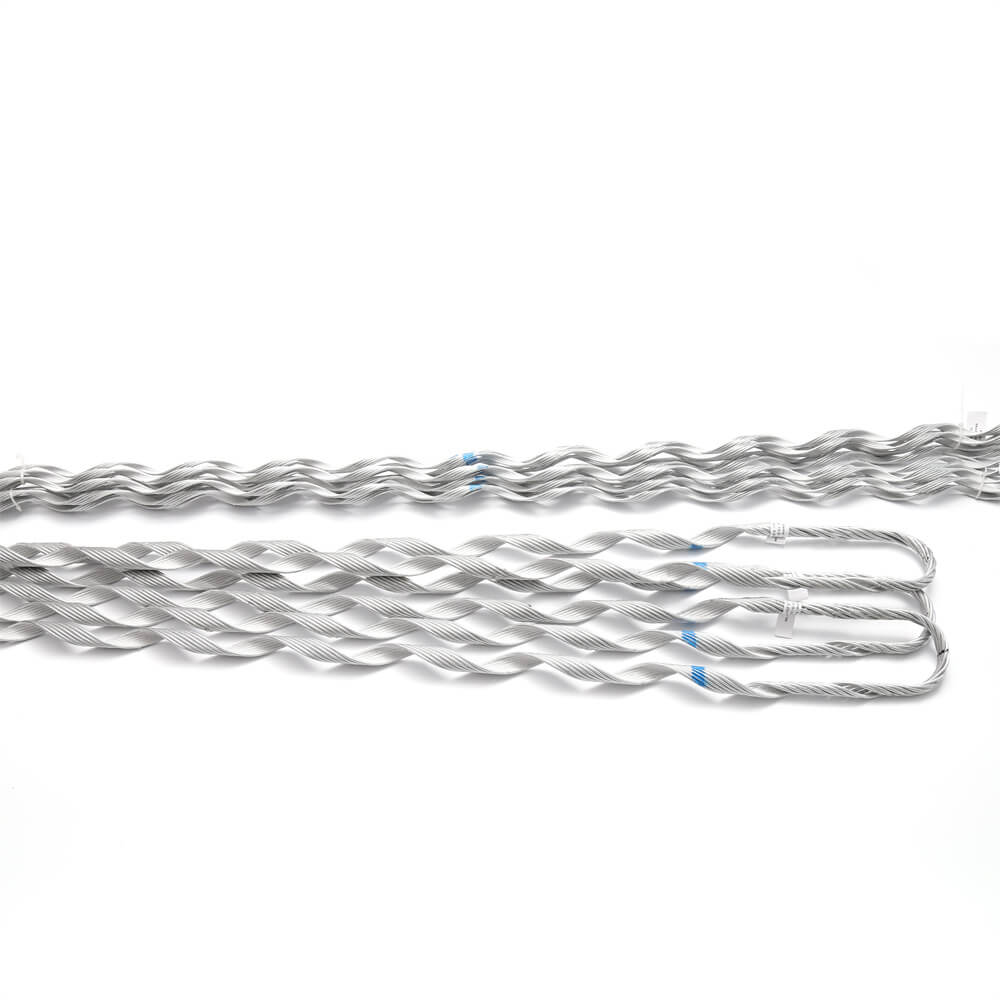

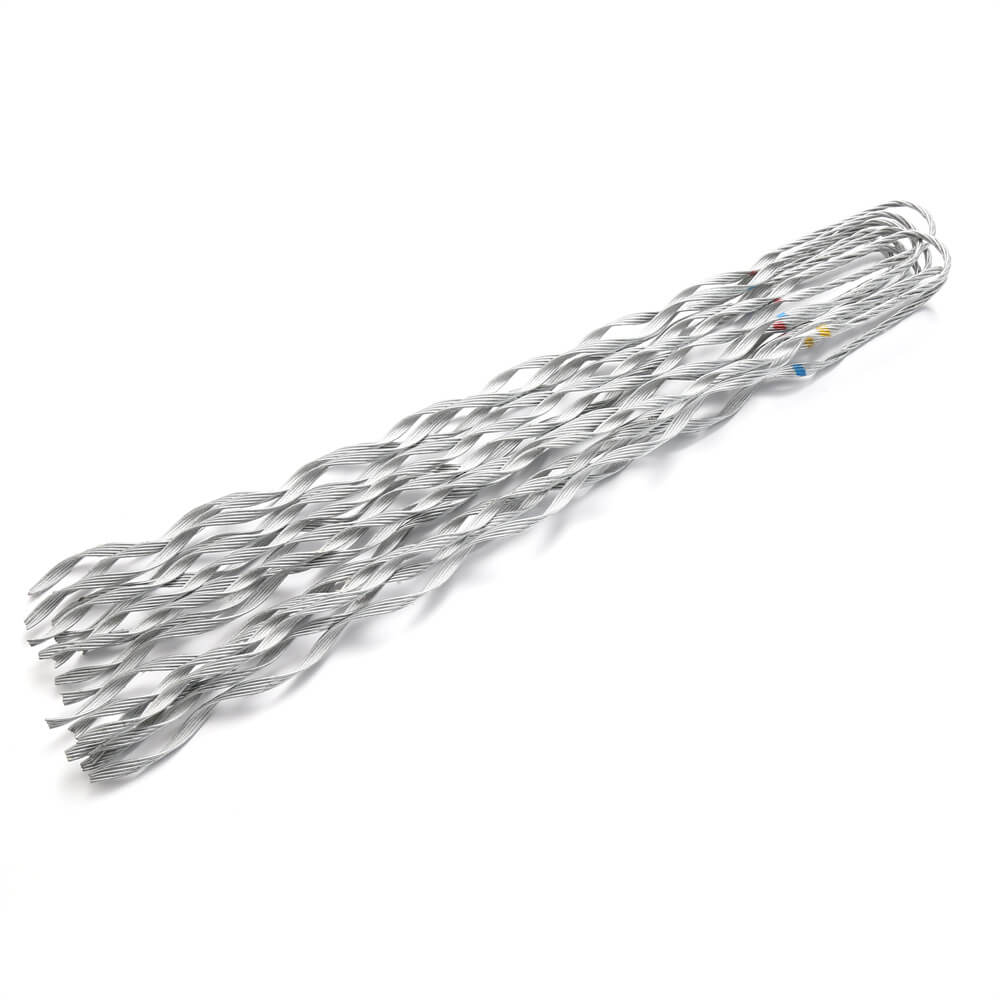

A guy grip is also known as the guy grip dead end or a preformed guy grip. The recognized and reliable preformed guy grip dead end for the connection is also responsible to grip the conductor, ground the wire, and application for optical fiber.
Preformed Tension/Suspension Clamp for OPGW/ADSS
Guy grip mainly have preformed tension clamp and preformed suspension clamp two parts, which support full tension strength and using for holding and connection of ADSS/OPGW cable to de dead end poles/towers or tangent towers.

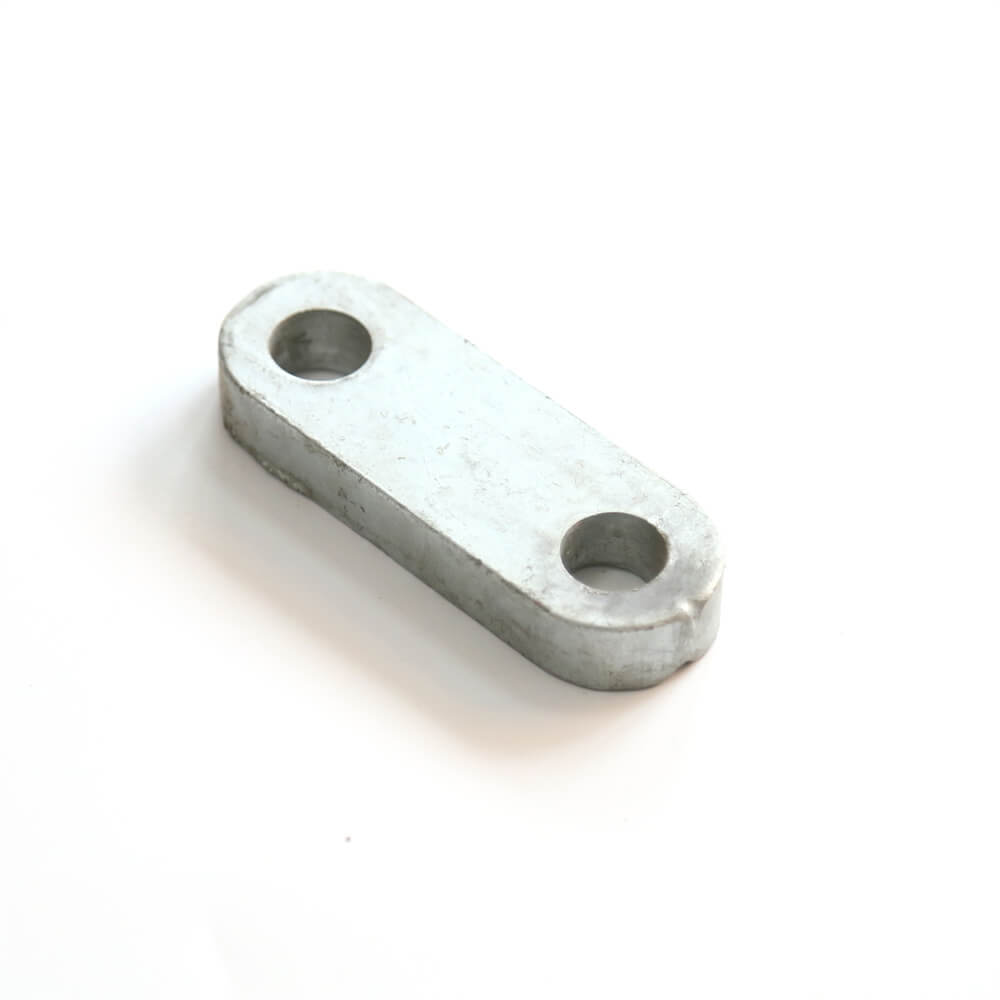

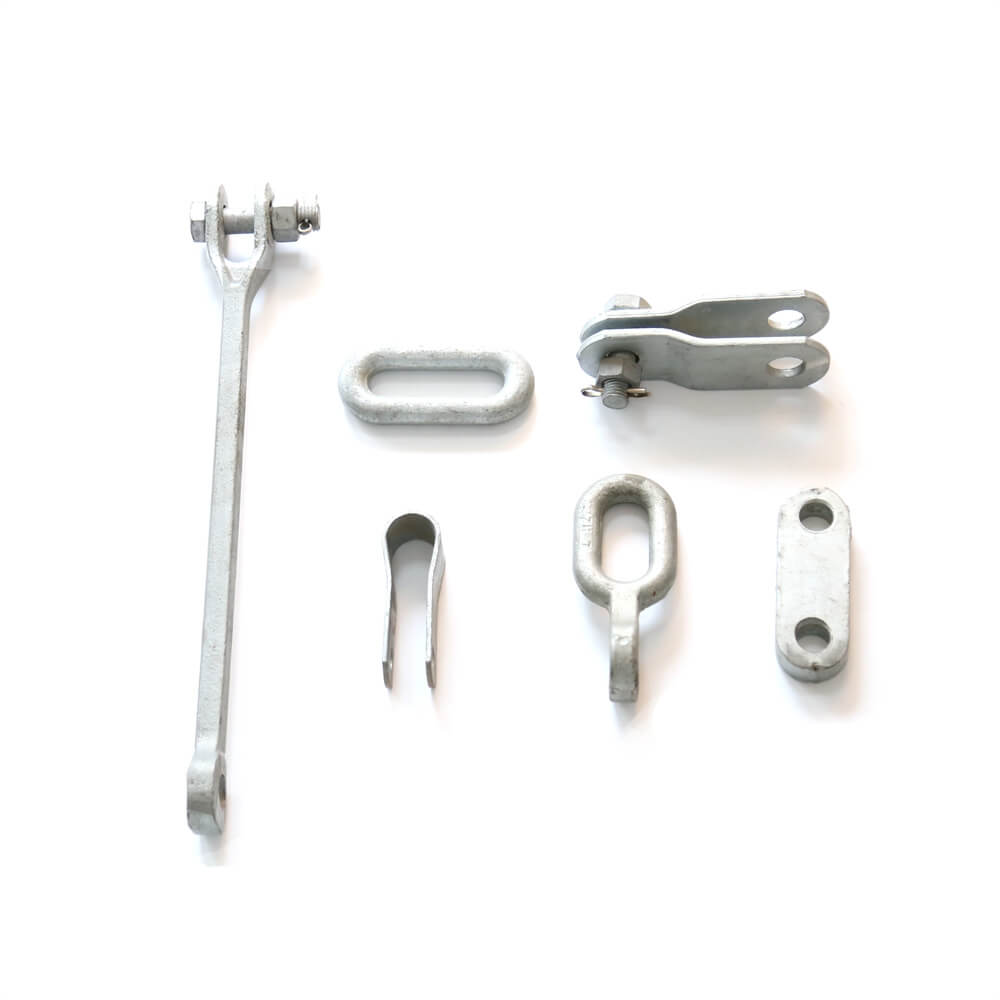

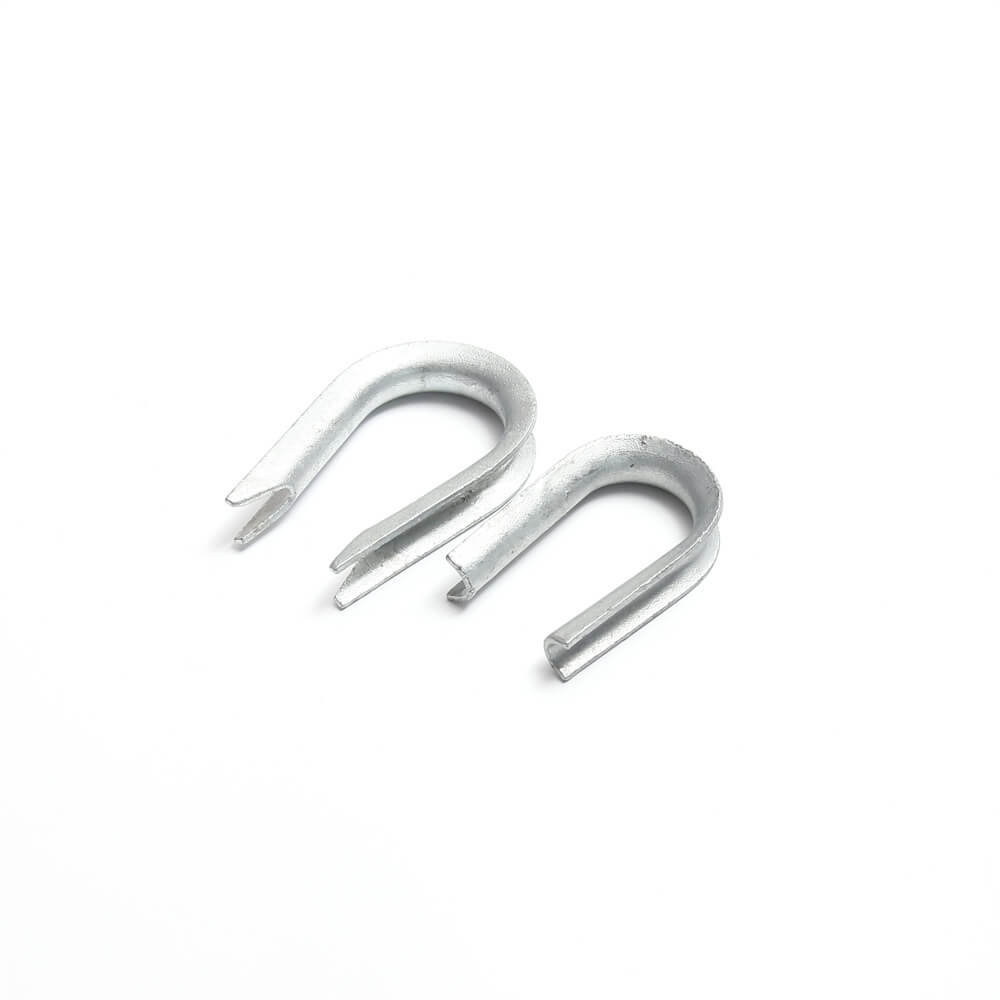

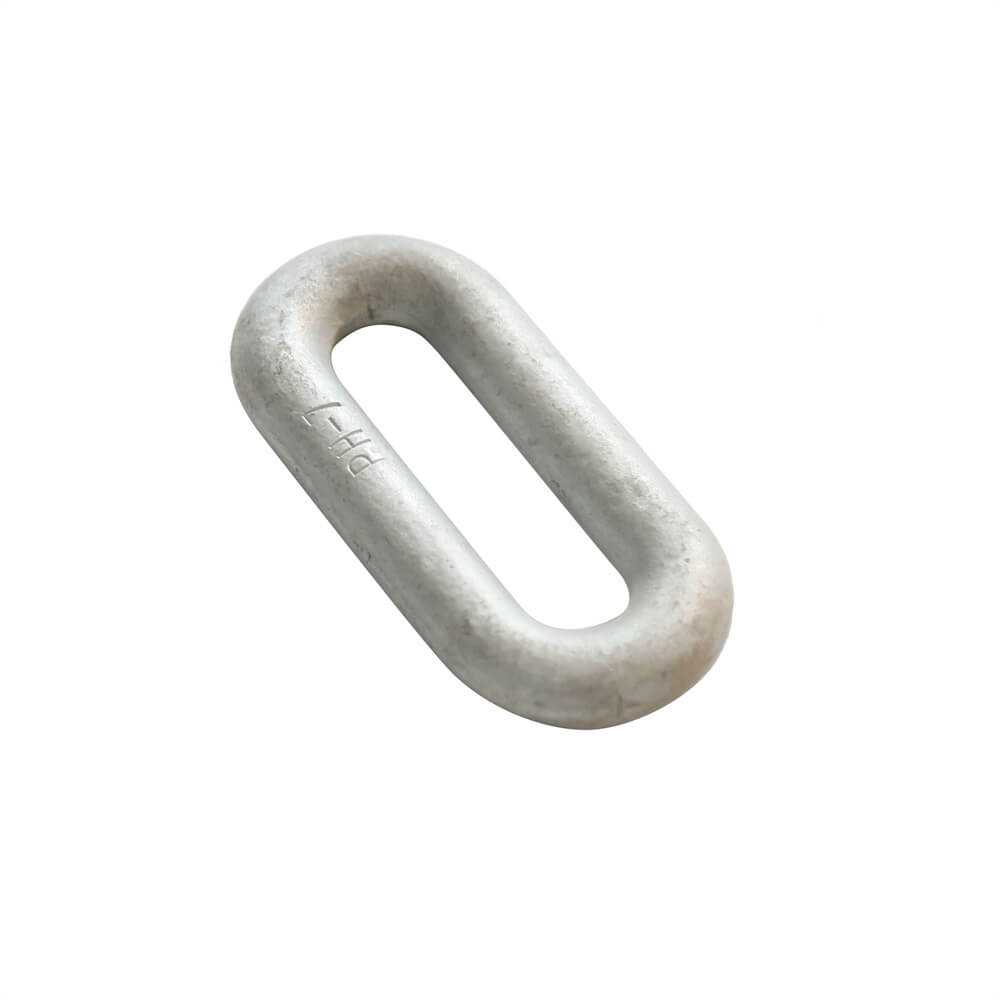

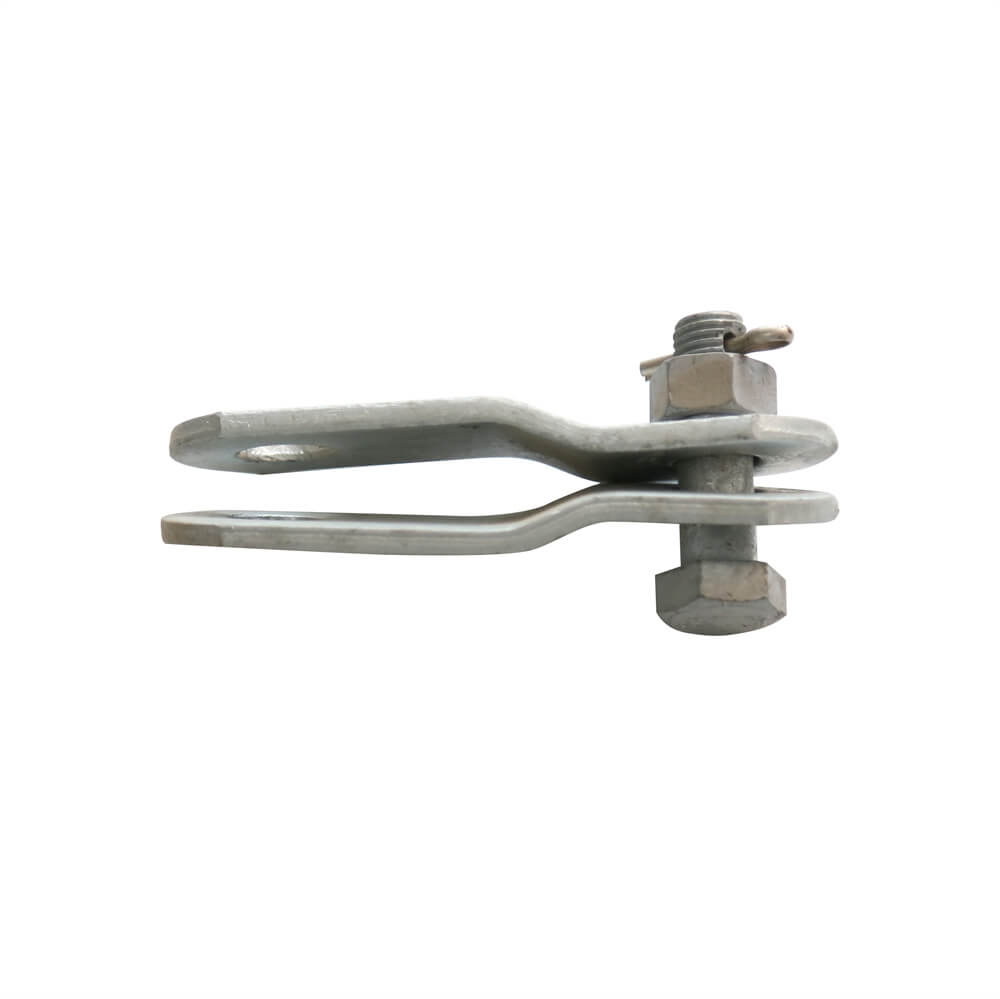

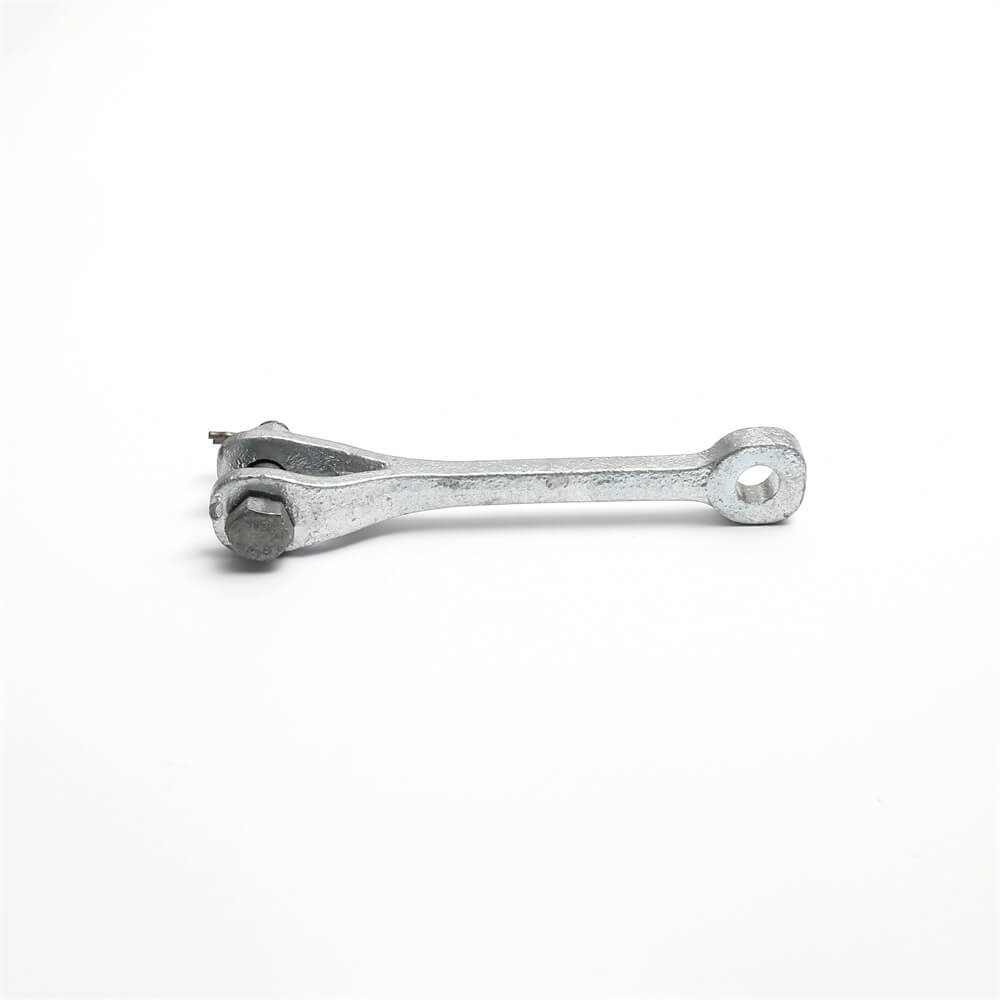

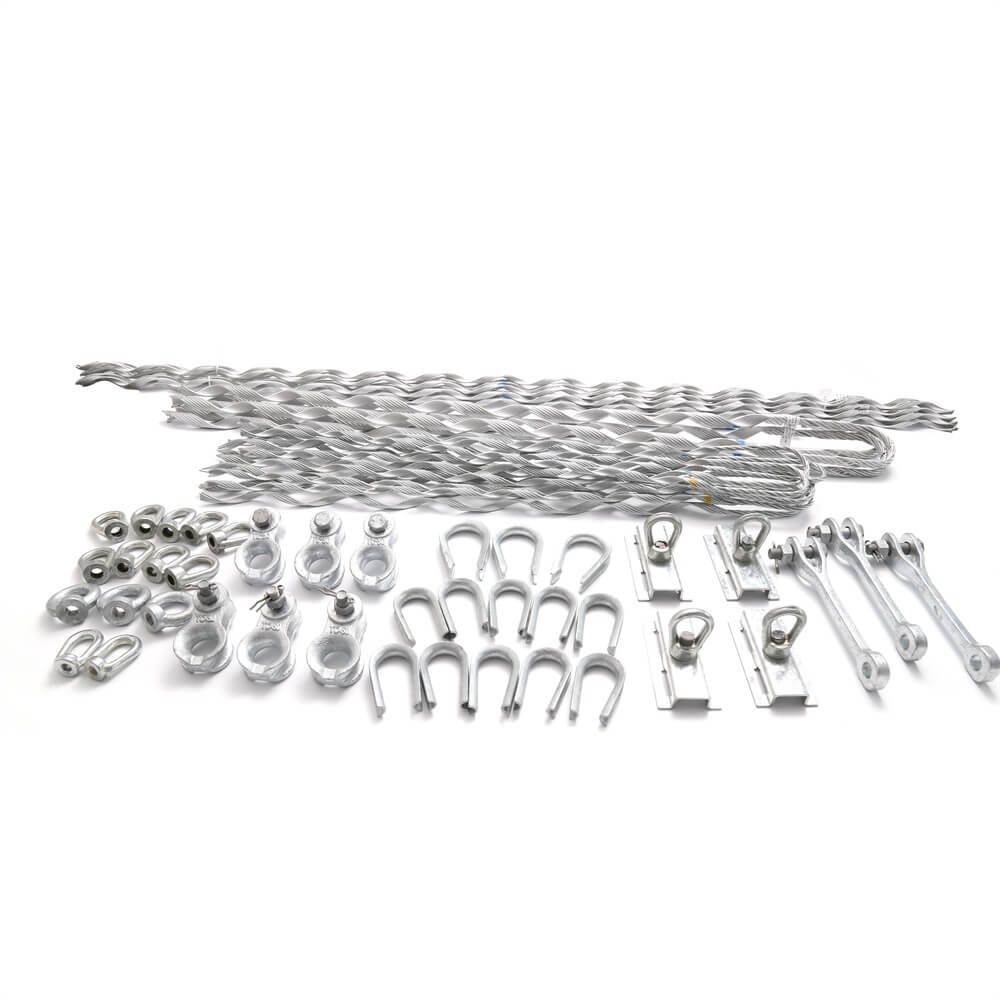

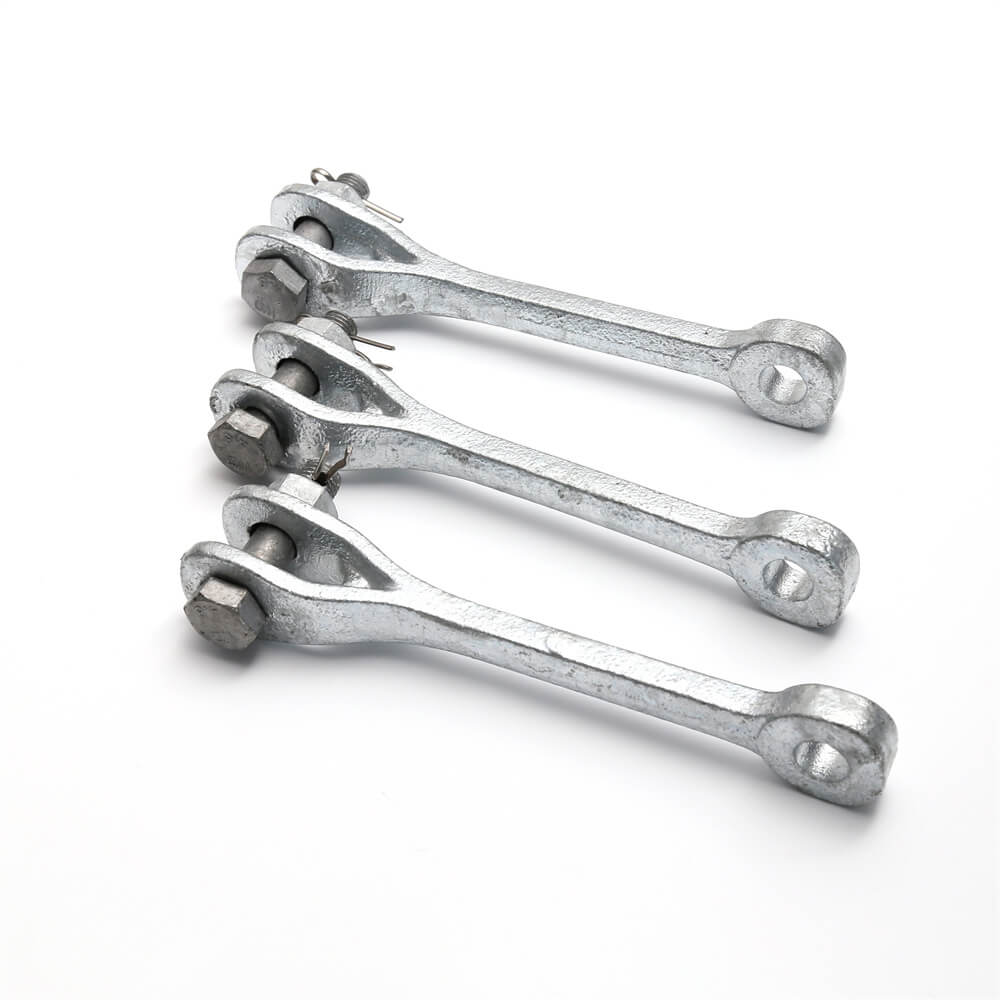

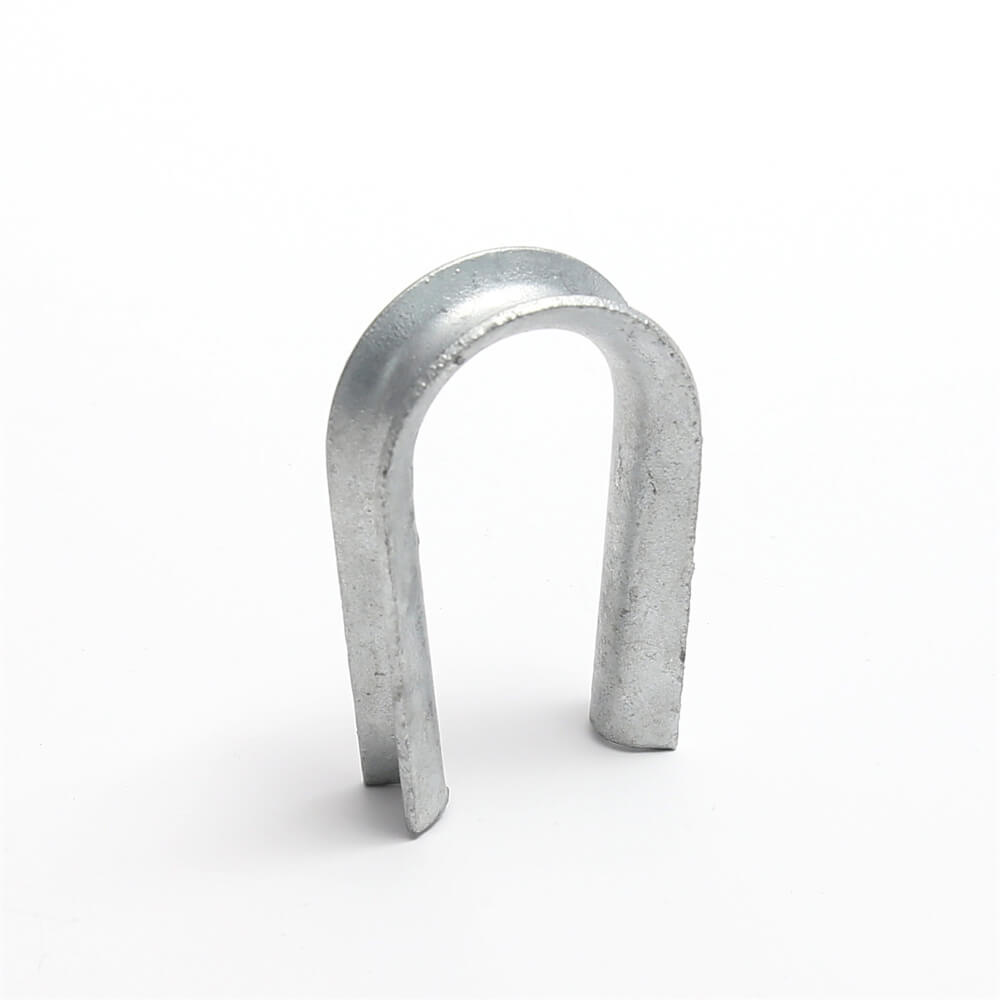

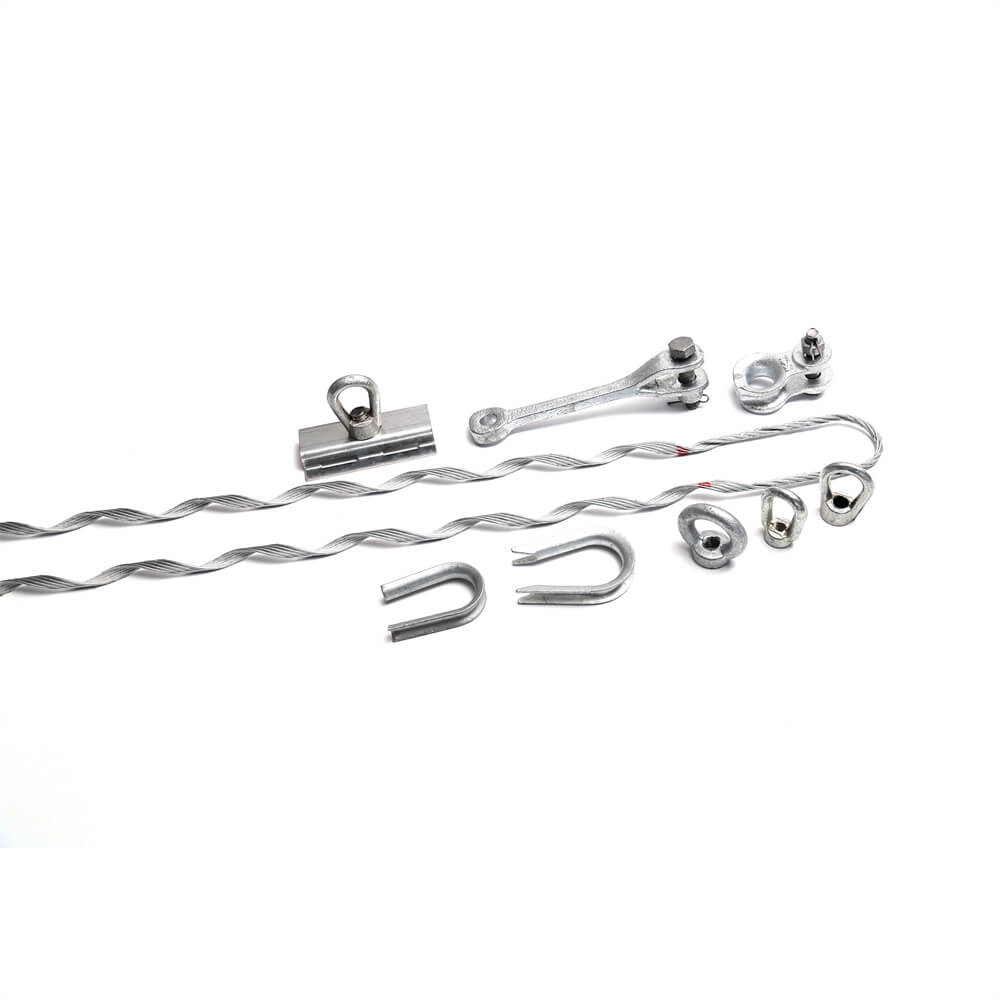

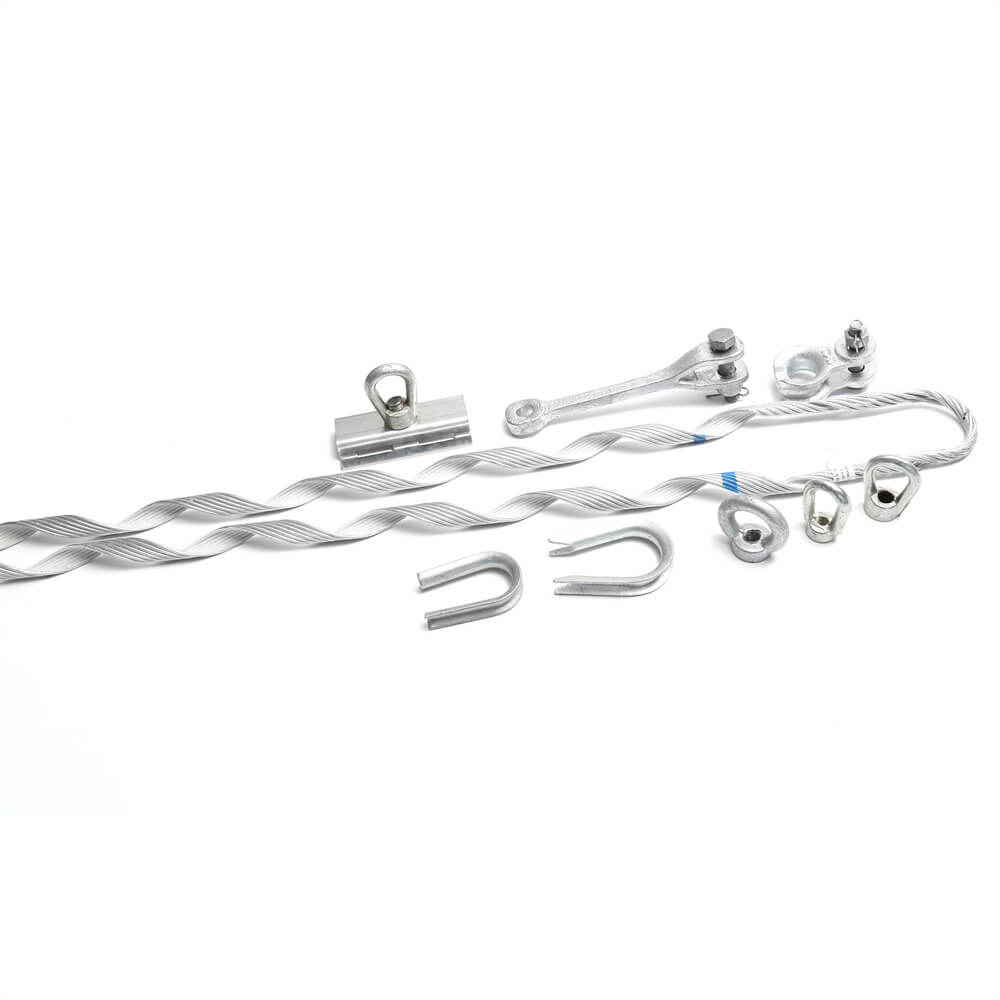

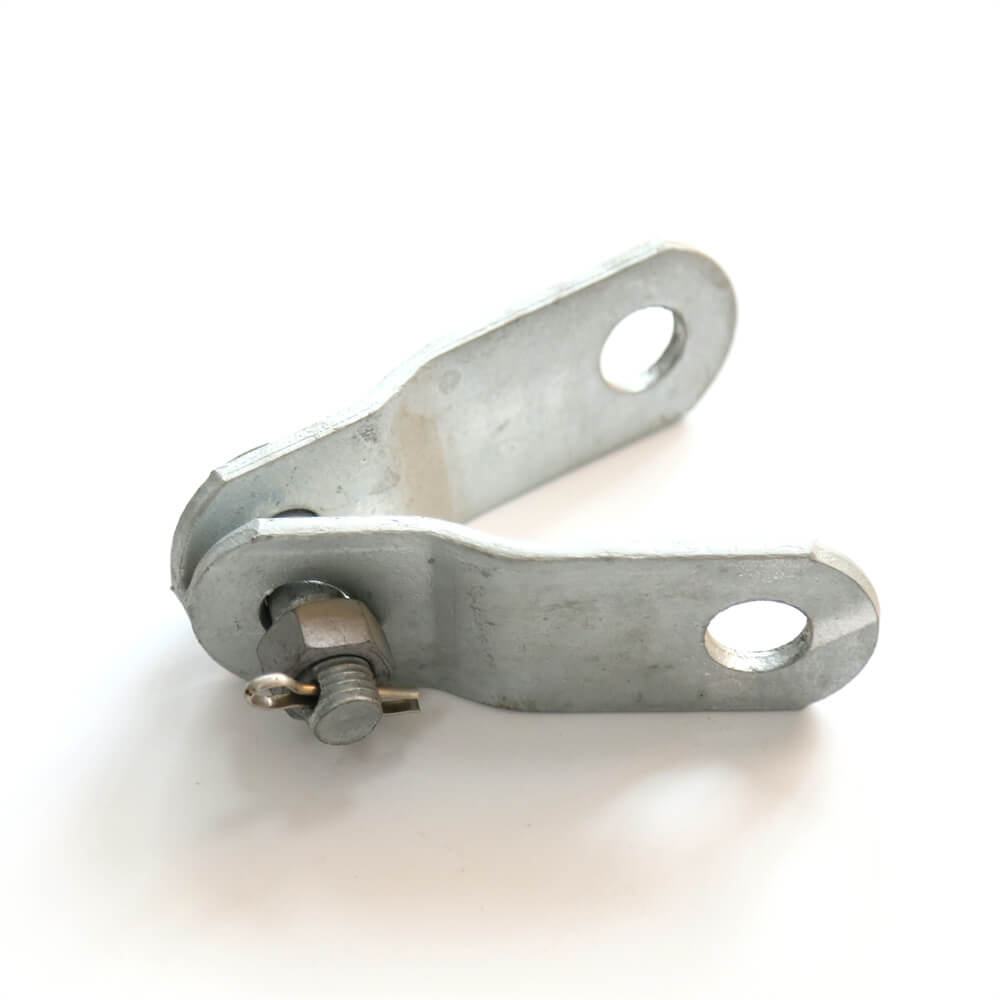

Guy grip fittings consist of preformed armor rods and different accessories like timbles, clevis, shackles, links and etc. The combinations are available depending on the installation requirements of ADSS/OPGW application.
Crown Wealth preformed guy grip dead end is made of the aluminum clad steel wire, galvanized steel wire, aluminum alloy and etc.The color of code on each armor rod, helping identify conductors easily.
Aging resistance, easy installation, Crown Wealth guy grip clamps are widly used for poles/towers line.

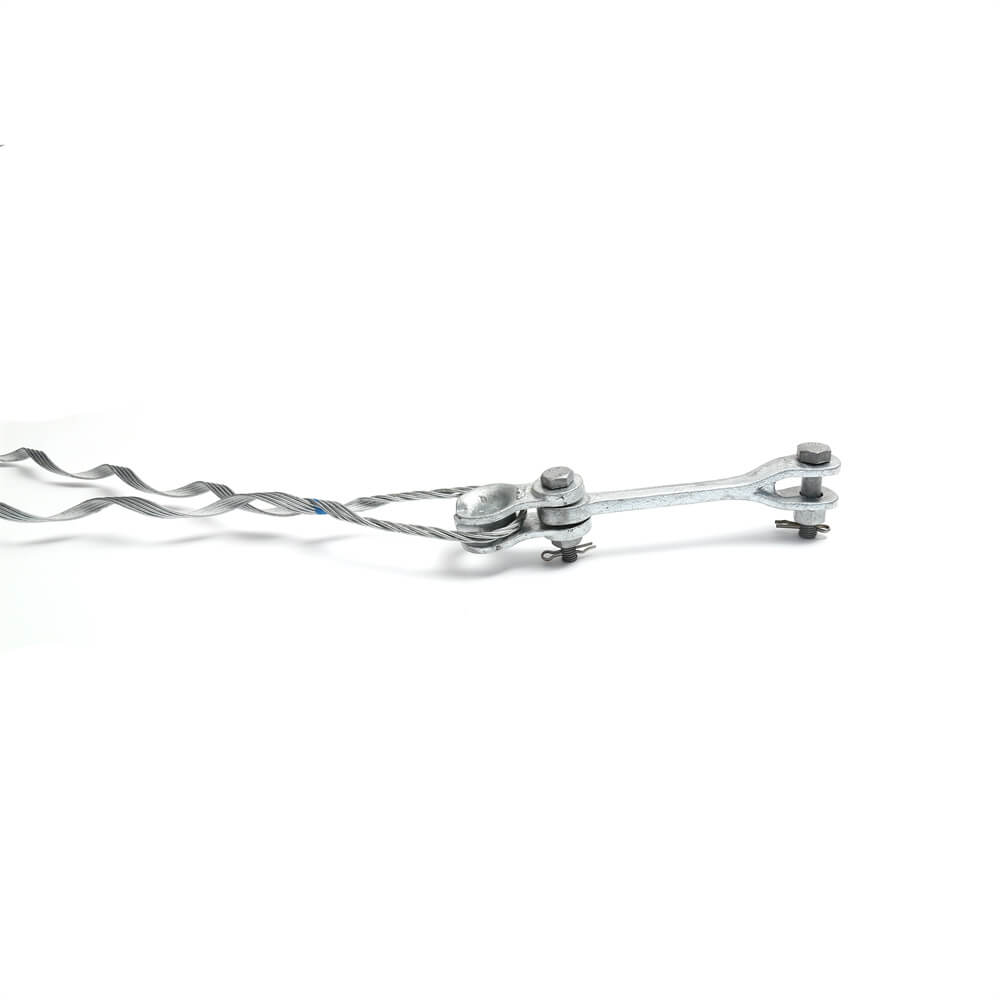

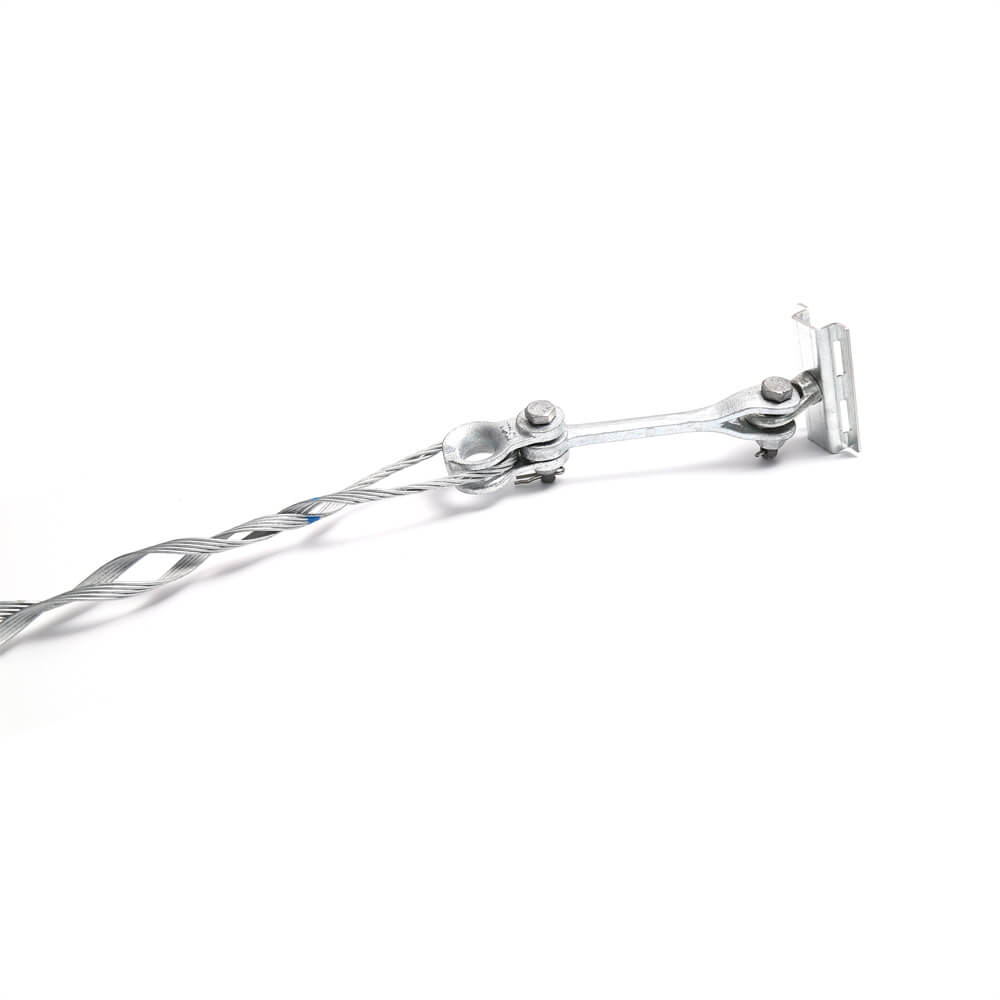

Preformed Tension Clamp

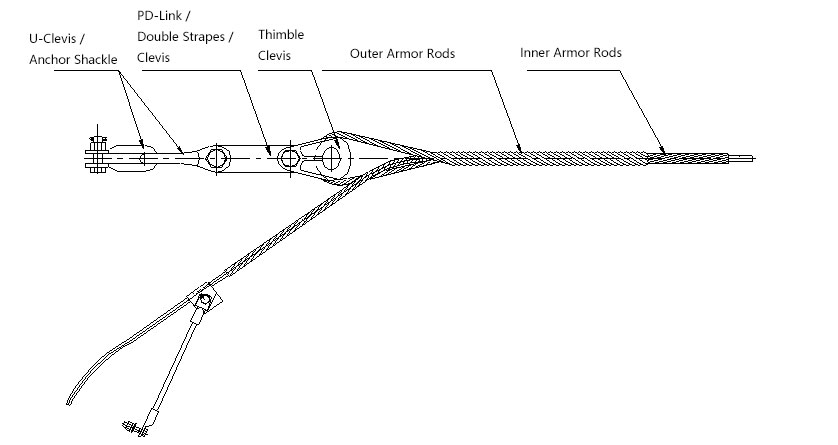

1.Preformed tension clamp for OPGW
Component
Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extensive rods, bolt, nut, etc.
Function
Support full tension strength,connect the OPGW cable to the terminal poles/towers or dead end poles/towers.

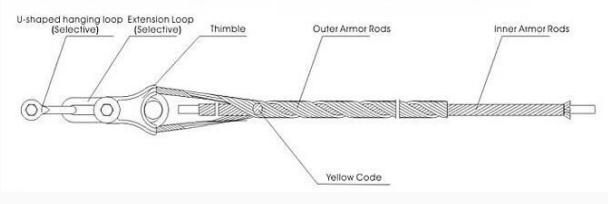

2.Preformed tension clamp for ADSS
Component
Inner armor rods, outer armor rods, thimble, U-shaped hanging loop, extension loop, bolt, nut, etc.
Function
Support full tension strength,connect the ADSS cable to the terminal poles/towers or conjoint poles/towers of the optical cables or poles/towers with larger differences in terms of height.
Preformed Suspension Clamp

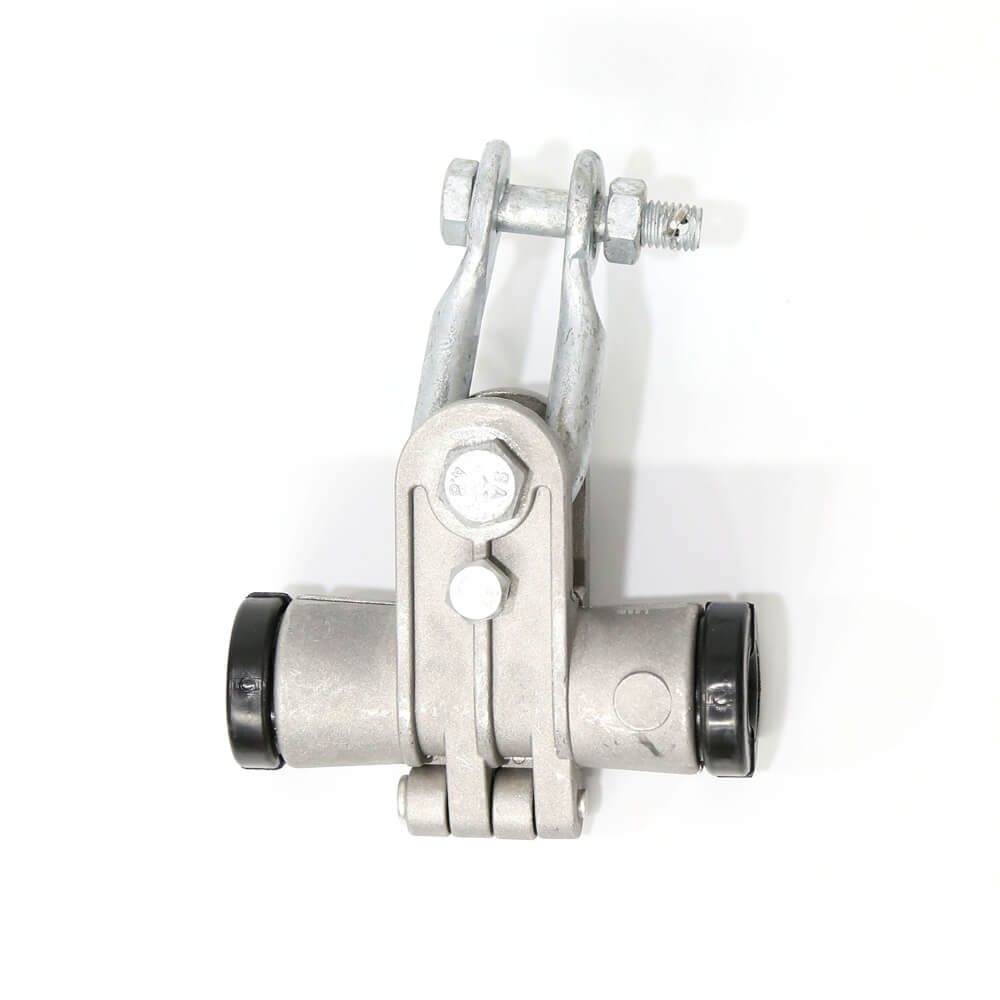

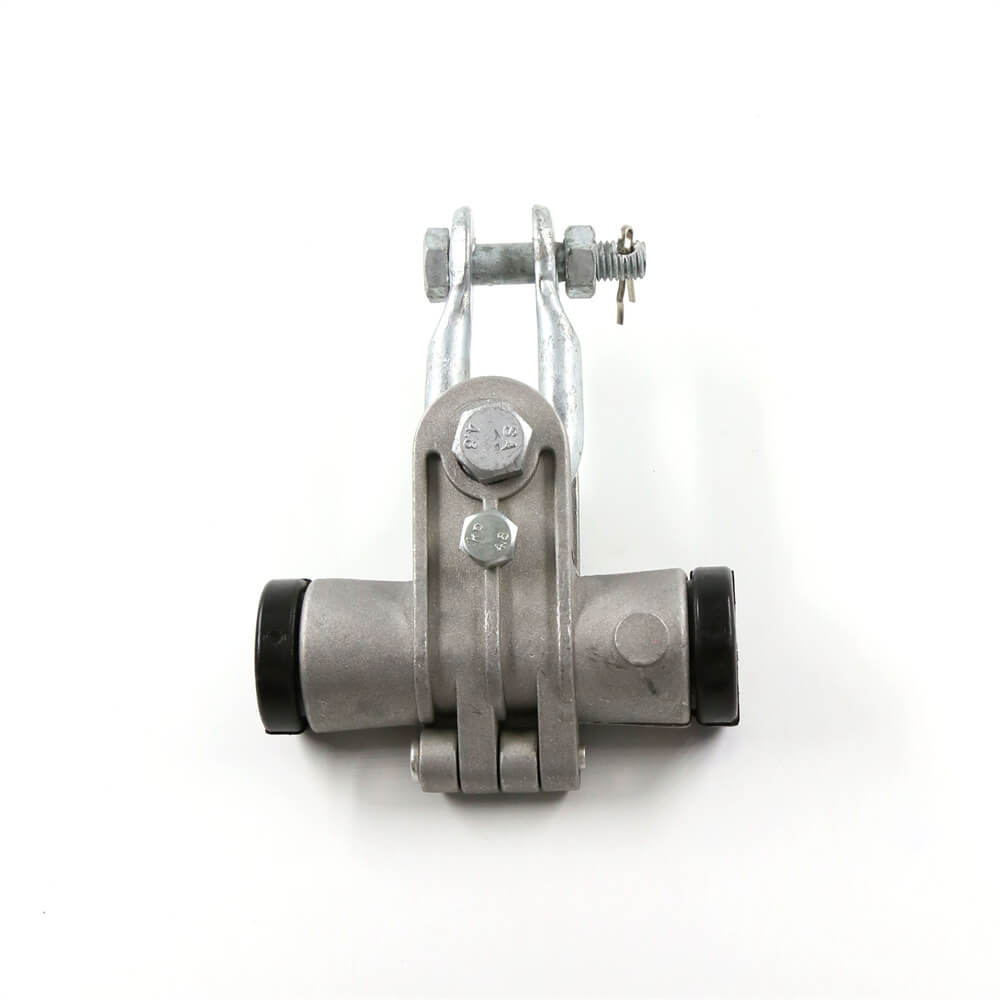

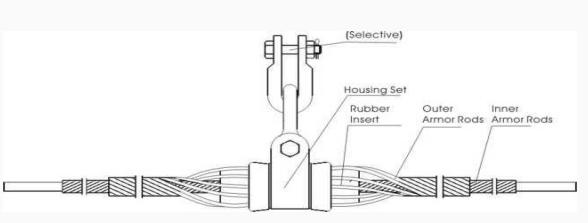

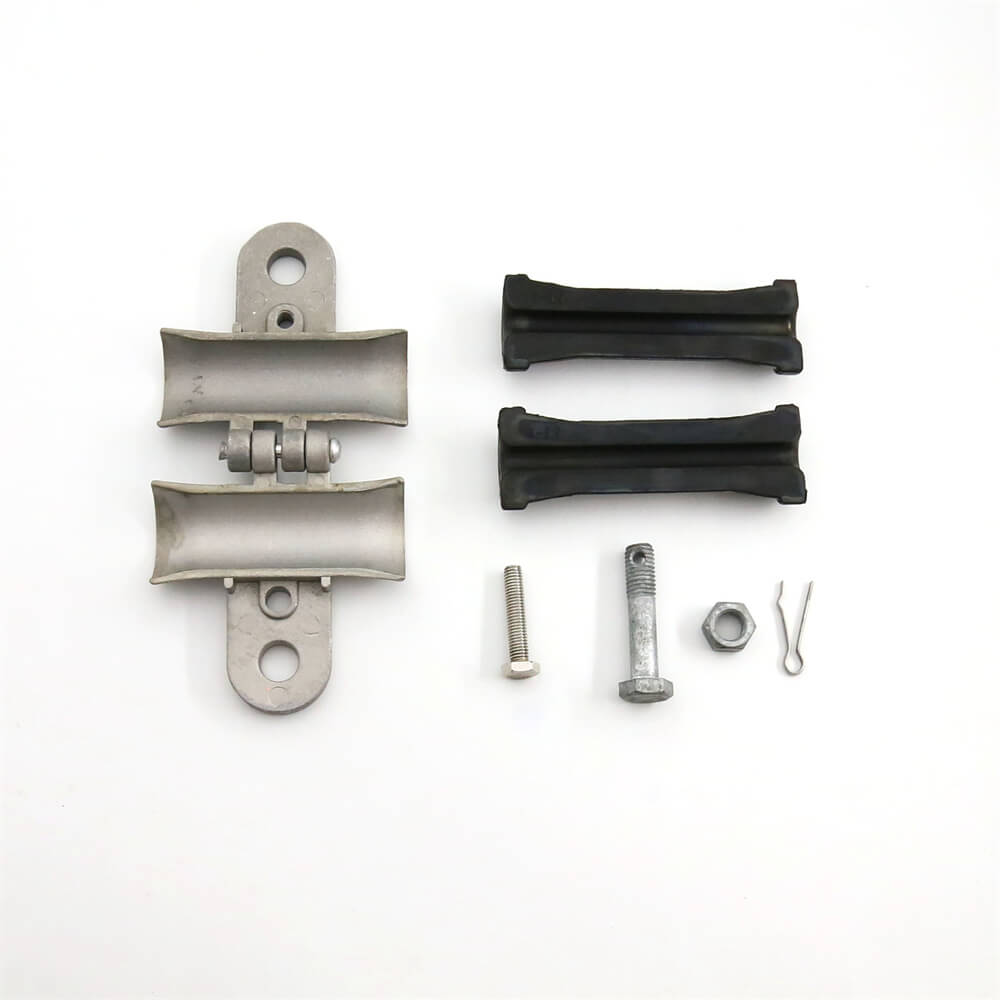

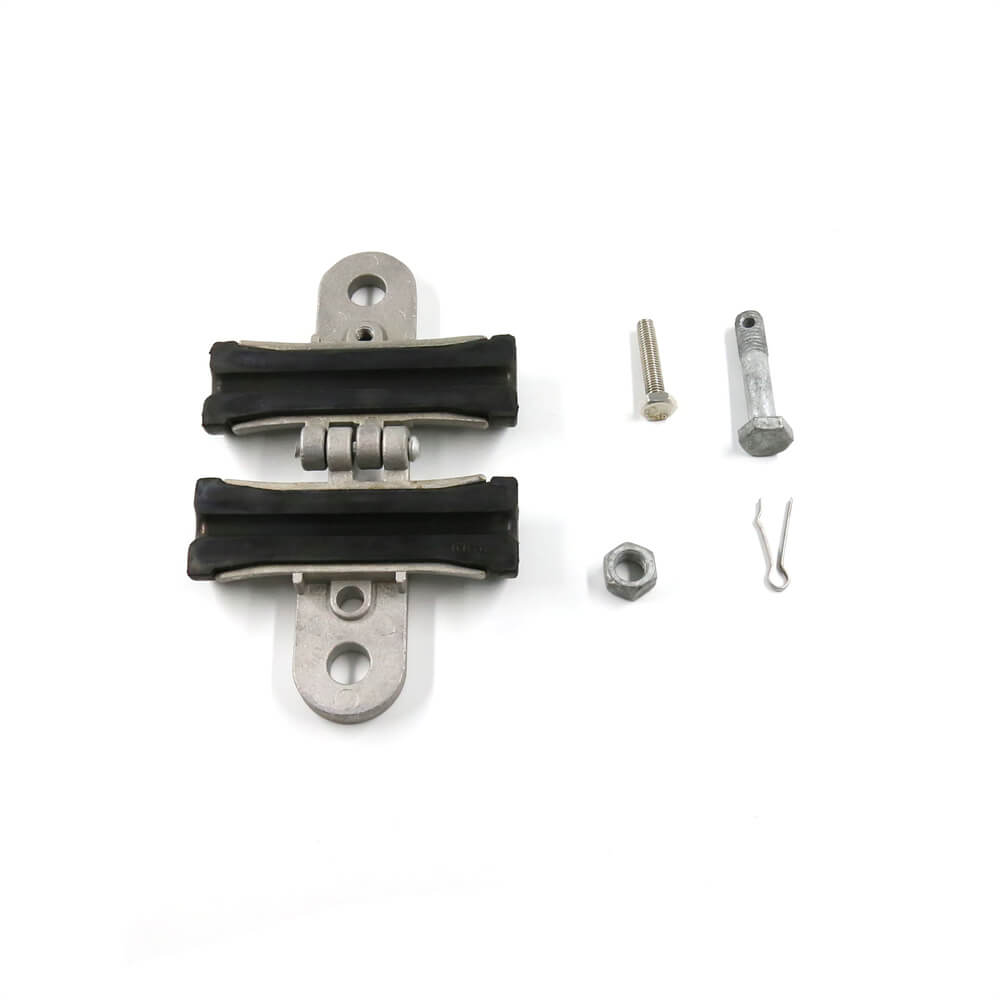

3.Preformed suspension clamp for ADSS
Component

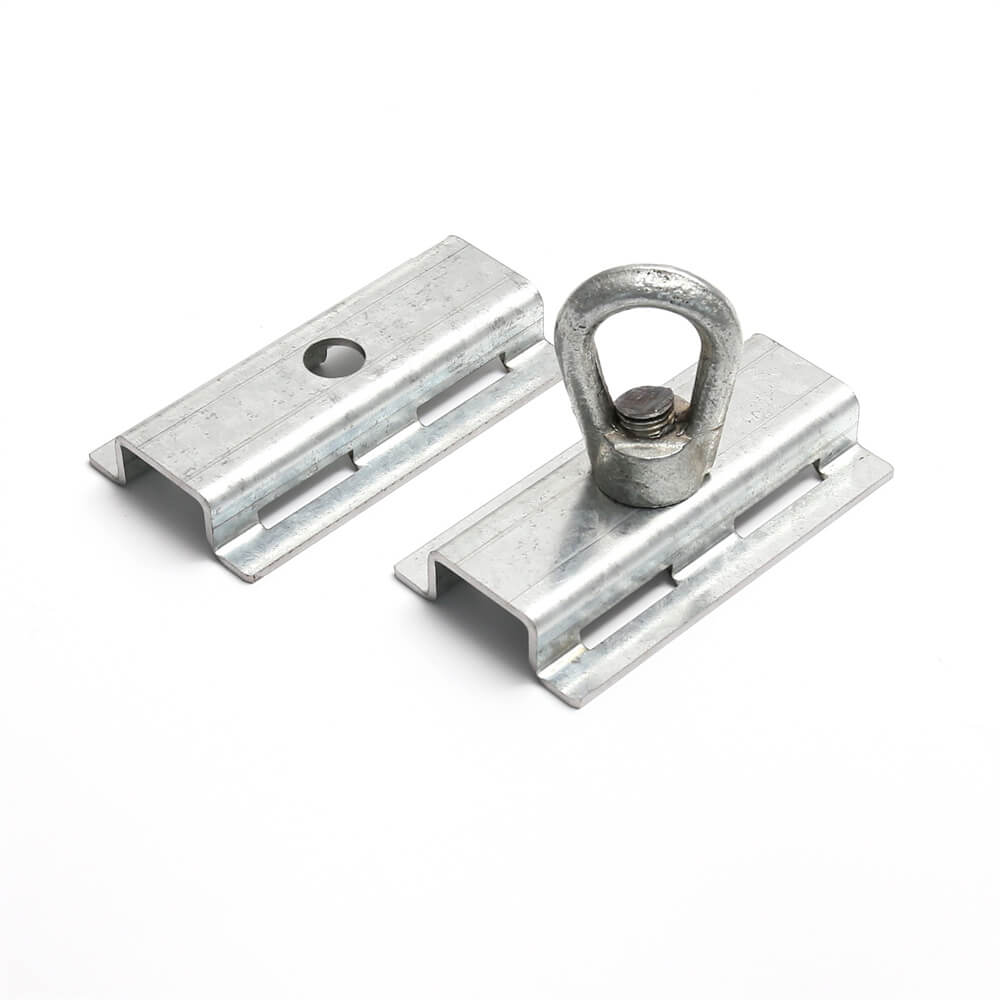

Inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Function
It has higher supporting capability of dynamic stress,suspend the ADSS cable to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.

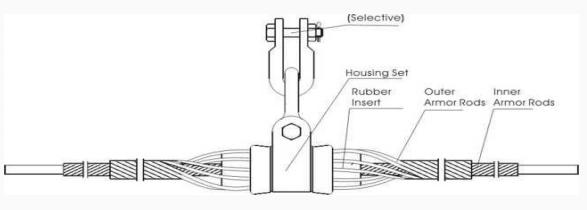

4.Preformed suspension clamp for OPGW
Component
Inner armor rods, outer armor rods, rubber clamp piece, cover shell, right-angle hanging loop, U-shaped hanging loop, bolt, nut, gasket etc.
Function
It has higher supporting capability of dynamic stress,suspend the OPGW to the poles/ towers with corner angle of less than or equal to 25°in straight lines. The angle of single-side suspensions is between 15- 18°.
Frequently Asked Questions (FAQs)
A guy grip is a set of wires which are twisted to add stability to the telecommunication or electric cables,
Guy grip is also called guy grip dead end or preformed guy grip, it comes in different sizes, designs, and options, depending on the unique application requirements.
Guy grips are used for connecting and gripping the conductor, grounding wire and optical fiber application.

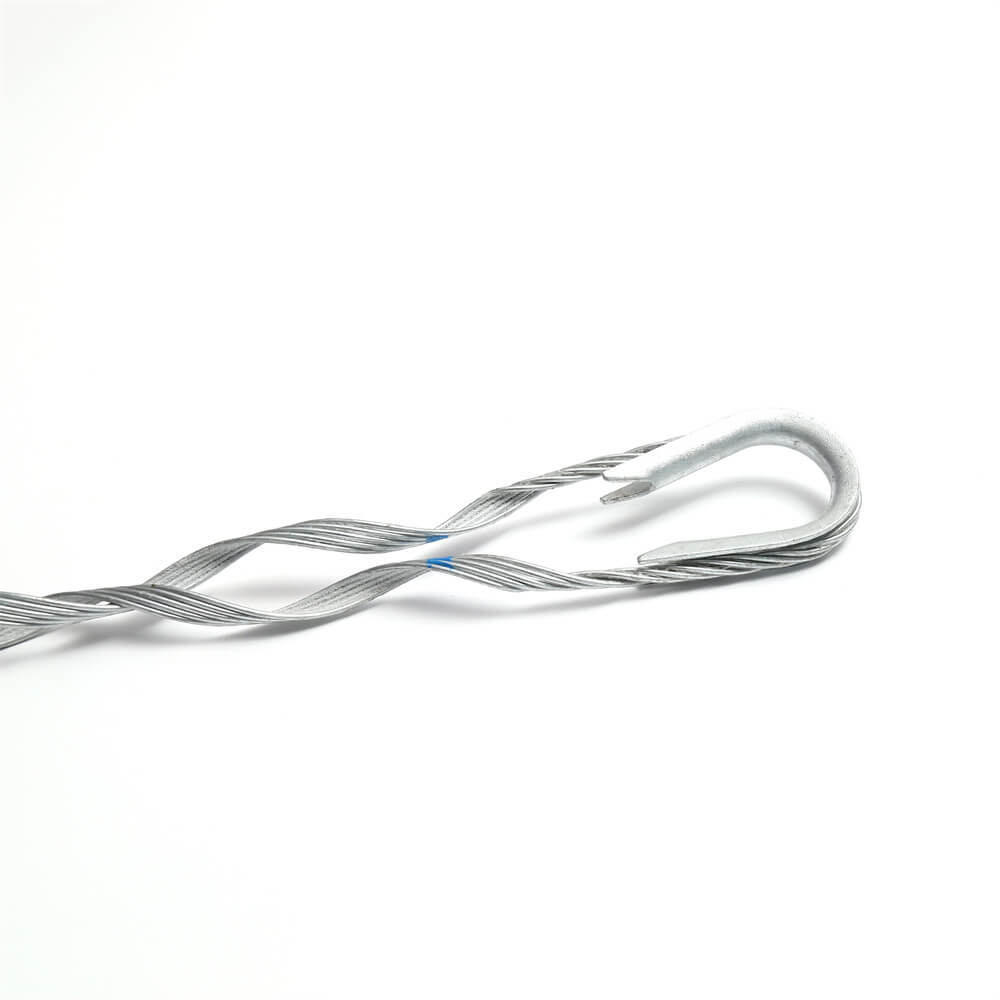

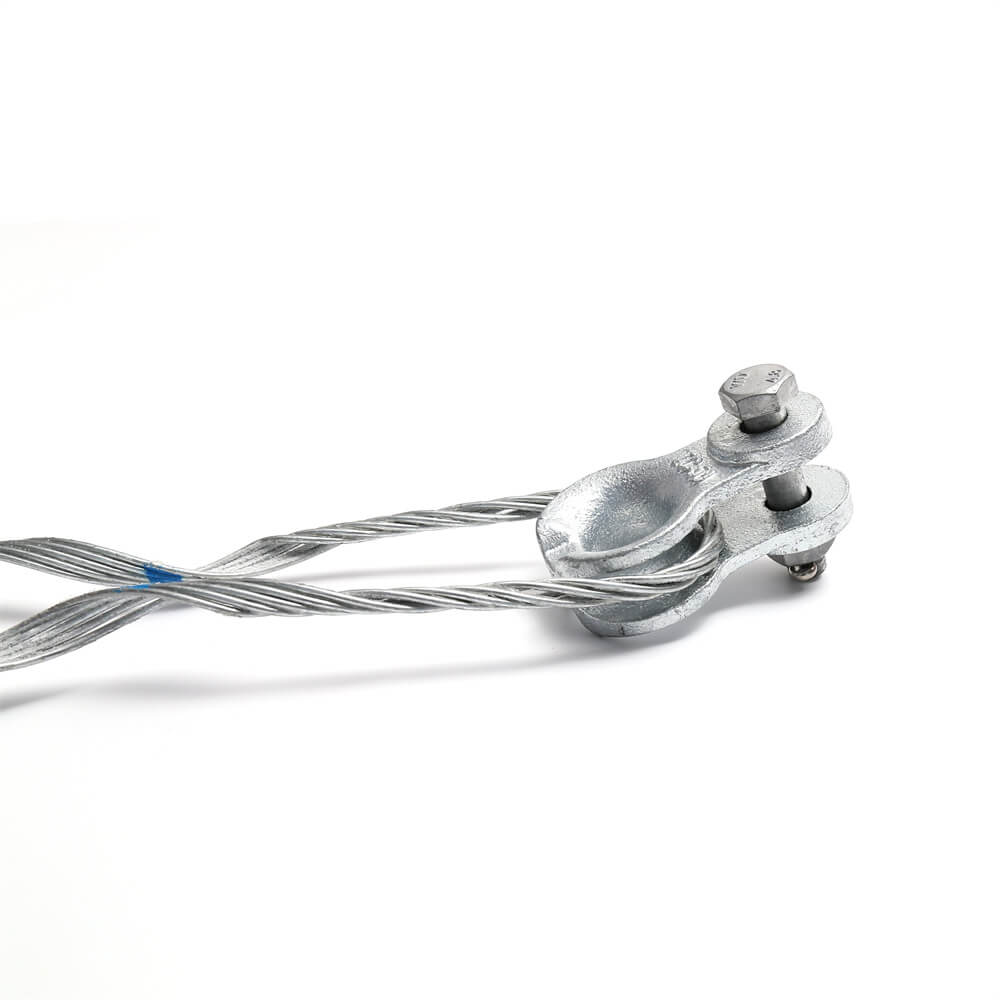

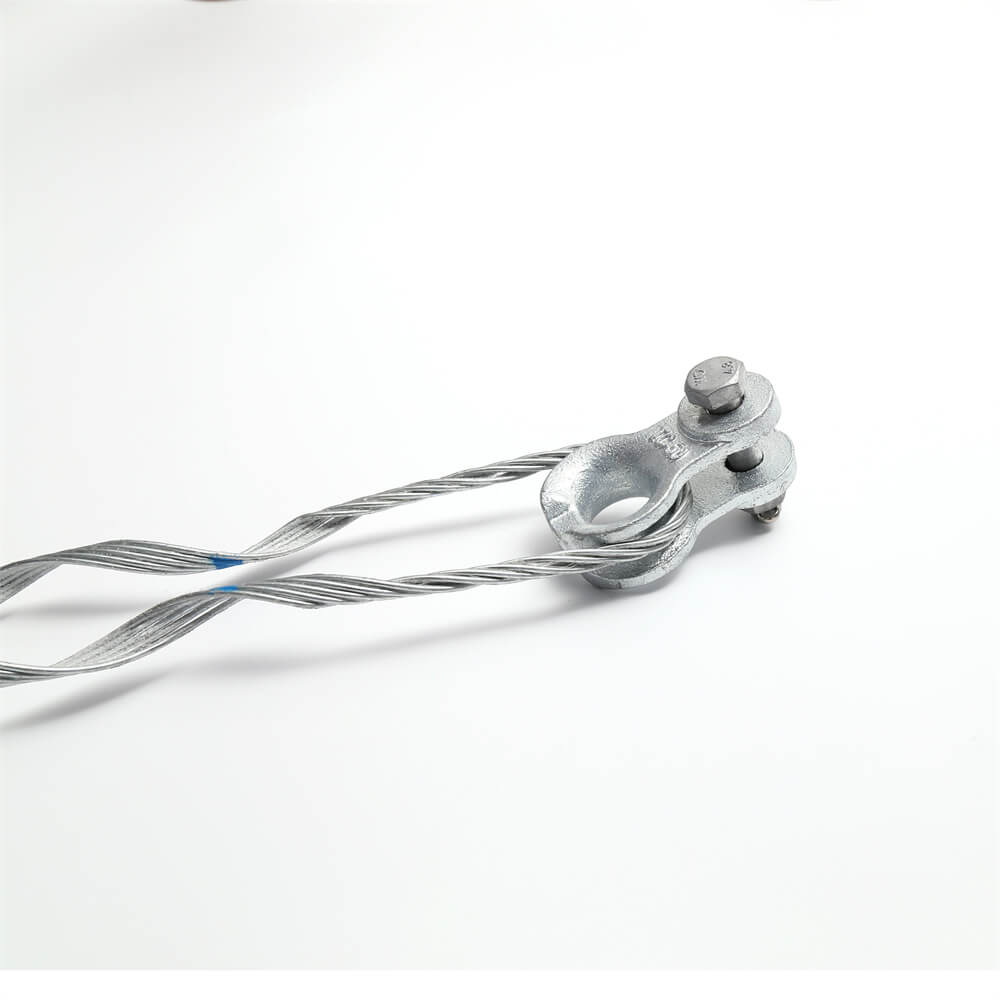

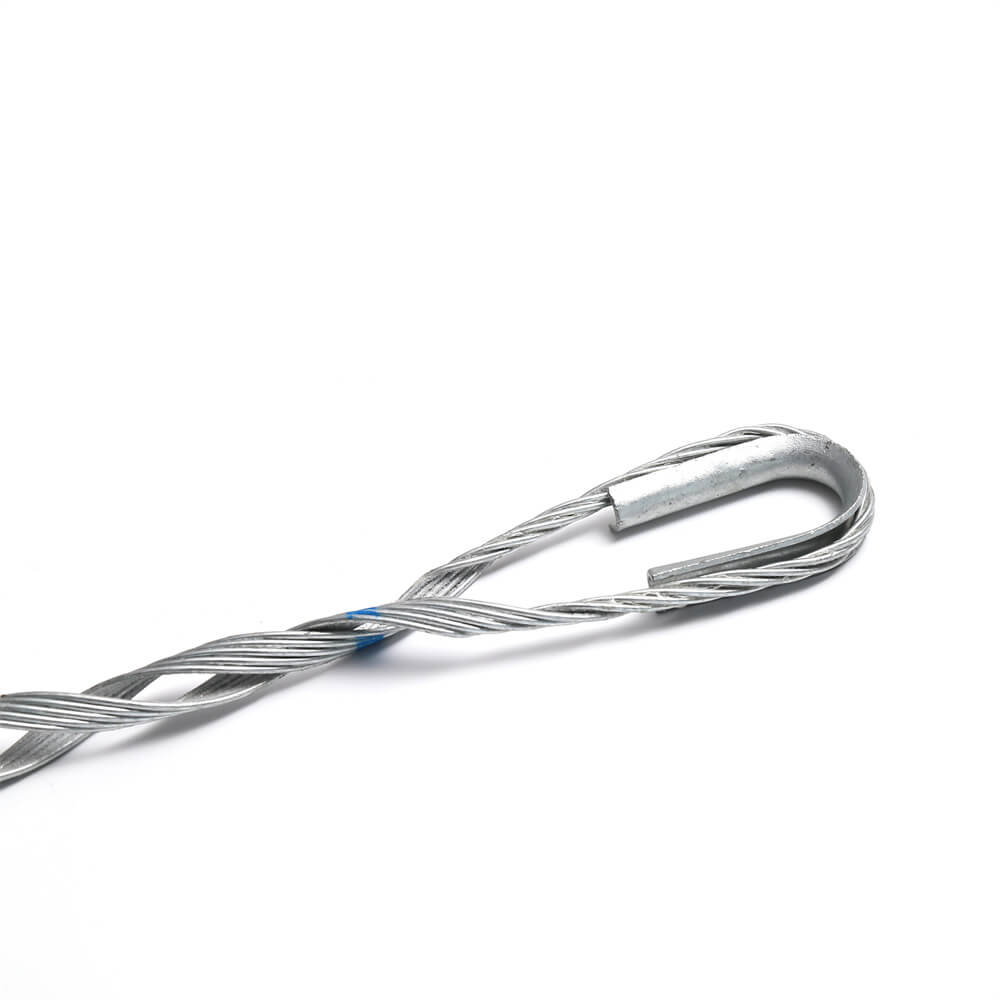

The guy grip is applied by simply wrapping the legs of the guy grip on the conductor, grounding wire or cable by hand. The guy grip two helical legs wrap into an empty tube, the preform grip head will be closed as a circle.
When the guy grips dead end wrap on the conductor or stay wire, there will be strong grip strength to avoid the slip between guy grip and conductors.
The closed circle will be joined with anchor rod or insulators on pole or tower.
According to the application, guy grip dead end clamps are used to connect the anchor rod on the pole end or wrap the conductor on the tower or join the grounding wire.
The raw materials of the preformed guy grip are aluminum wire, galvanized steel wire or aluminum clad steel wire.
CrownWealth preformed guy grip dead end is made of the same material as to which they are applied.

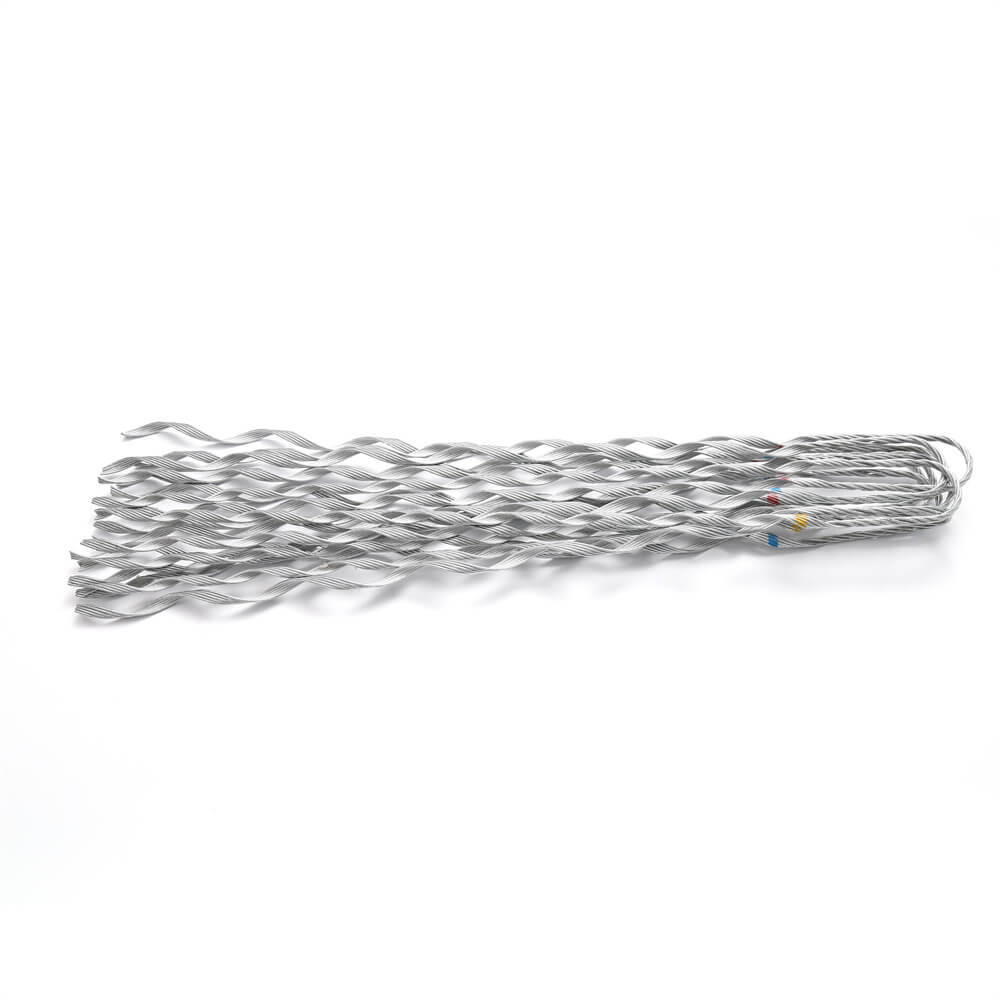

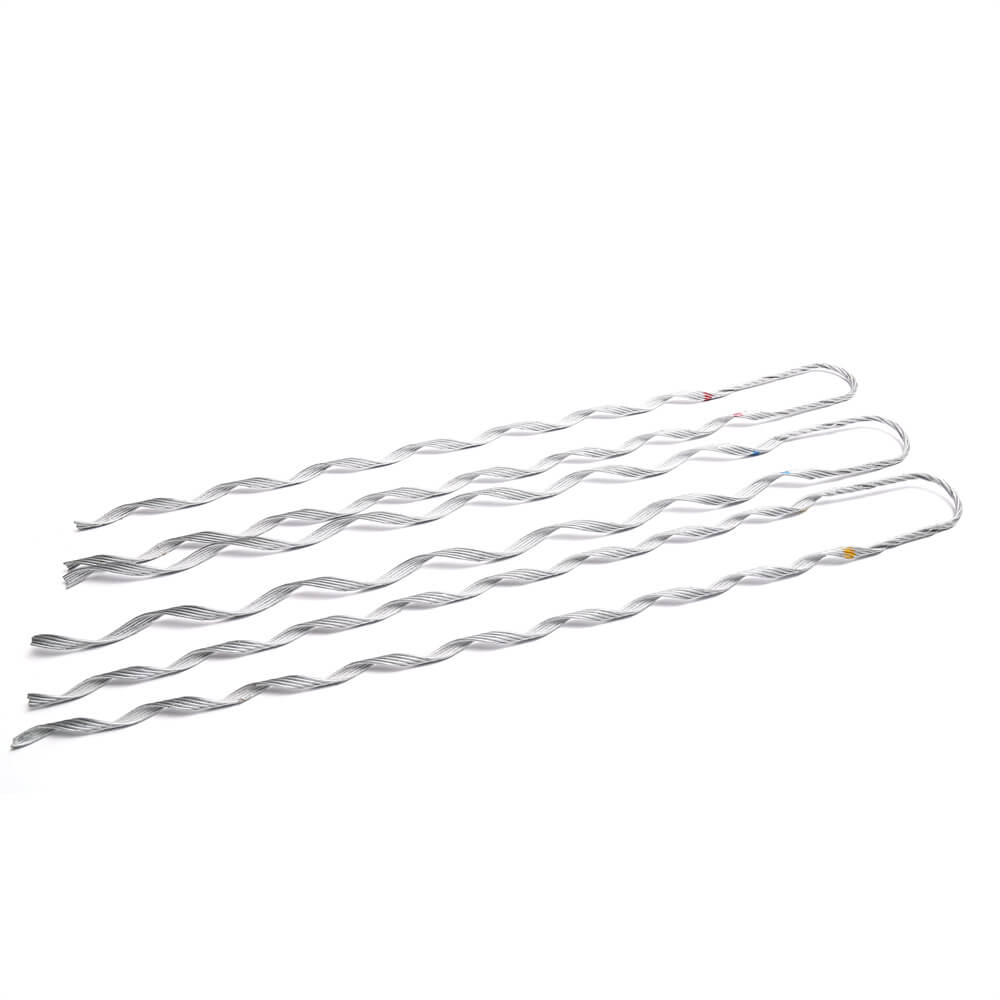

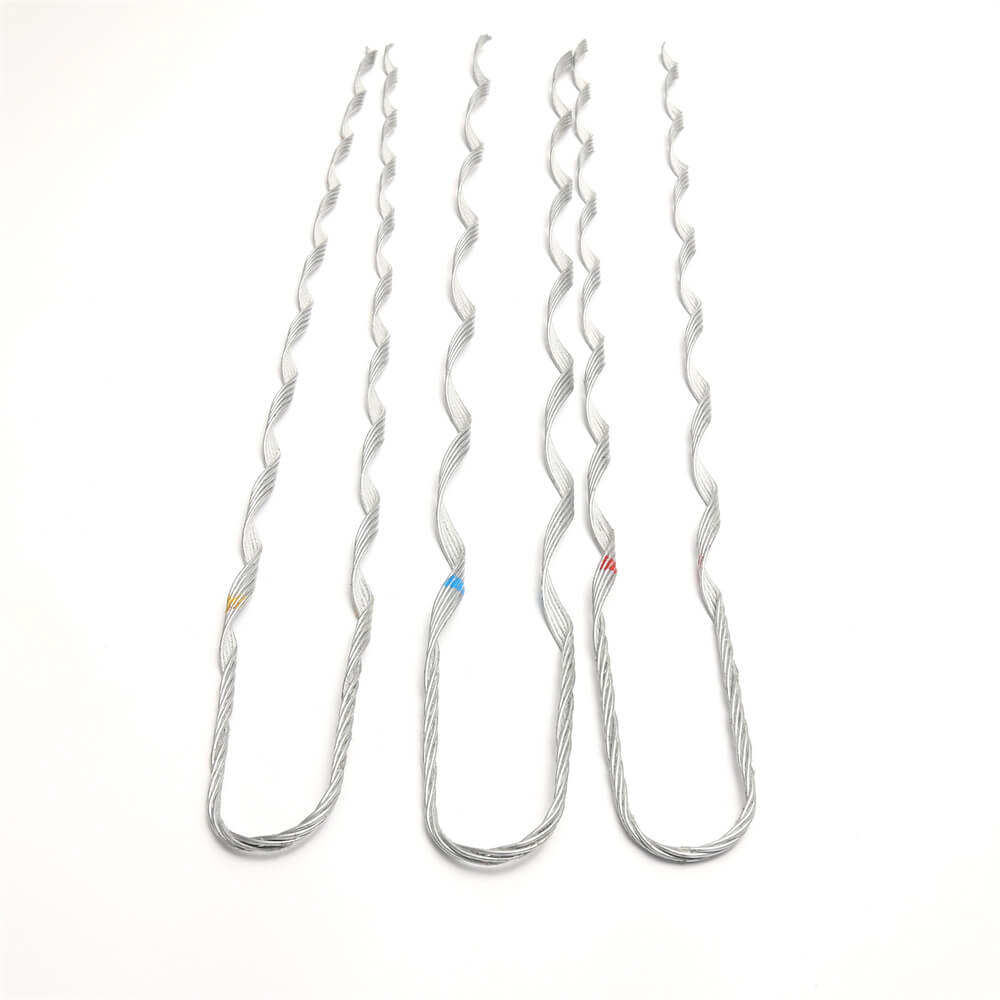

There are color codes on each guy grip dead end clamp, helping in easily sizing the conductor. CrownWealth preformed grip has left or right two lay directions.
- Cutting aluminum or steel wires into an ideal length, then perform them into the helical shape.
- After bundling or packing together steel wire pieces with a cable tie, dip the bundled wire in glue. When wire glue is dry up, cutting off the cable’s tire, then dip all the wires in glue again.
- Spray sanding is done within the helical wire.
- Make the middle part of the wires to stand and bent into two legs.

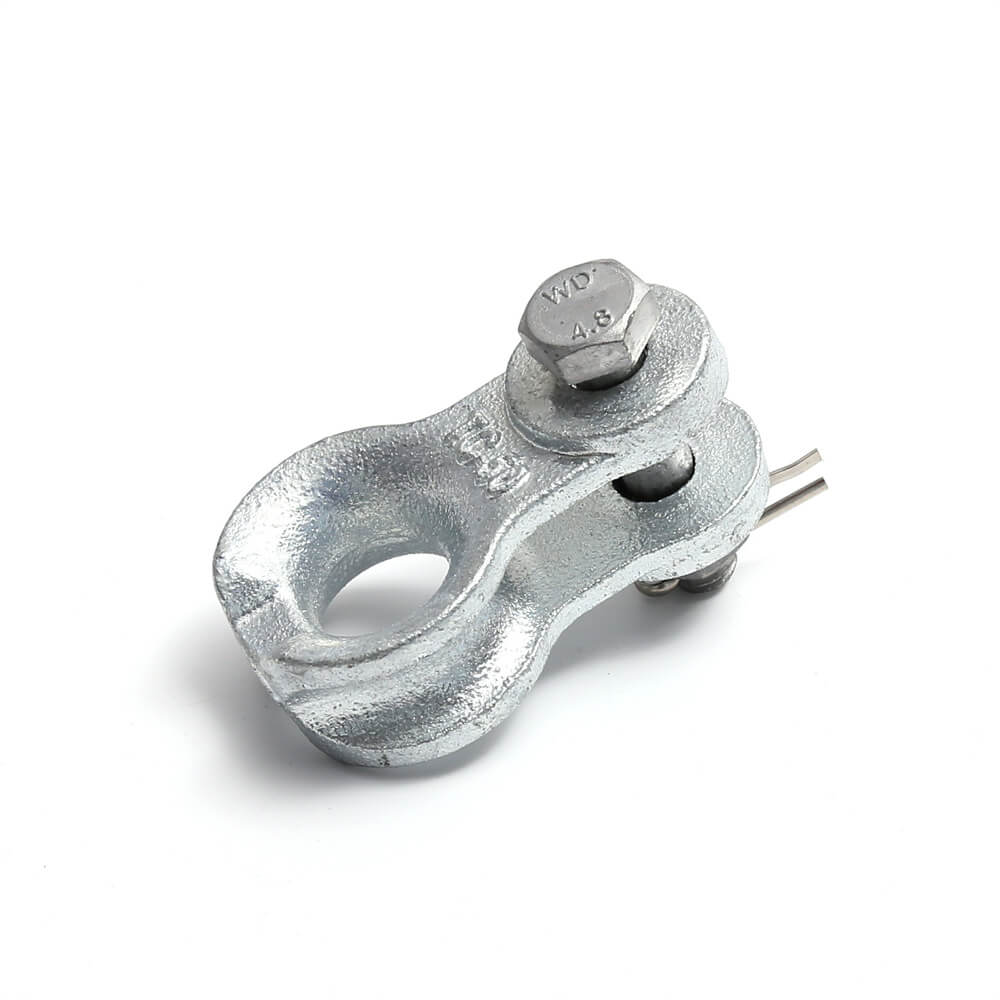

- Install the thimble clevis and insert one leg of the preformed guy grip.
- Make the two legs of the guy grip dead end parallel with the cable. Make a color label on the cable and The guy grip color mark fit the label on the cable to grab the legs of the guy grip.
- Continue grabbing the guy grip dead end to ensure the cable is fully wrapped by the preformed grip.

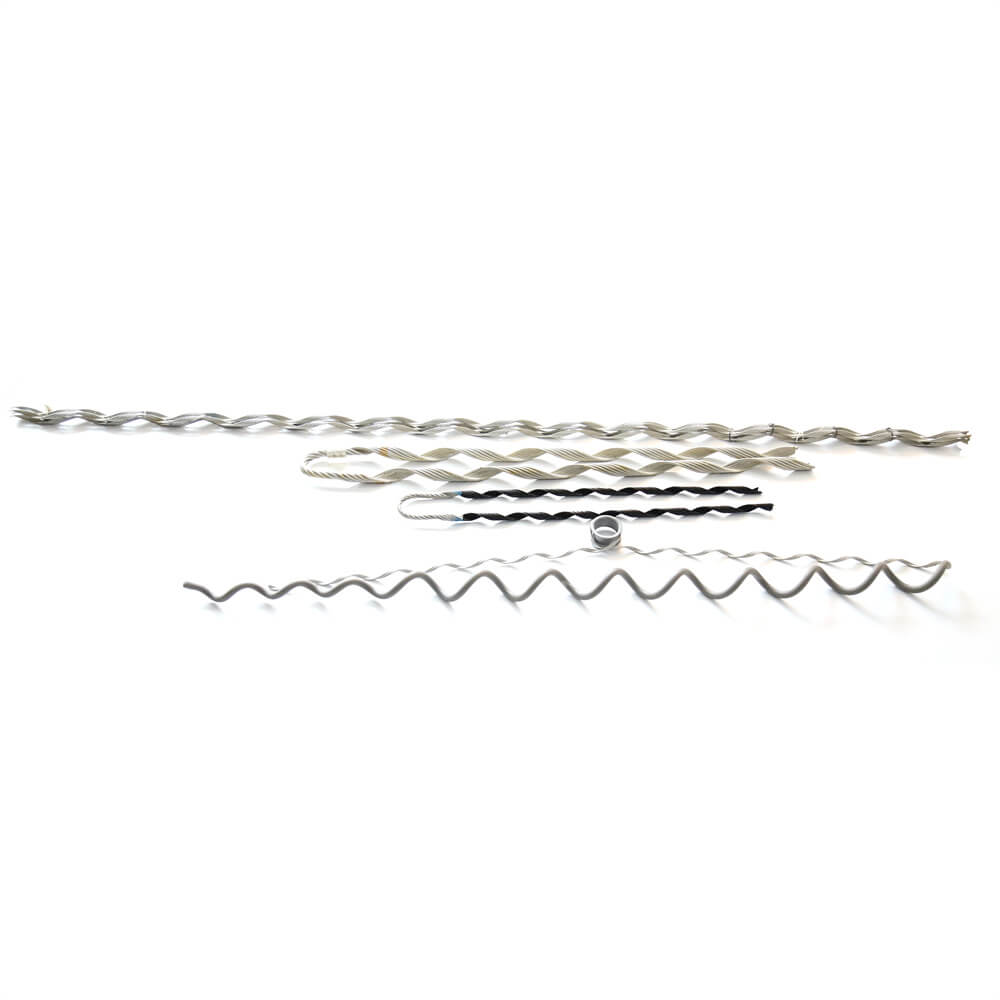

Gallery of Guy Grip & Accessories
Gallery of Guy Grip & Accessories
