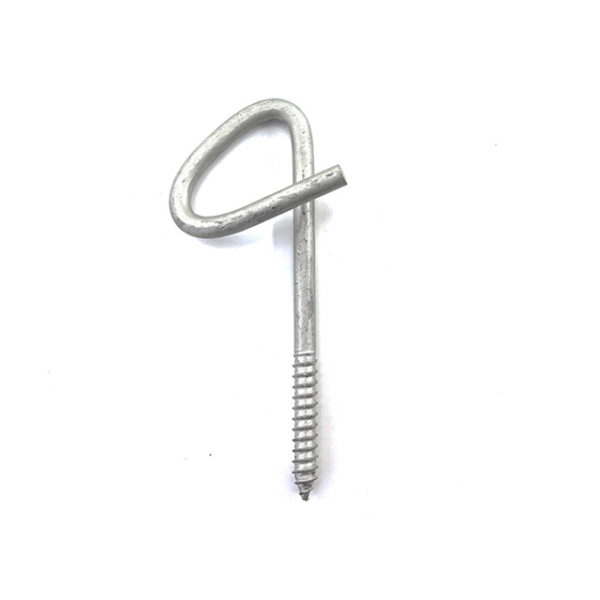

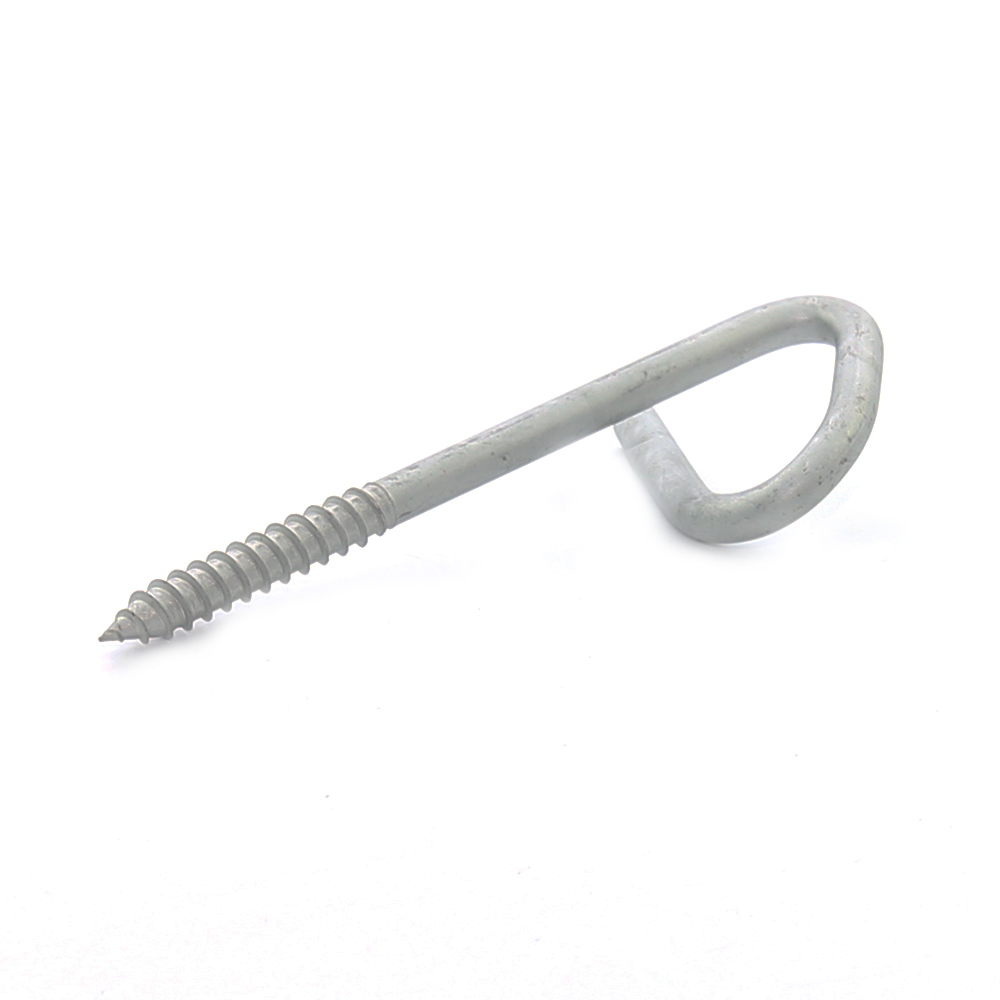

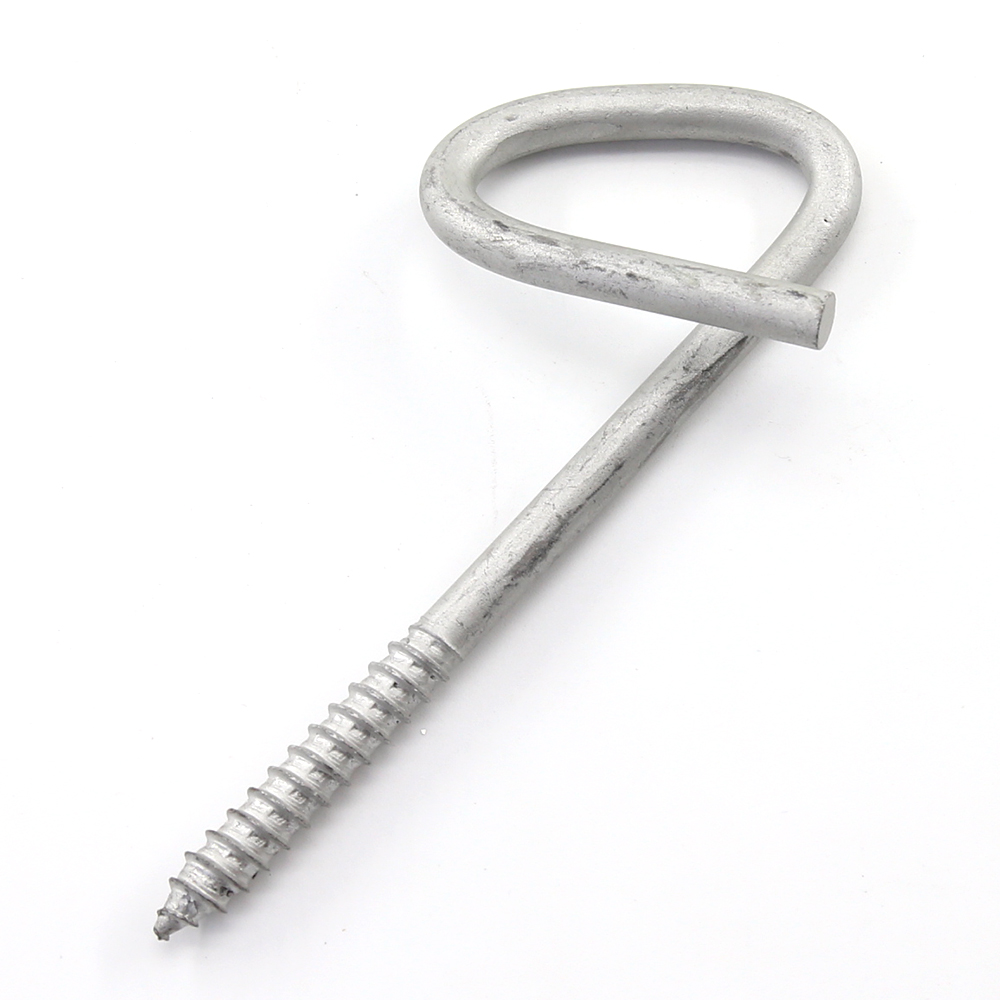

P House Hook
P House Hook wasdesigned to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
Description
P House Hook was designed to secure CATV drop cable to the side of a subscriber’s house by either accepting the bail of drop wire clamps or by wrapping the support wire of drop cable around the screw eye.
Main Features:
- Used to support drop wire clamps, dead end clamps, and service drops on utility poles and buildings.
- Manufactured with curved upward “fetter” type thread that can be either wrenched or driven.
- The knurled ring was provided to ensure proper driving depth.
- Support wire of drop cable around the screw eye.
- Formed from AISI 1016 Steel.
- P House Hooks are mechanically galvanized to meet ASTM Specification B695, Class 50, Type 1.
Specifications:
| Parts No. | Description | Material | Size |
|---|---|---|---|
| CW-PH01 | P House Hook | AISI1016 | 3/16″x3-3/4″ |
| CW-PH02 | 3/16″x4-1/2″ | ||
| CW-PH03 | 1/4″x4-1/2″ | ||
| CW-PH04 | 5/16″x5-1/2″ |
Packaging
